  • About this Facade Design Project:

    Contrary to the popular belief that facade design is primarily about material selection, we argue that controlling sightlines, light, and spatial relationships holds greater significance.

    This project, directly opposite an electrical substation, underscored this principle.

    To mitigate the visual impact of the substation, we exploited the building's trapezoidal shape and rotated windows to redirect views.

    The facade was maximized with glazing, subject to municipal regulations, and complemented with planters for visual control.

    The existing roof overhang was replicated on all floors, providing shade and rain protection, especially for the north-facing facade.

    Security concerns on the ground floor necessitated a full-height fence which was integrated into the overall facade design, with vertical elements carried through to the upper floors.

    an apartment in Ostad Moein st.

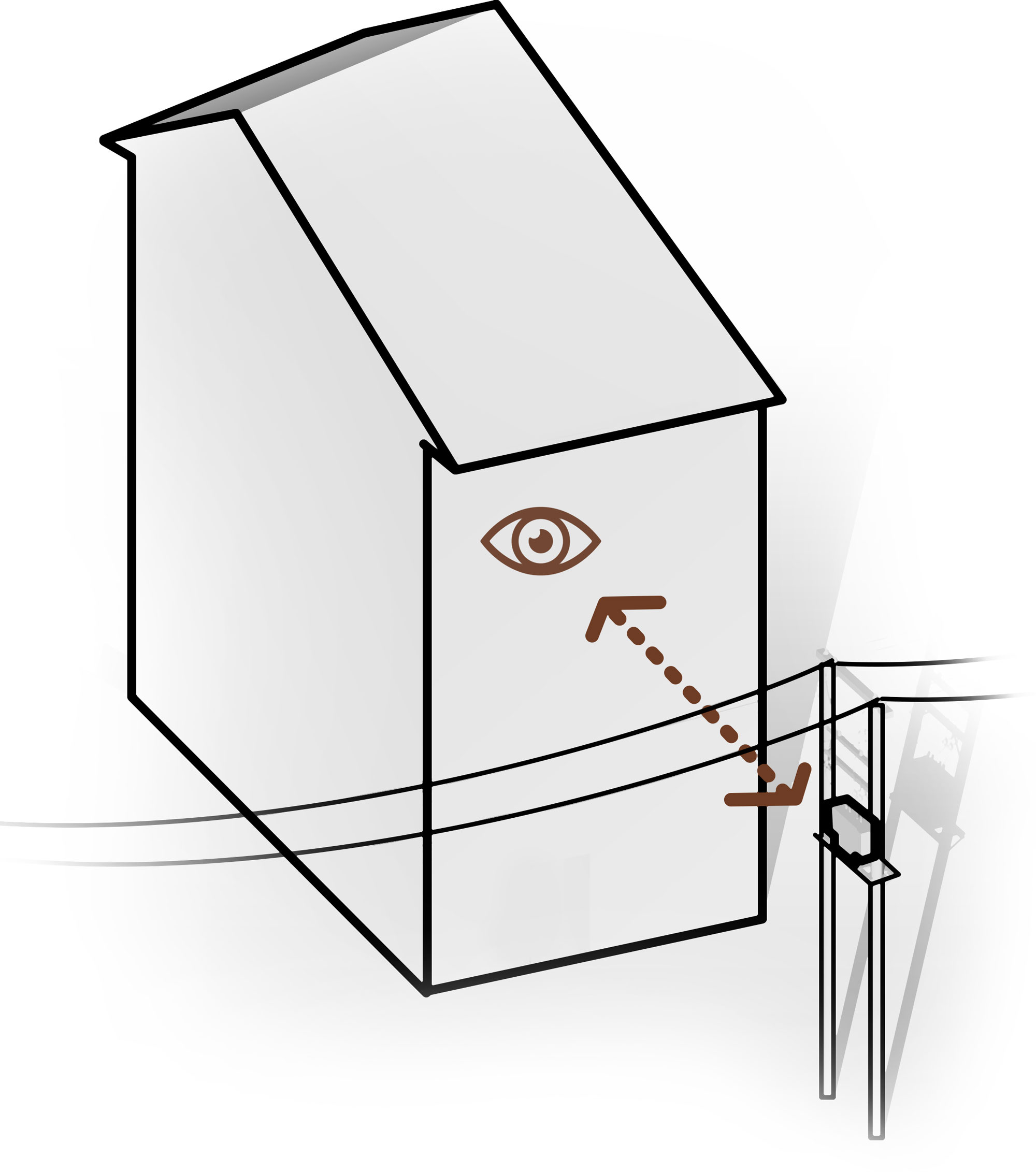

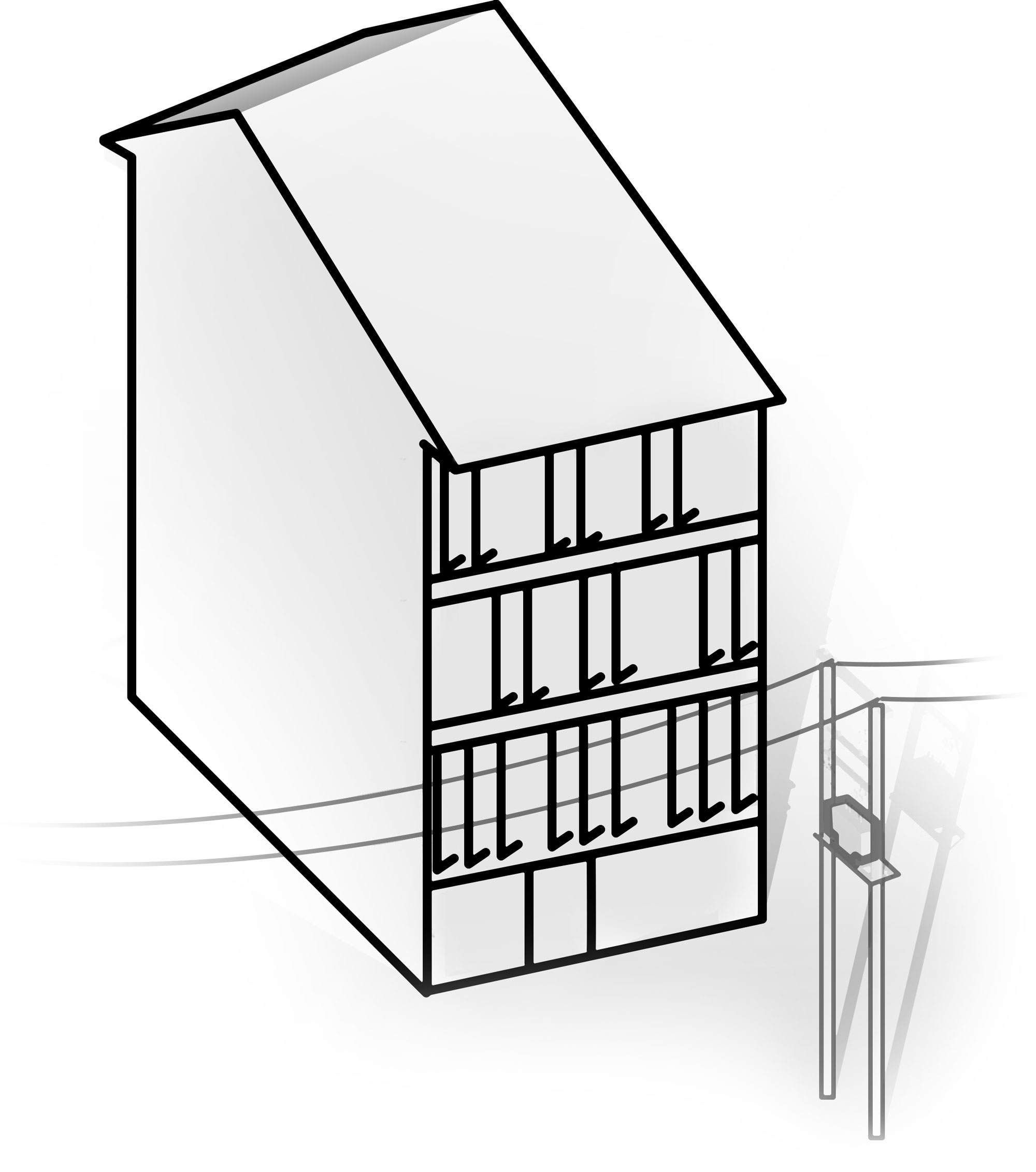

  • diagram 1, an apartment in Ostad Moein st.

    initial state


    The project was directly confronted by an electrical substation.

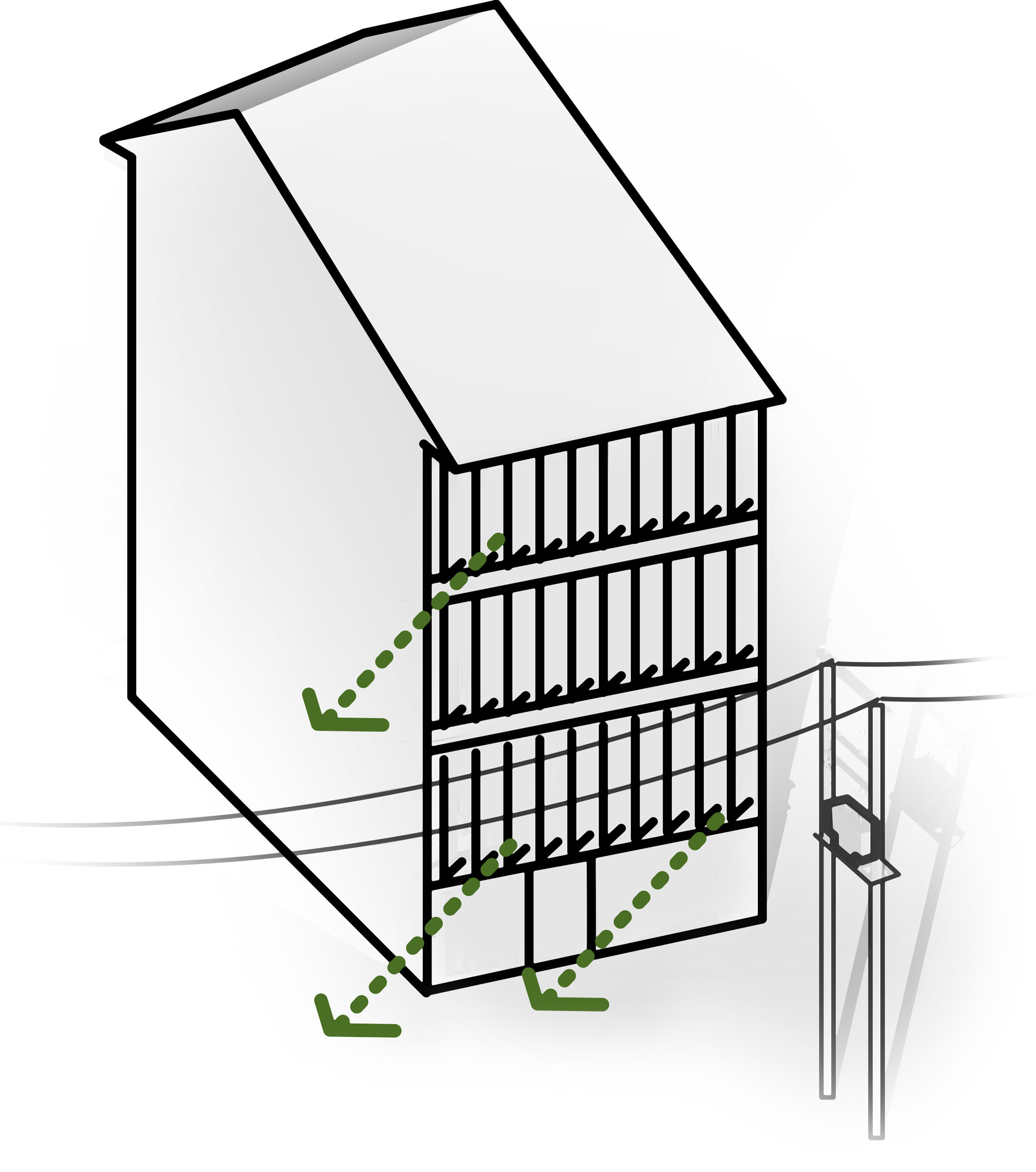

  • diagram 2, an apartment in Ostad Moein st.

    Step 1: Visual Axis Control


    To reorient the visual axis, we carefully designed the facade elements to shield the view from this undesirable element (electrical substation) .

  • diagram 3, an apartment in Ostad Moein st.

    Step 2: Creating Visual Variety


    A dynamic facade was achieved through varying the quantity and arrangement of facade elements across different levels.
    Ground floor elements were more densely clustered and often combined with fencing for security purposes. Upper floors featured a more open and airy composition.

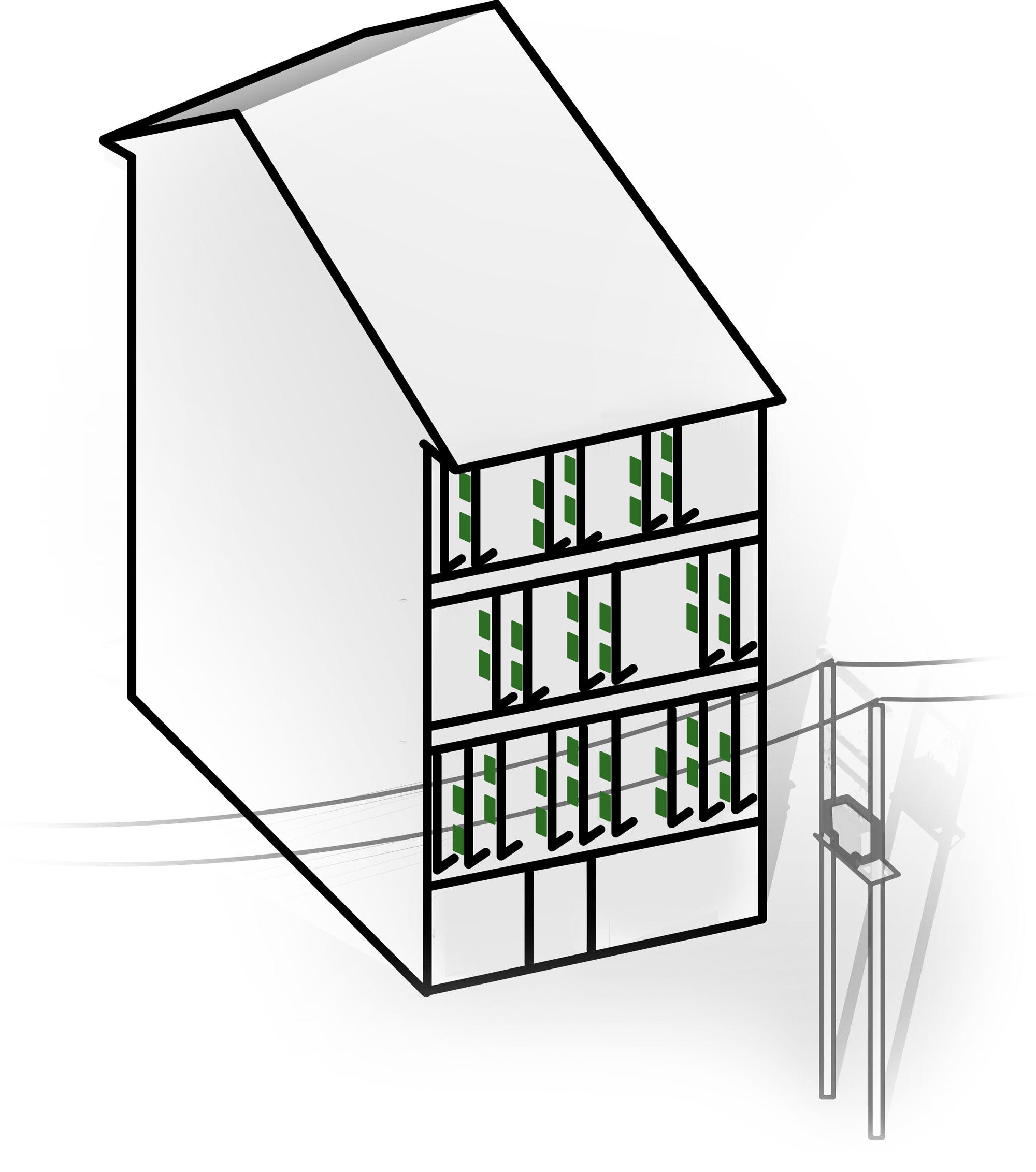

  • diagram 4, an apartment in Ostad Moein st.

    Step 3: Revitalizing the facade with nature


    A dynamic facade was achieved through varying the quantity and arrangement of facade elements across different levels.
    Due to the lack of a natural view opposite the building, we chose to enrich the facade by creating an artificial green landscape. The use of plants and flower-boxes not only offers residents a pleasing visual experience but also gives the building a unique identity.

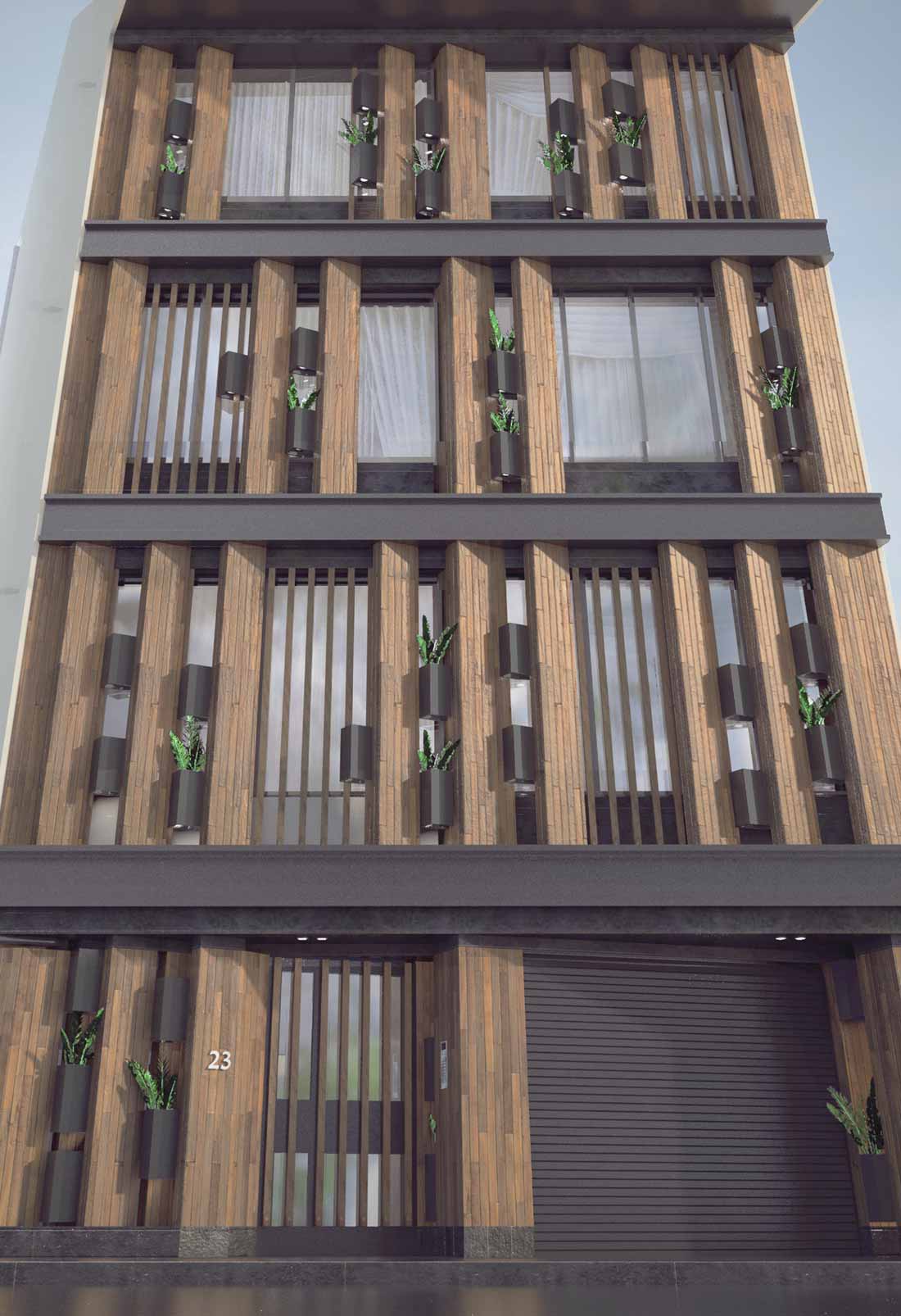

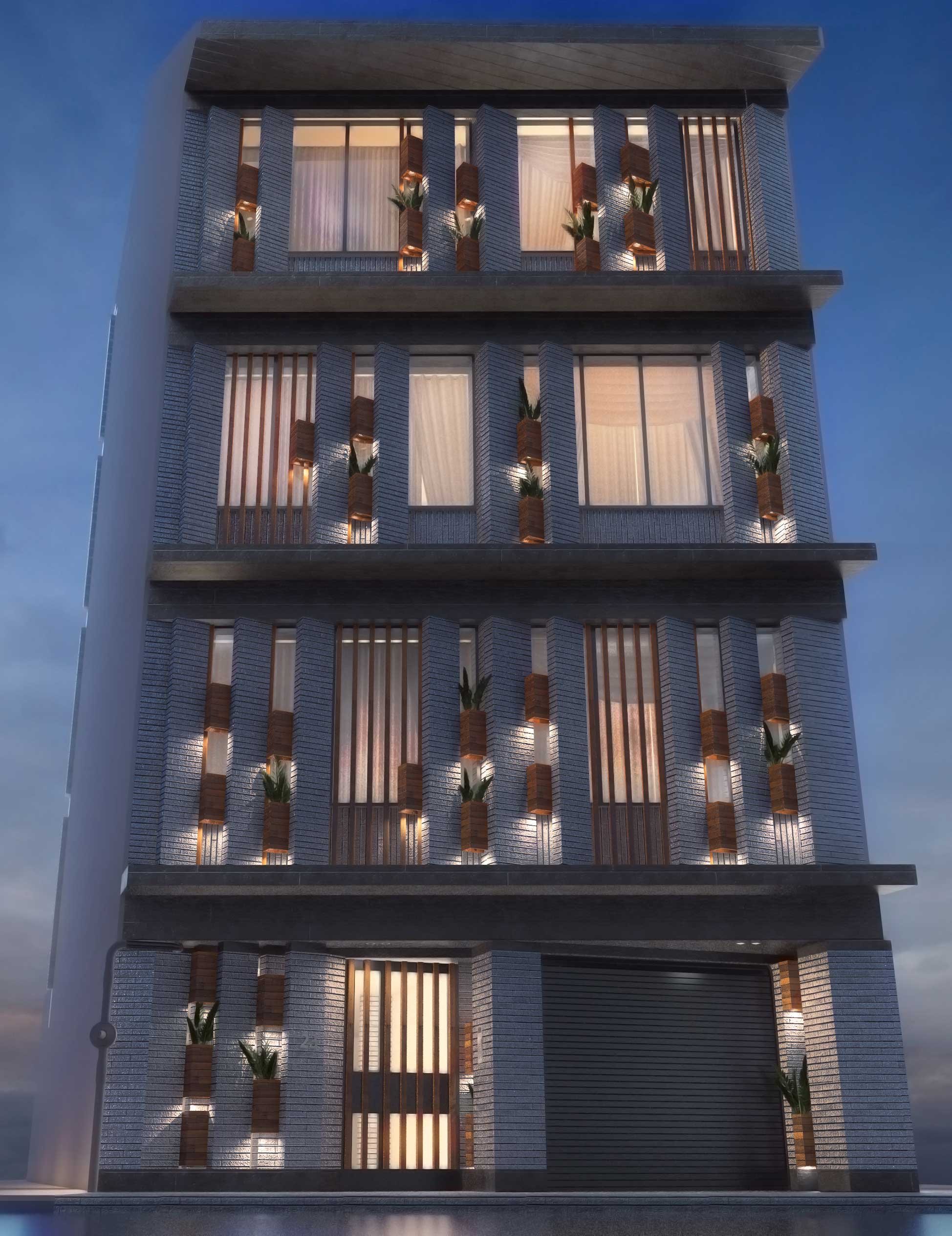

  • main render, alt 1, an apartment in Ostad Moein st.

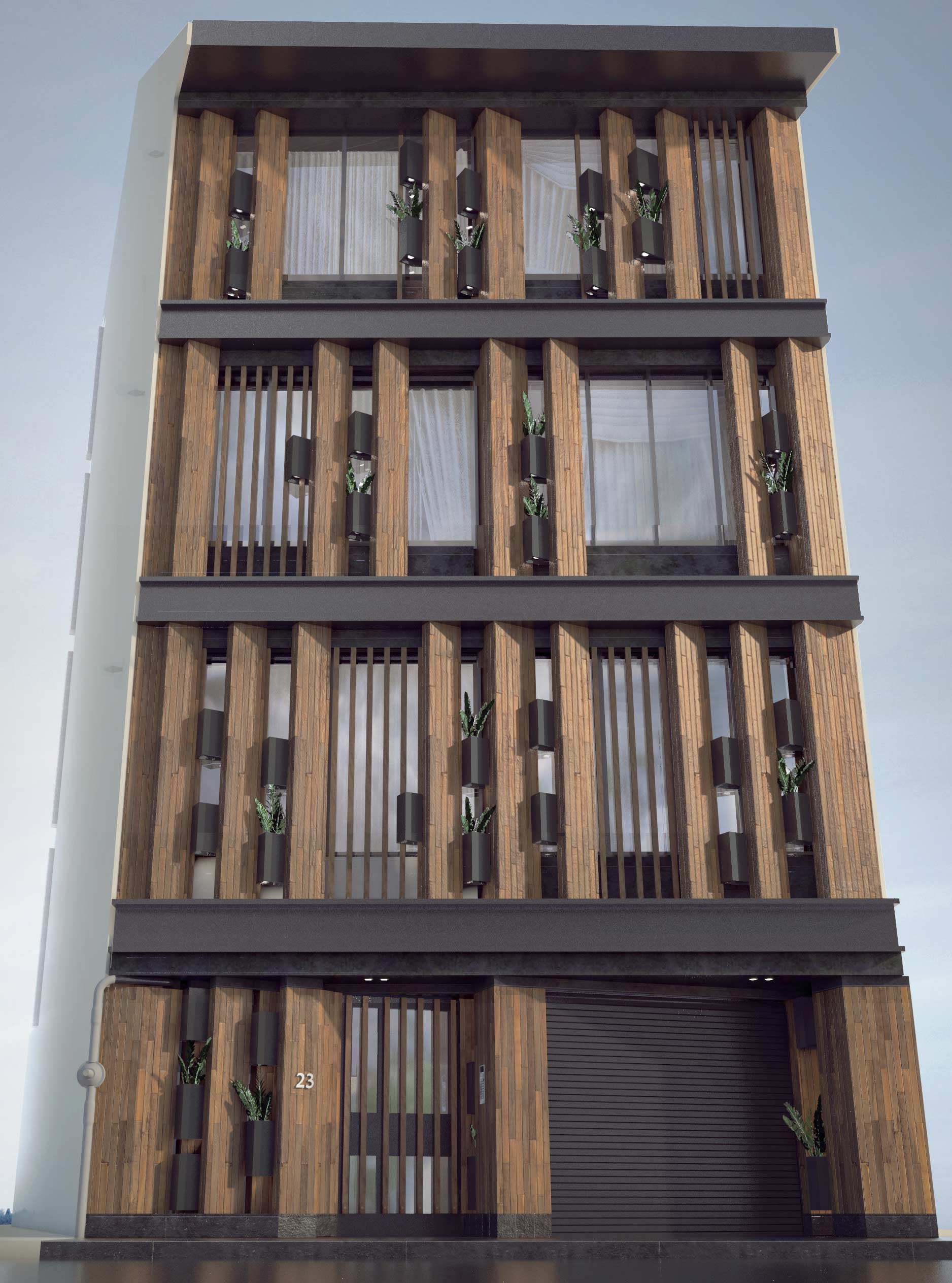

  • main render, alt 2, an apartment in Ostad Moein st.

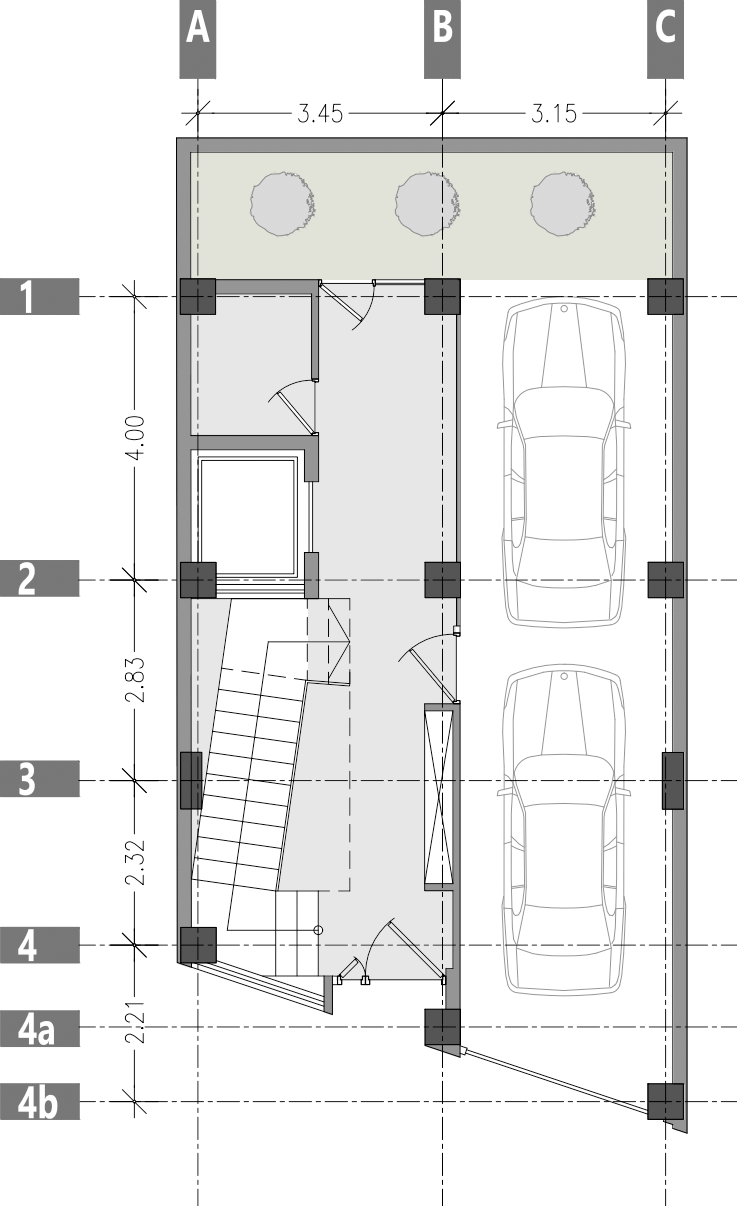

  • ground floor plan, an apartment in Ostad Moein st.

    ground floor plan


    floor plans does NOT designed by us

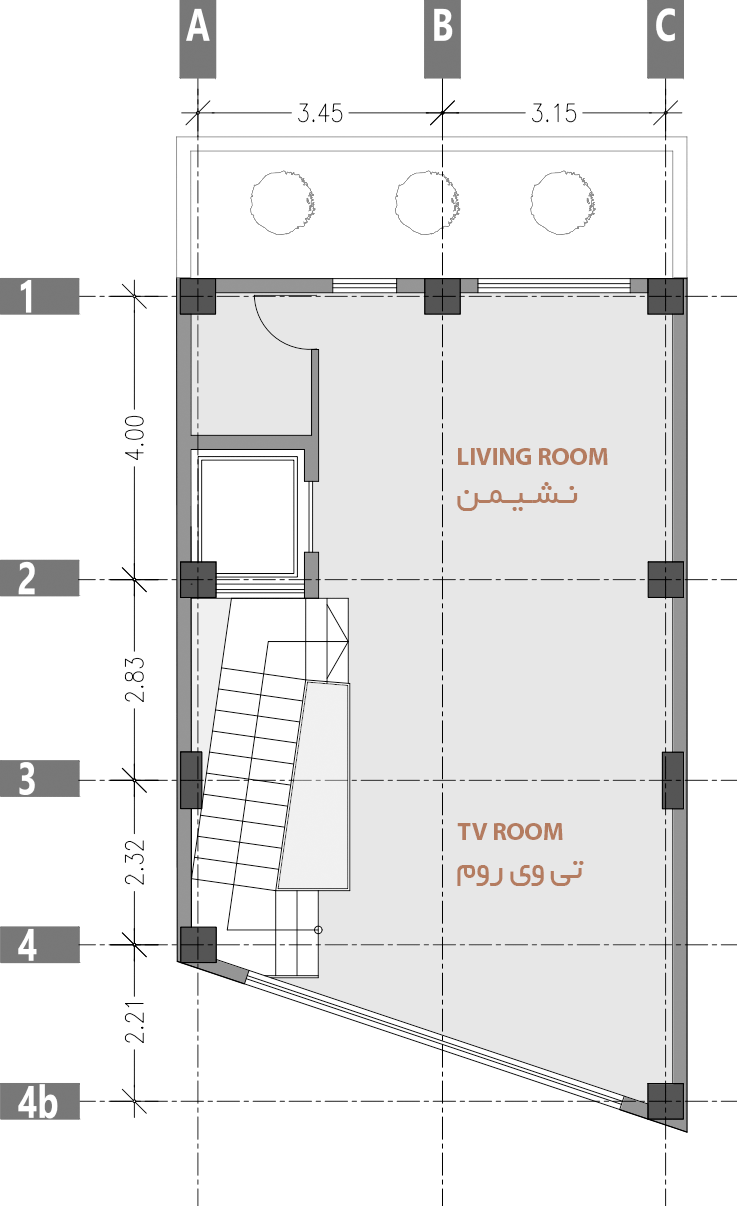

  • first floor plan, an apartment in Ostad Moein st.

    first floor plan


    floor plans does NOT designed by us

  • second floor plan, an apartment in Ostad Moein st.

    second floor plan


    floor plans does NOT designed by us

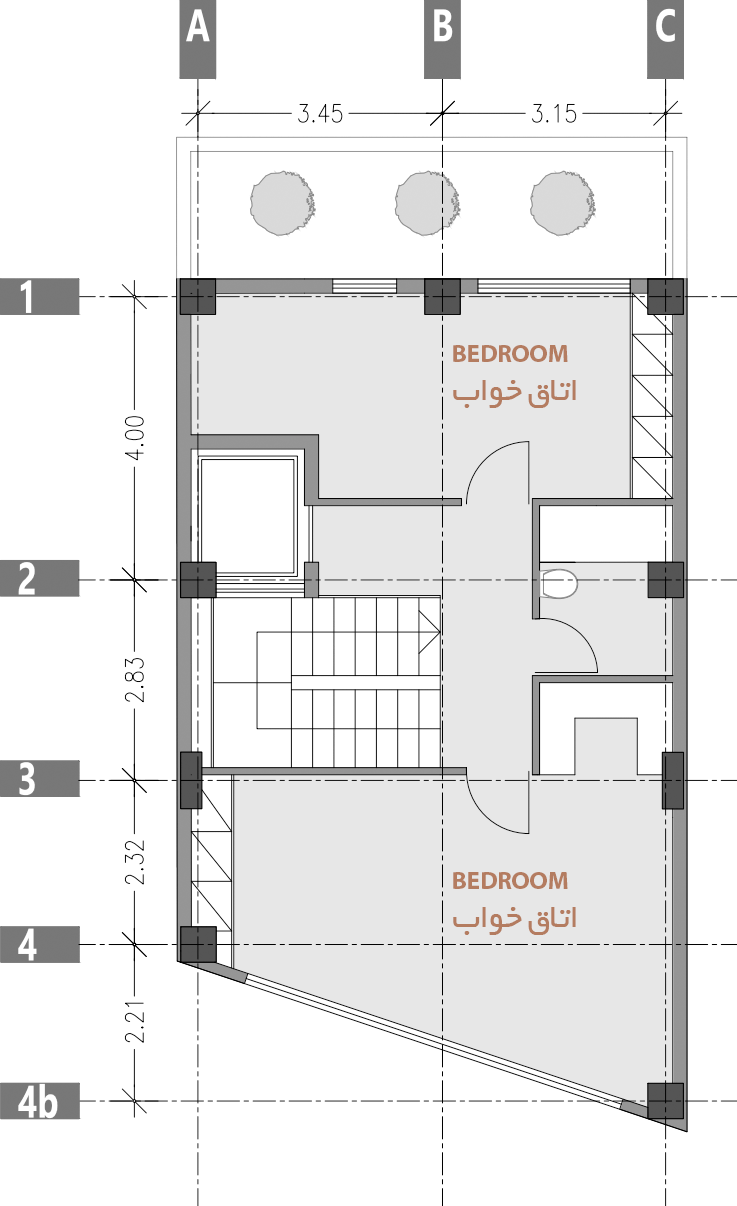

  • third floor plan, an apartment in Ostad Moein st.

    third floor plan


    floor plans does NOT designed by us

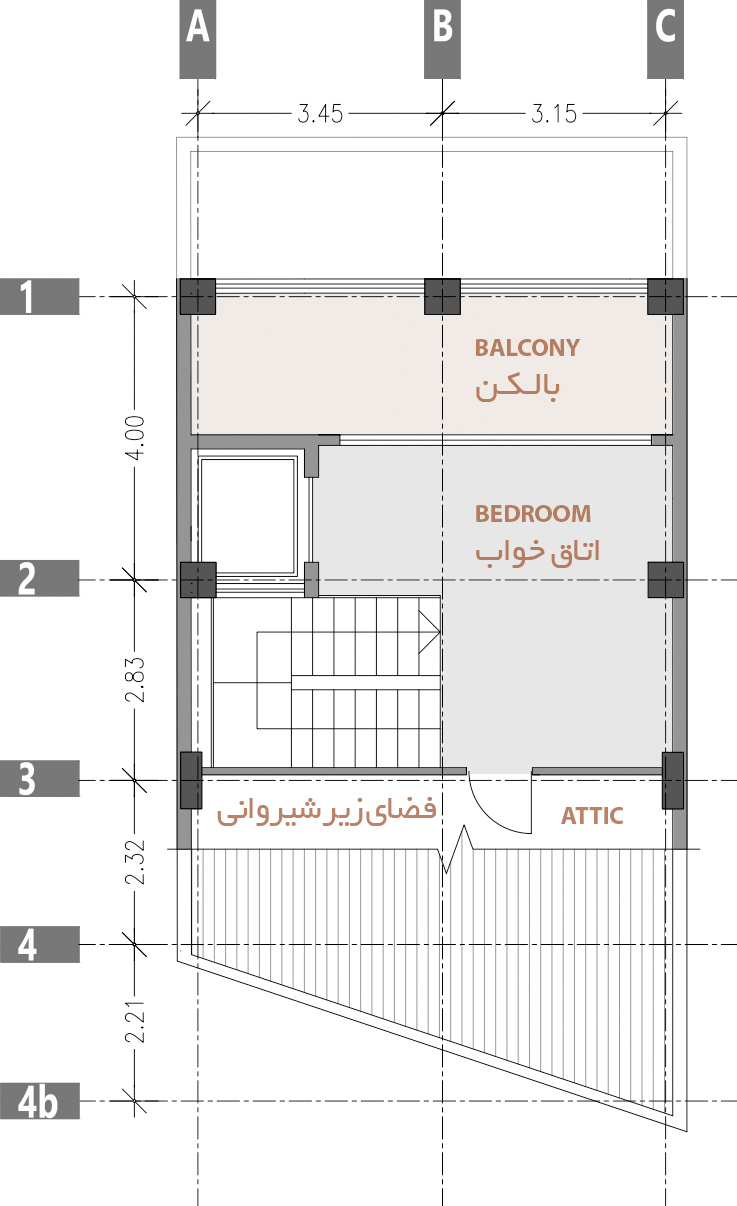

  • fourth floor plan, an apartment in Ostad Moein st.

    fourth floor (attic) plan


    floor plans does NOT designed by us

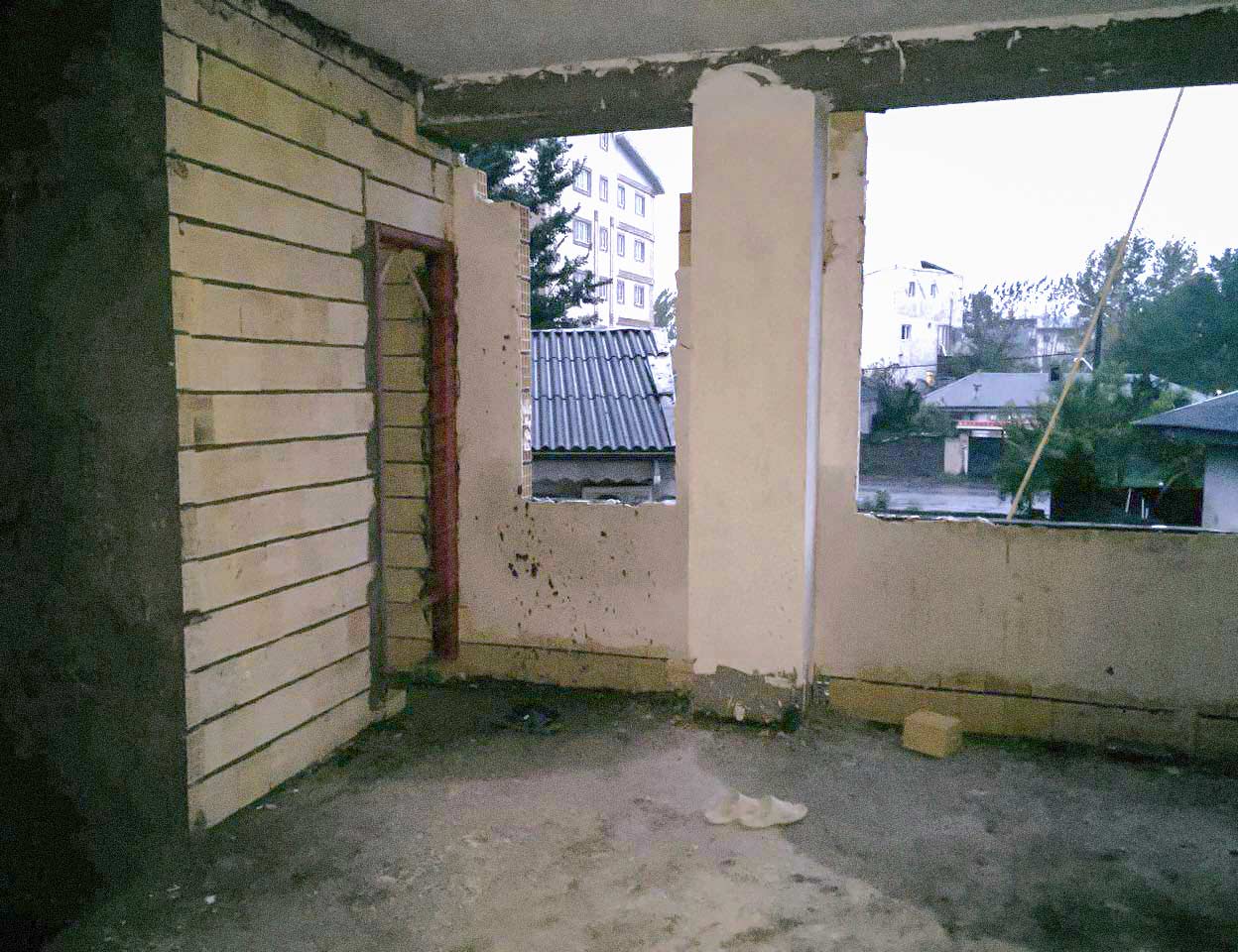

  • construction, pic 1, an apartment in Ostad Moein st.

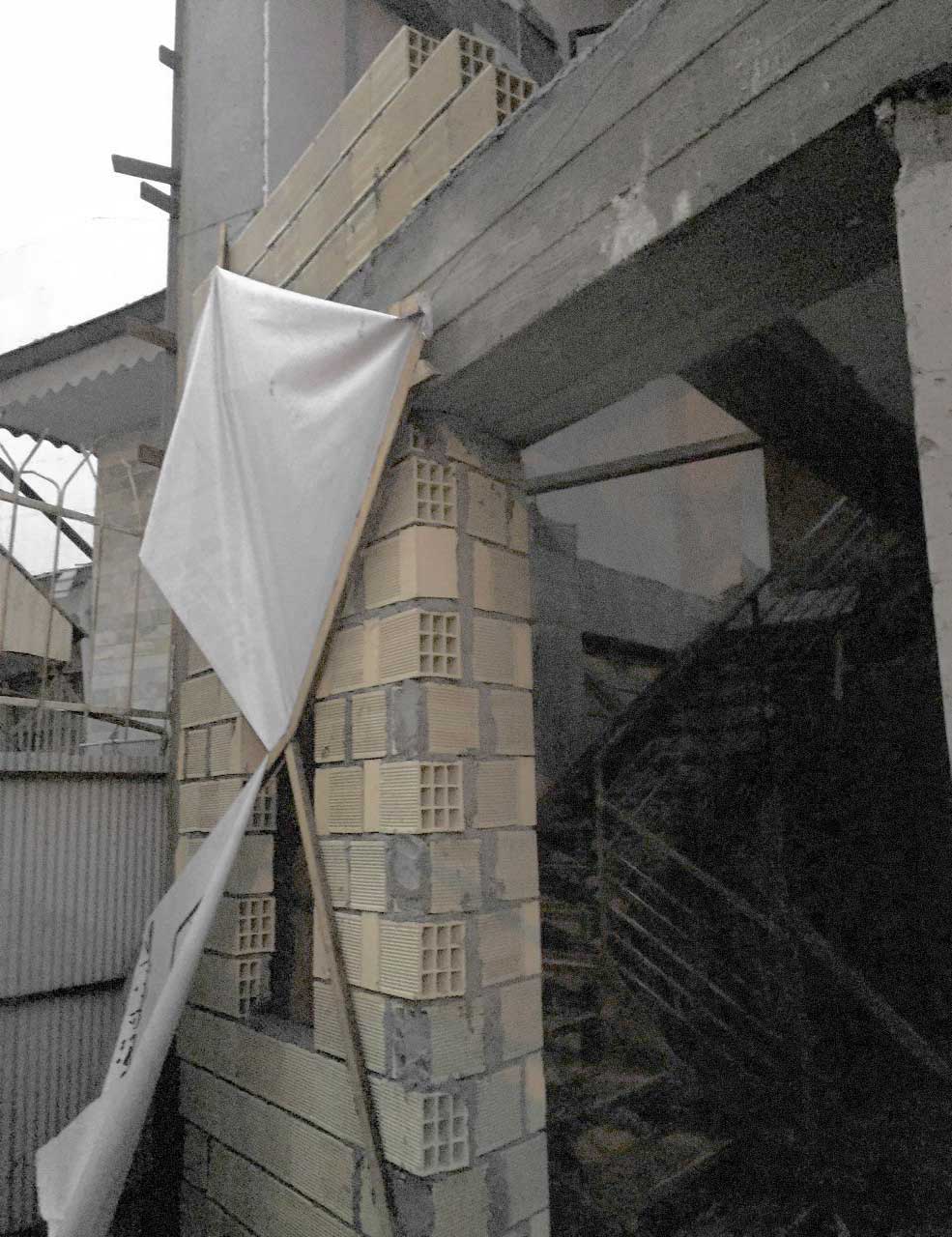

    construction, pic 2, an apartment in Ostad Moein st.

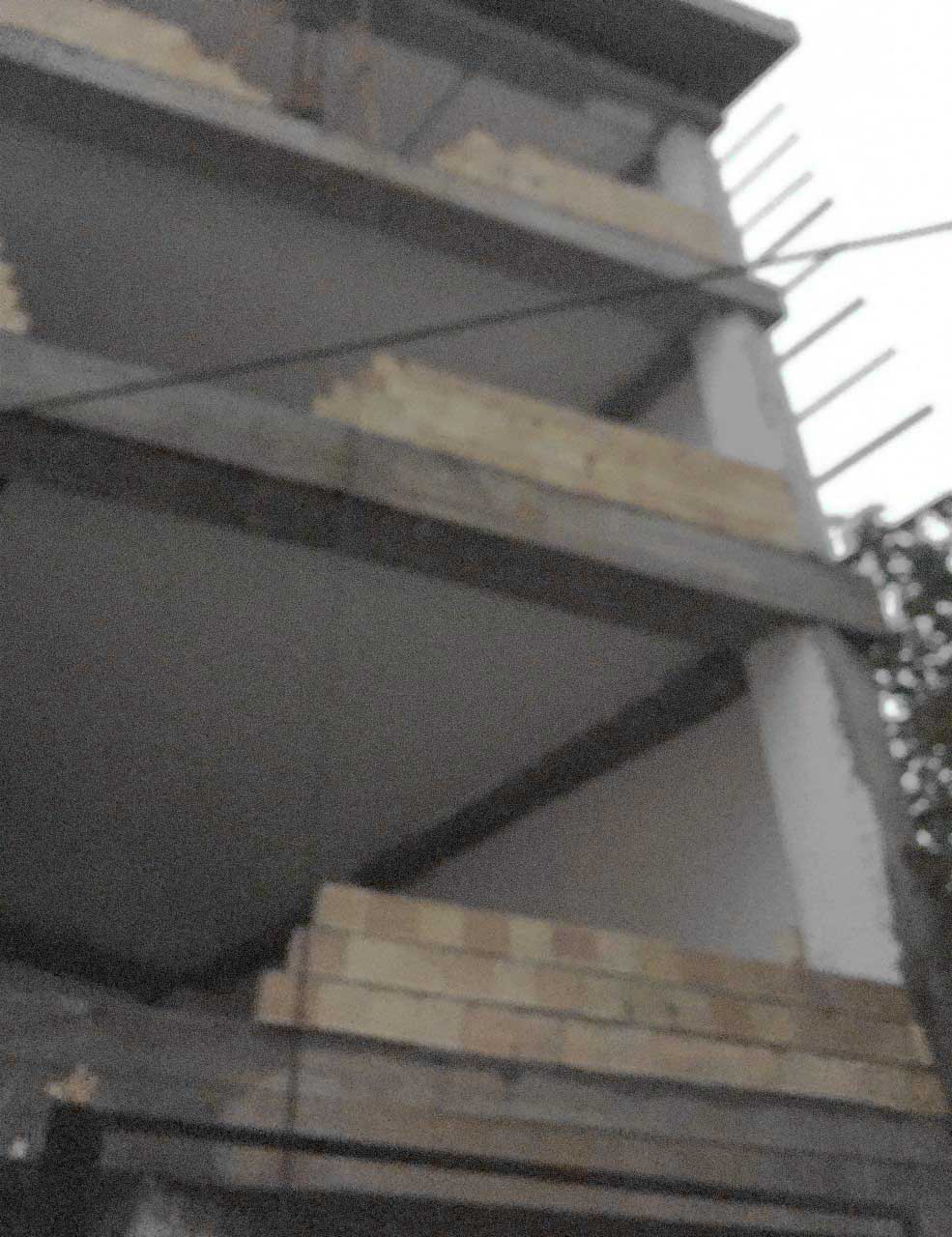

  • construction, pic 3, an apartment in Ostad Moein st.

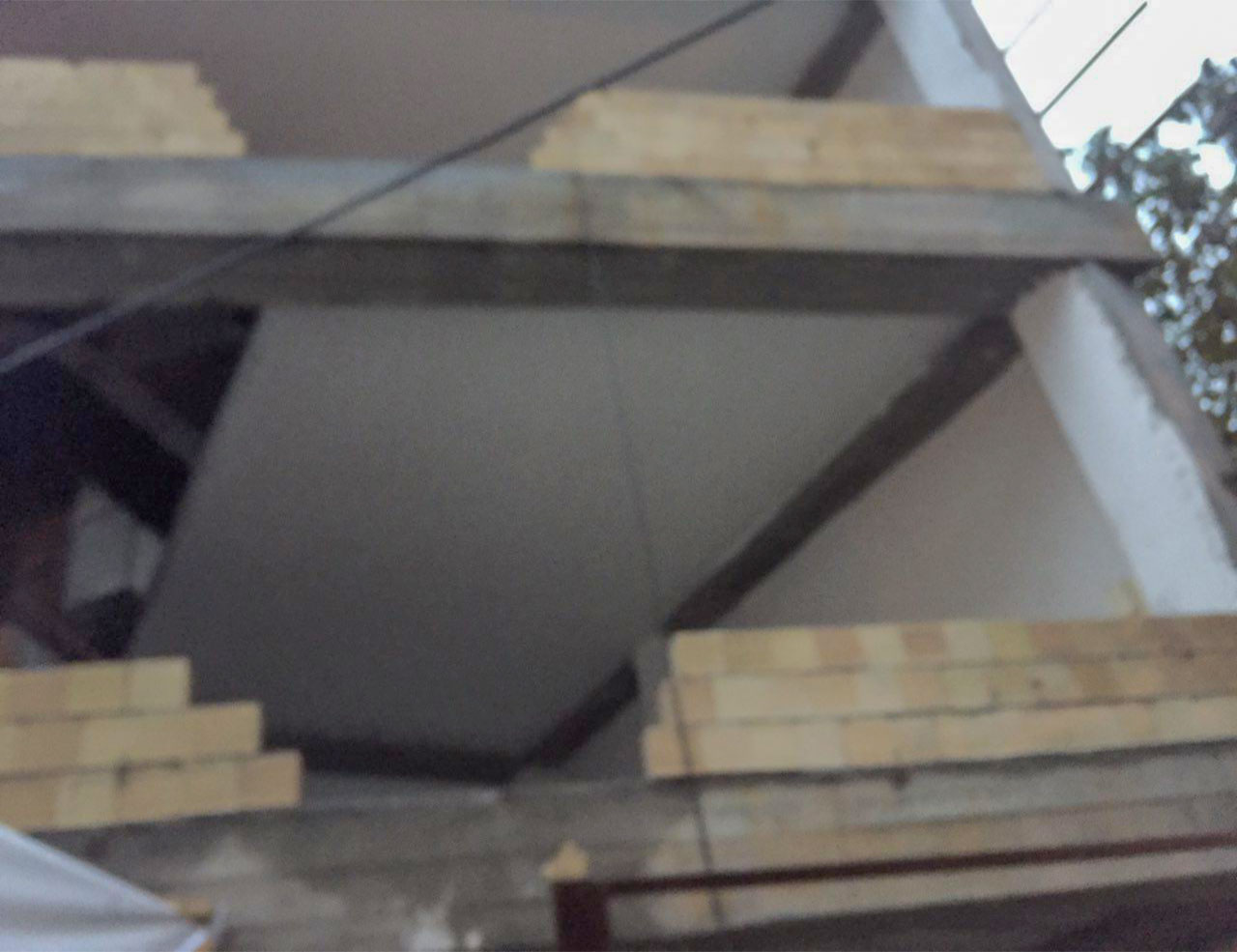

    construction, pic 4, an apartment in Ostad Moein st.
