a villa in joukoulbandango back to all projects

  • design process

    This project is located in Jokulbandan village, offering excellent views but with an east-west orientation. The design principles focused on ensuring all spaces had views of the eastern Saravan Forest and southern light for the living room.

    We divided the volume into two parts, extending the living room eastwards with an empty space for southern light. This design allows the living room to benefit from both eastern and southern light.

    The central space, initially created for functional purposes (southern light), was reimagined to add character, contrasting with the rest of the modern, minimalist project. This central area represents the blend of modernity and tradition, city and village, industrial life and nature.

    By adding a water pond connected to the pool, we engaged both auditory and tactile senses. The western facade features solid walls due to climatic reasons, with the central space extension completing the design and achieving a suspended cabin form.

    The client requested a semi-covered pool and balcony, which we achieved by covering the pool with a balcony and leaving part open for a tree, making the structural calculations challenging.

    sanjabi villa

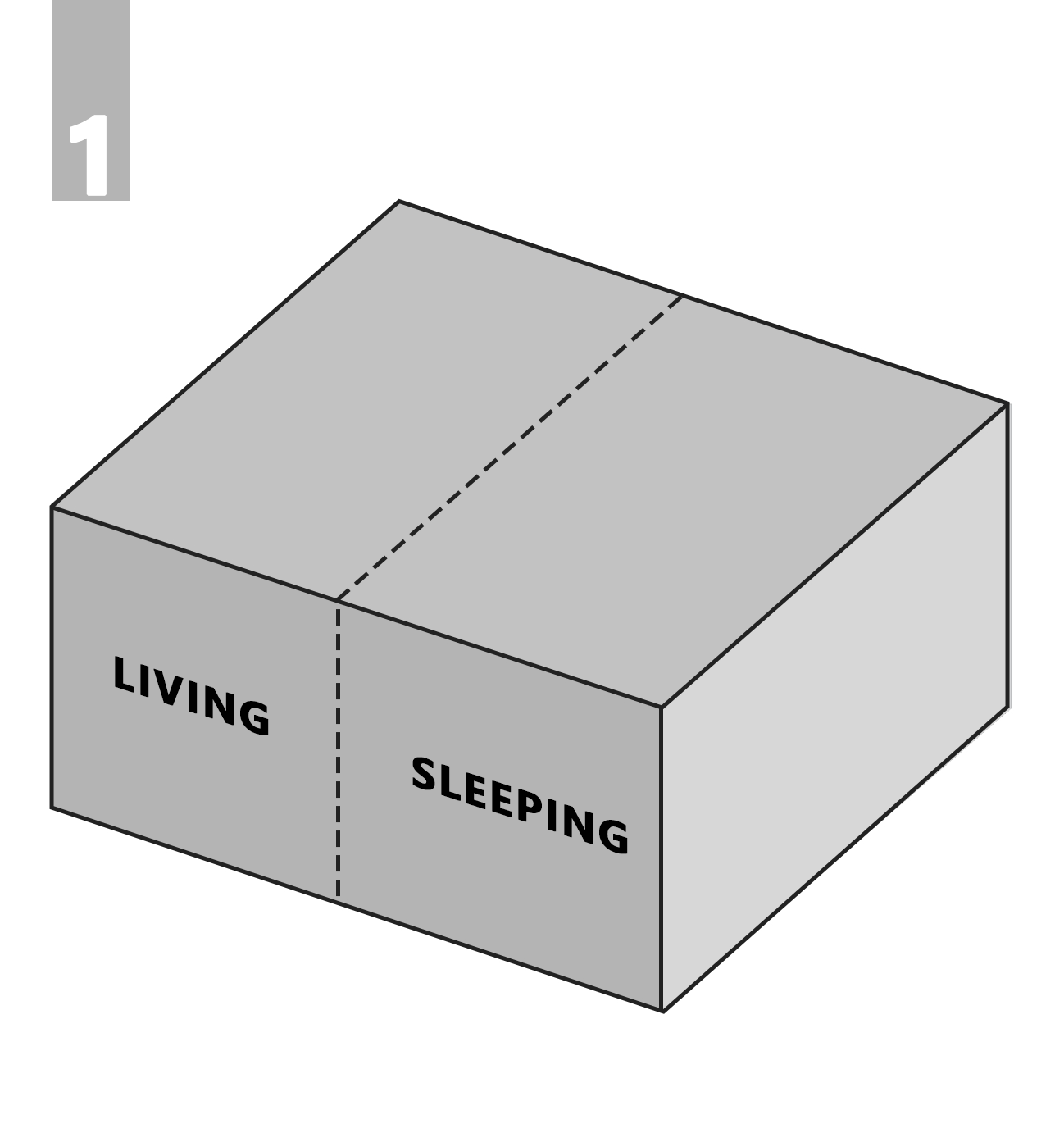

  • diagram 1, villa in Joukoulbandan

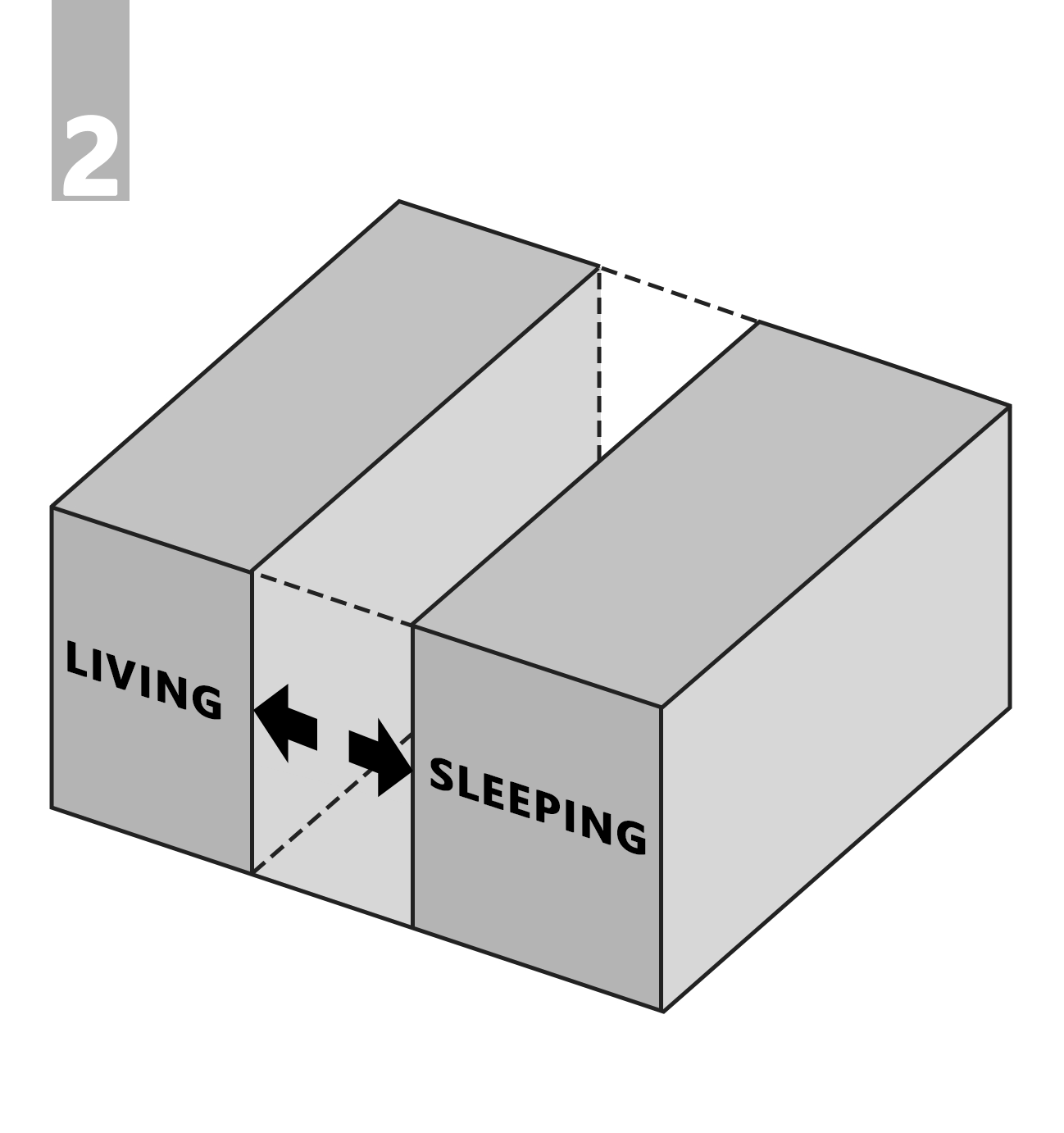

    diagram 2, villa in Joukoulbandan


    Dividing the house into two

    Every house has two parts: living space and slipping space

    We divided the house into two parts and separated these parts from each other

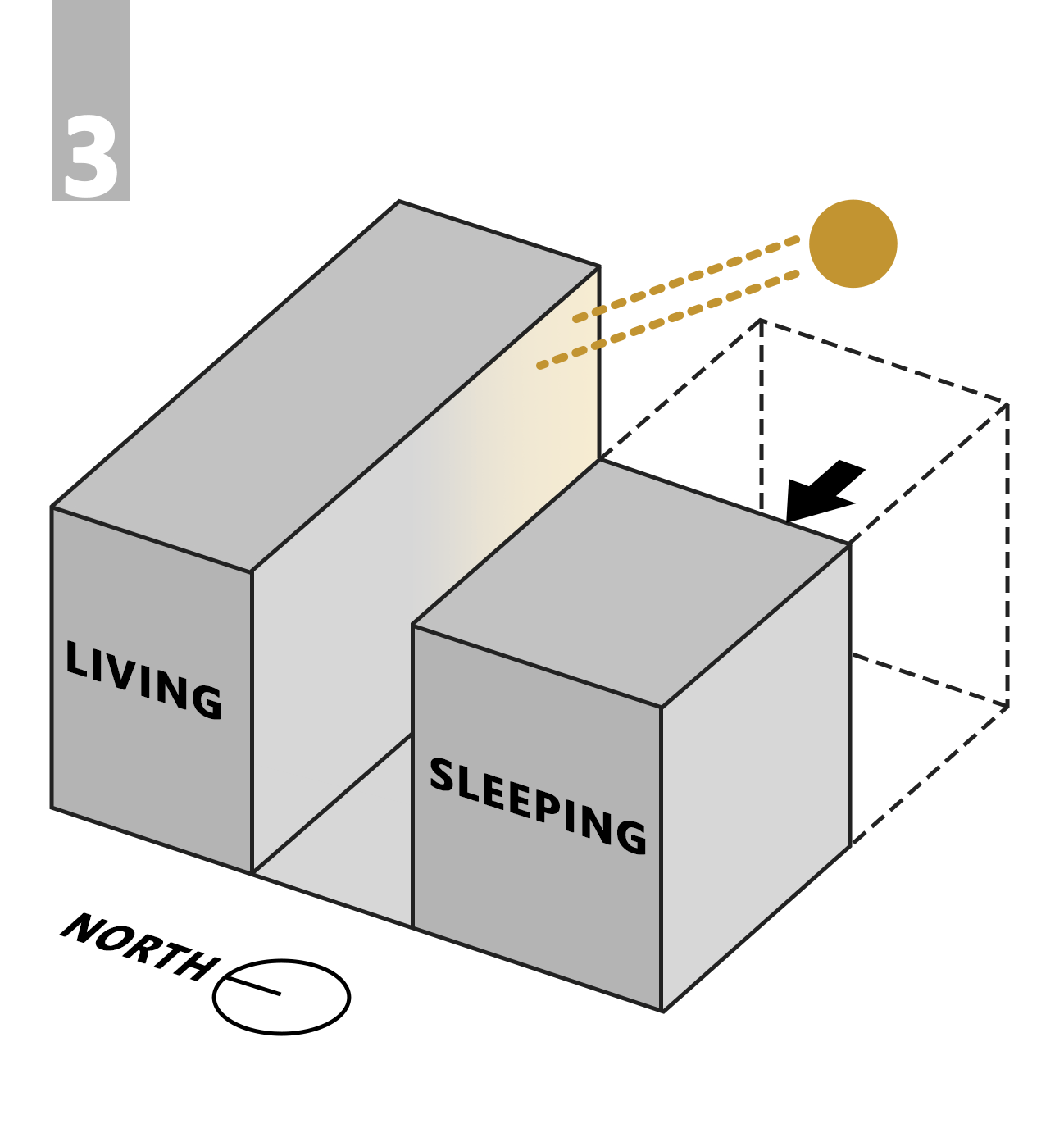

  • diagram 3, villa in Joukoulbandan

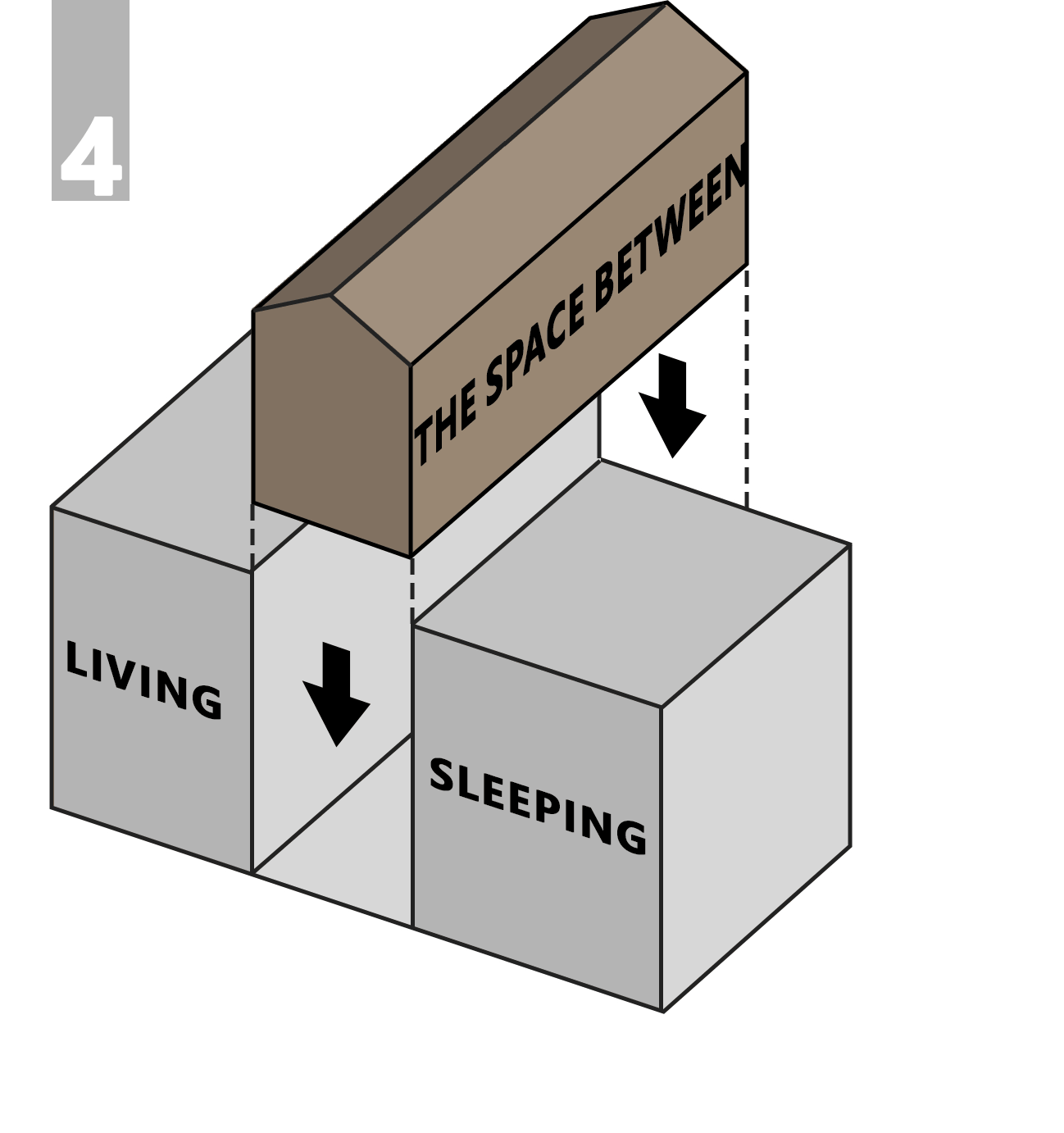

    diagram 4, villa in Joukoulbandan


    Forming and creating space

    At first, because the living room received only the east sunlight, we provided the south sunlight by changing the volume.

    Then, an intermediate space was placed between the two parts of the house. A space that connects two parts separated from each other: A space in between.

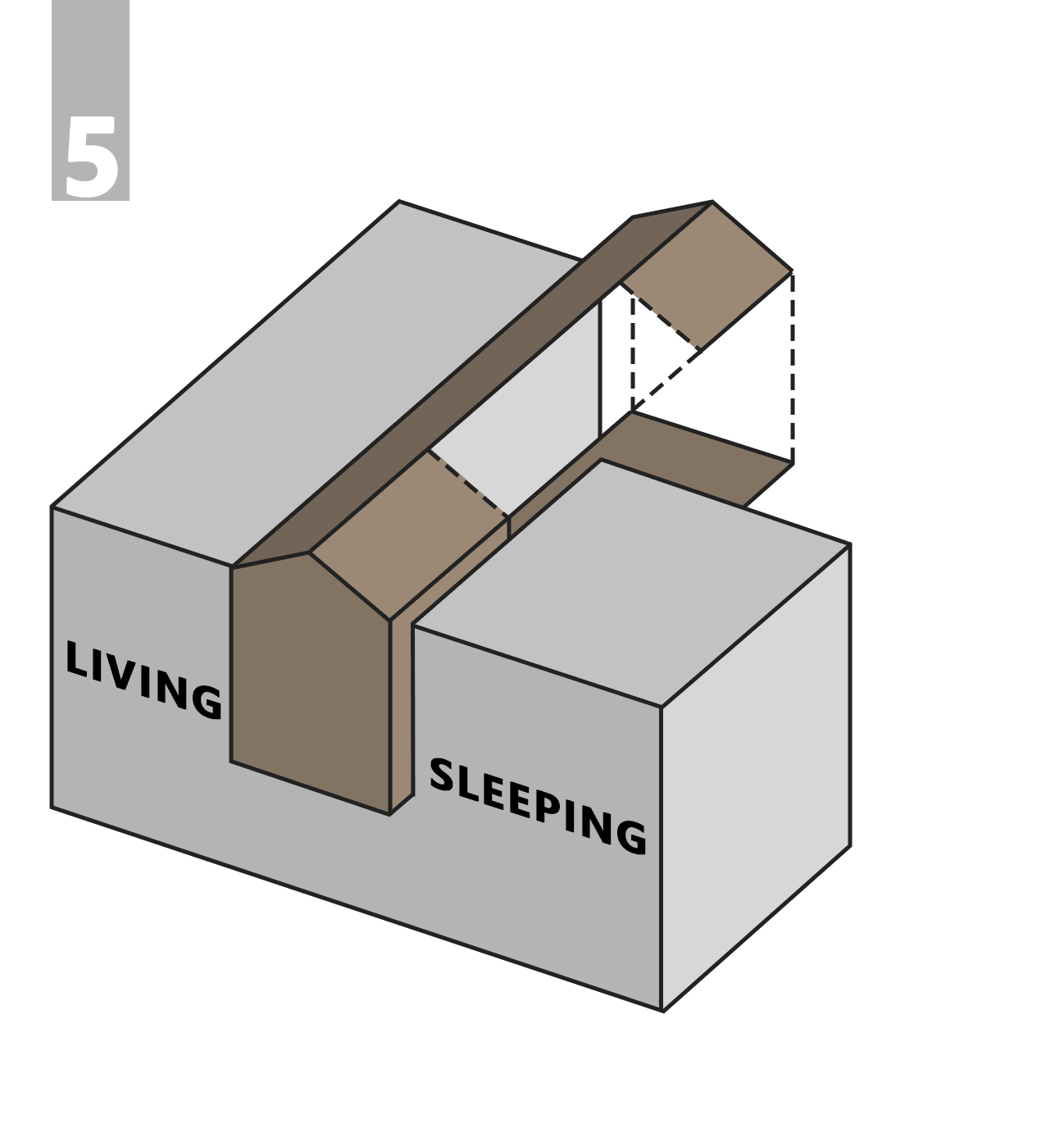

  • diagram 5, villa in Joukoulbandan

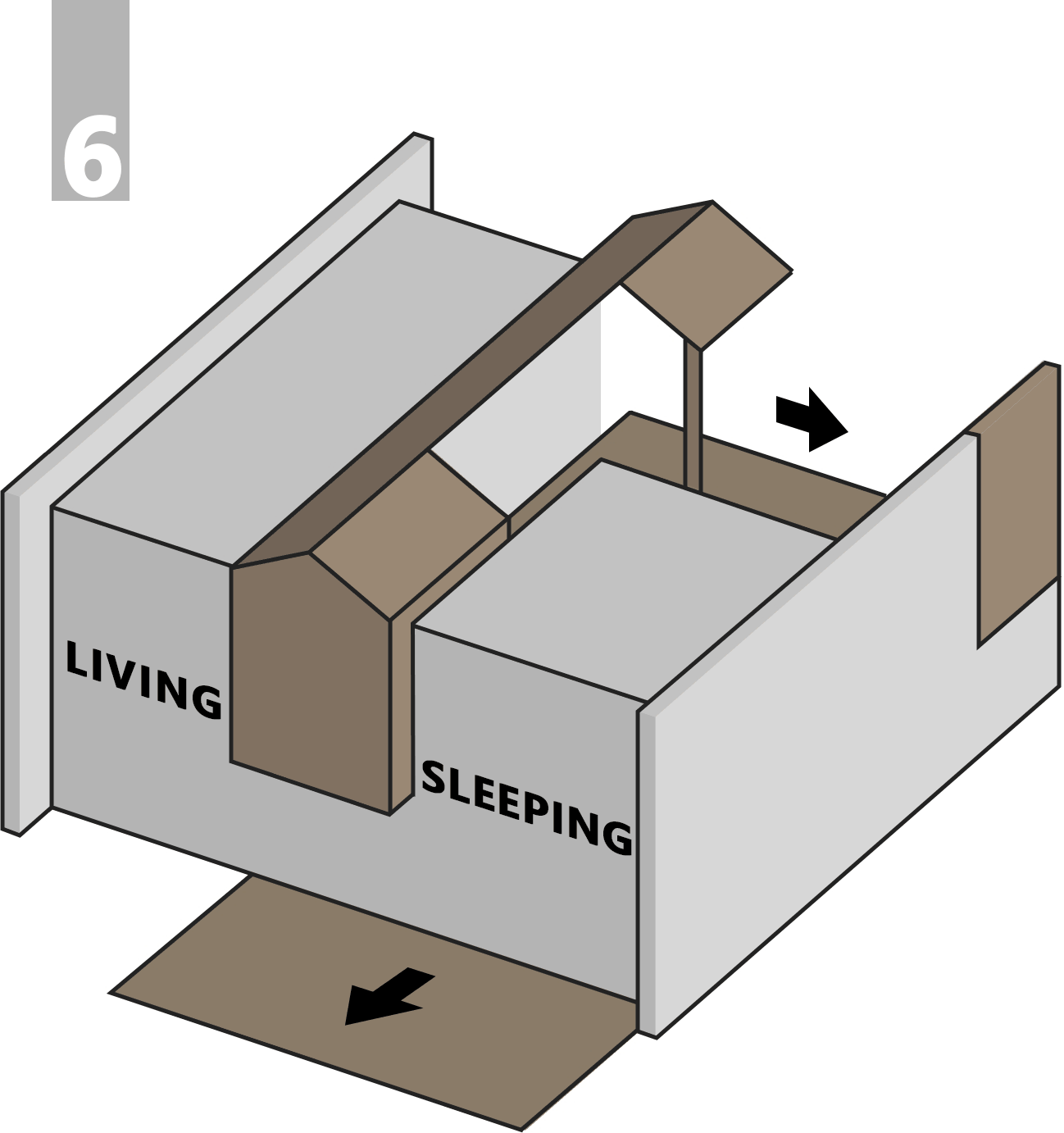

    diagram 6, villa in Joukoulbandan


    Reaching the final form

    At first, because the living room received only the east sunlight, we provided the south sunlight by changing the volume.

    "The space in between" is not just a place for commuting, not just a place that is supposed to connect two parts, but also as a place for bring things to happen. We considered the in-between space as the heart of the project.

    Finally, we extended that in-between space by adding a balcony to it.

  • eastern elevation, villa in Joukoulbandan

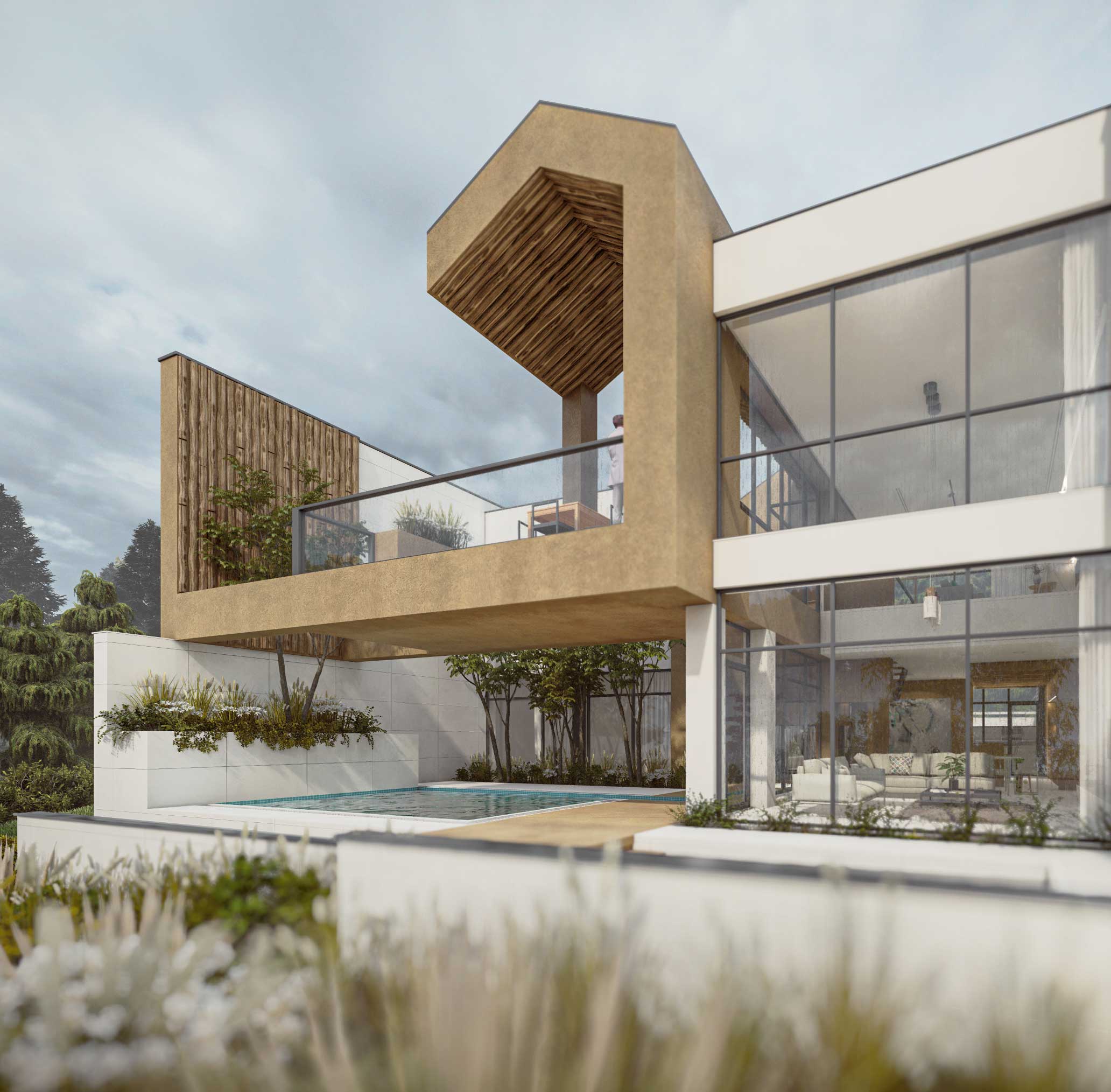

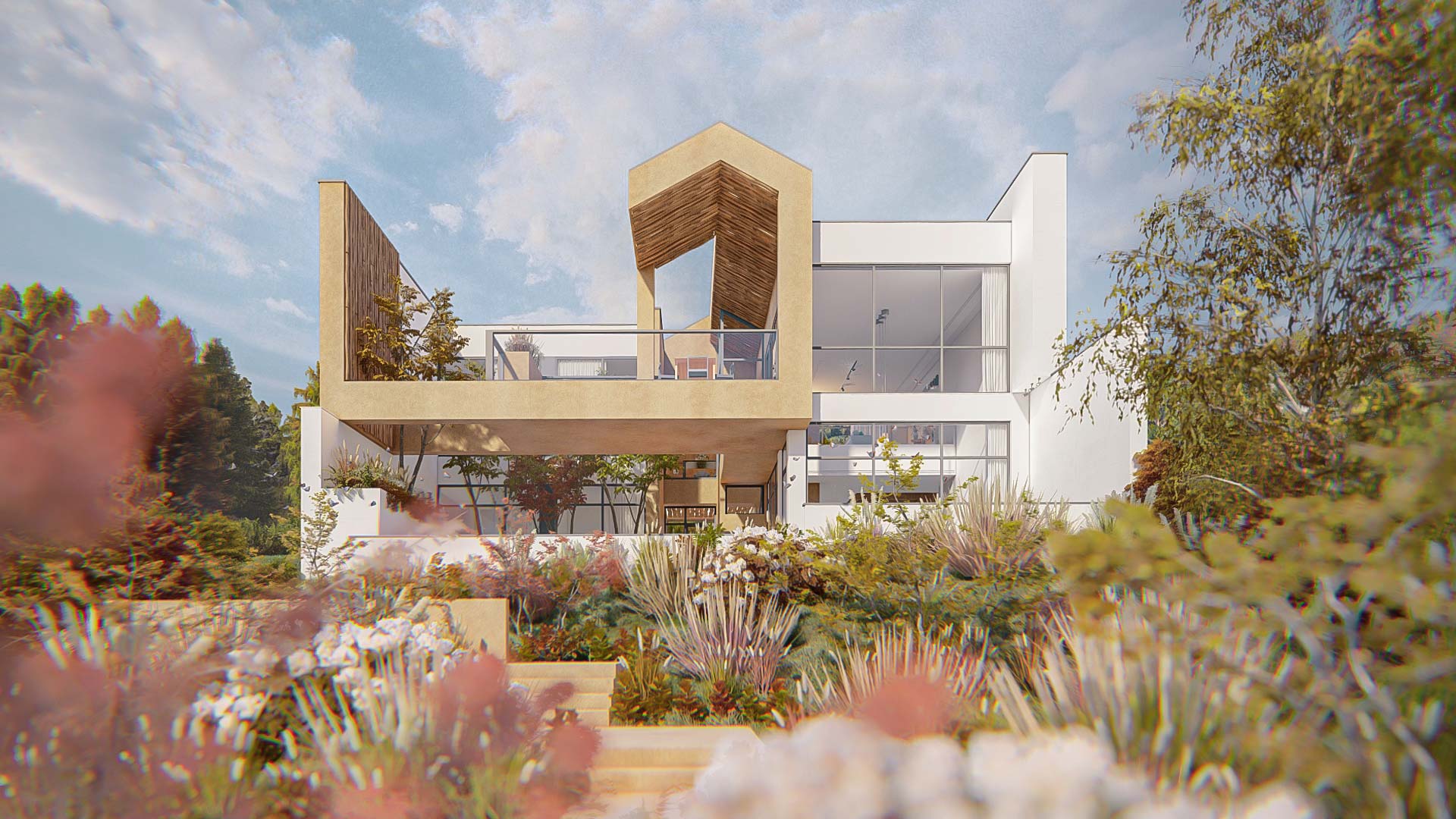

  • eastern eelation, day view, villa in Joukoulbandan

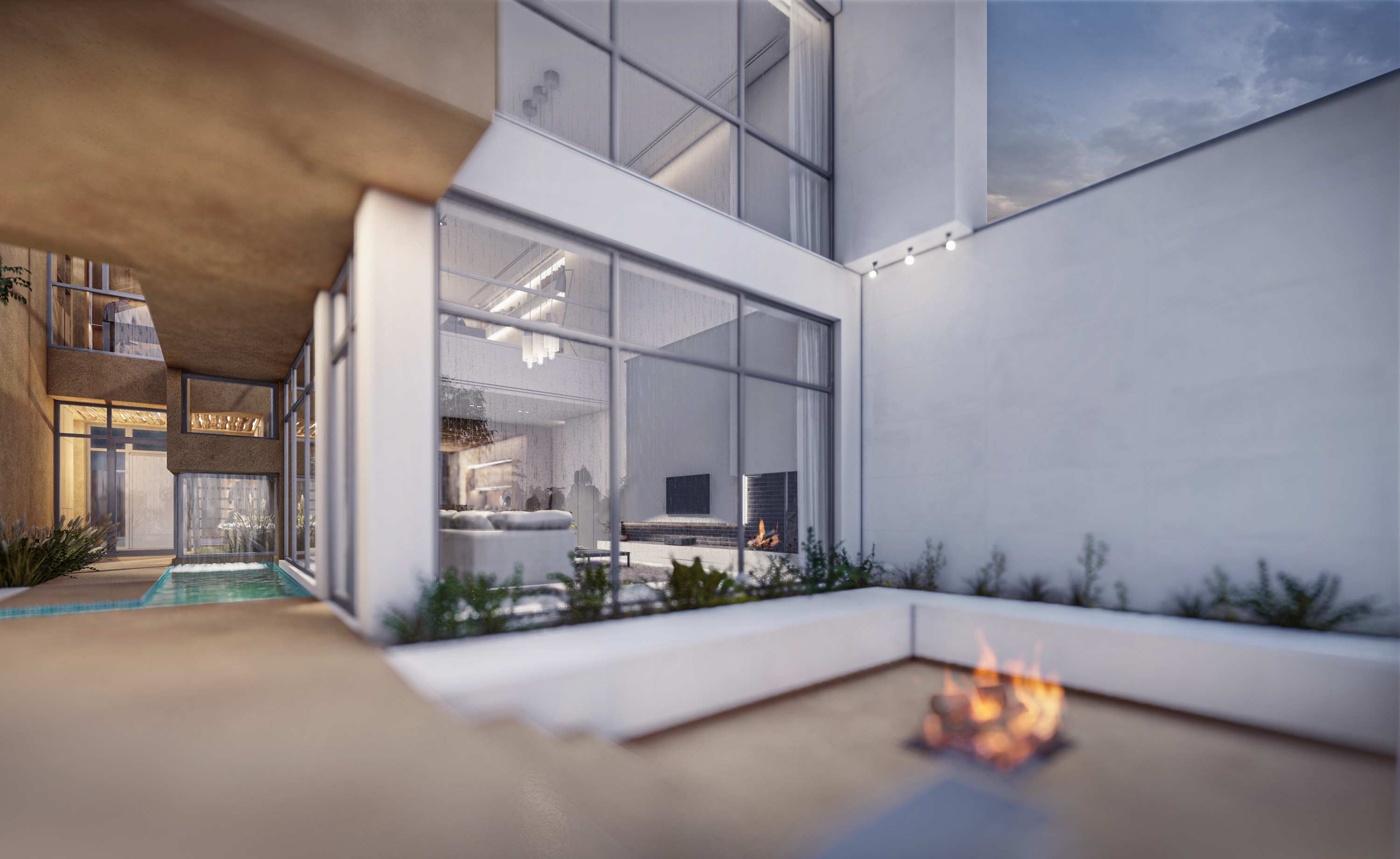

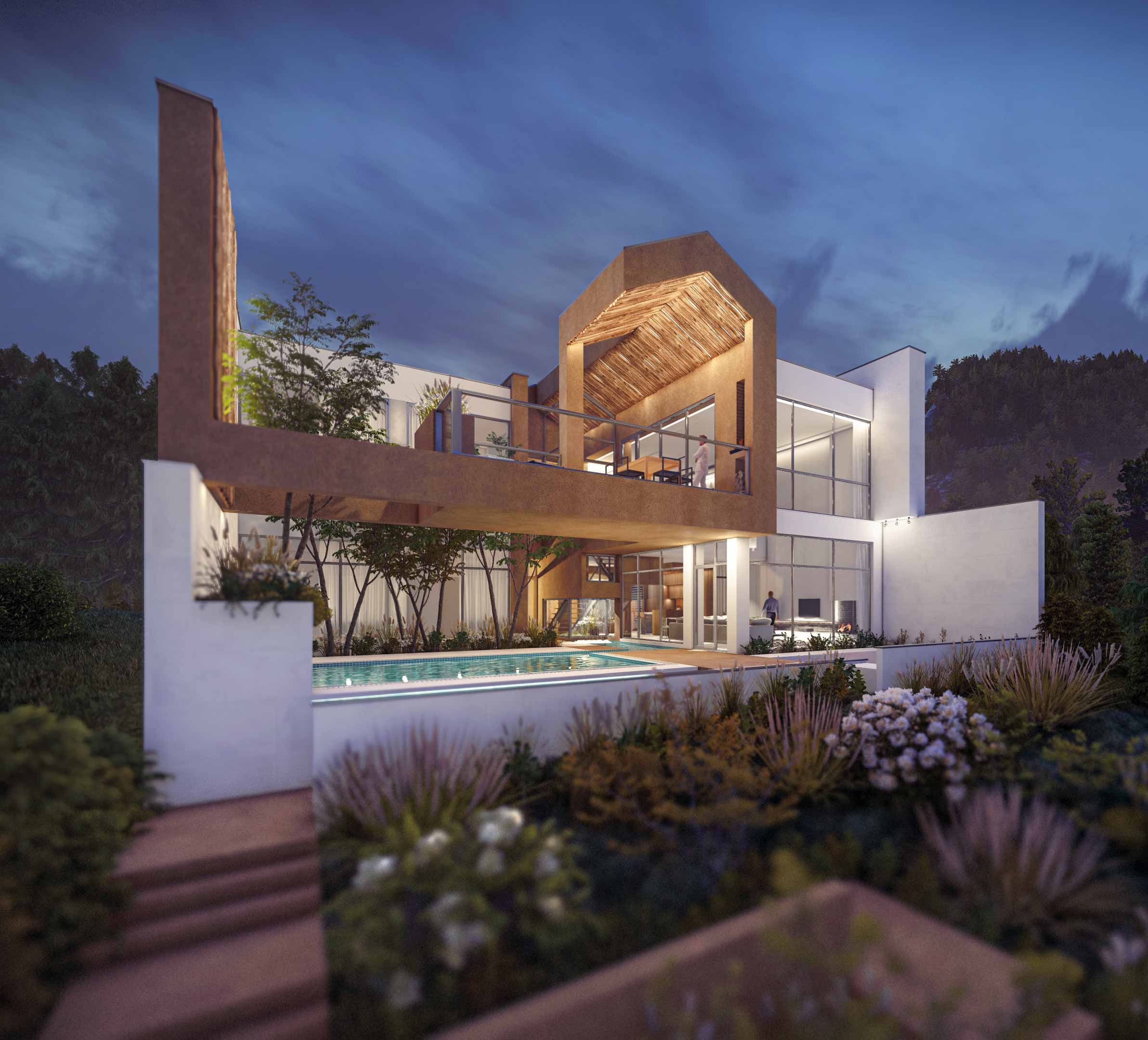

  • eastern facade, night, villa in Joukoulbandan

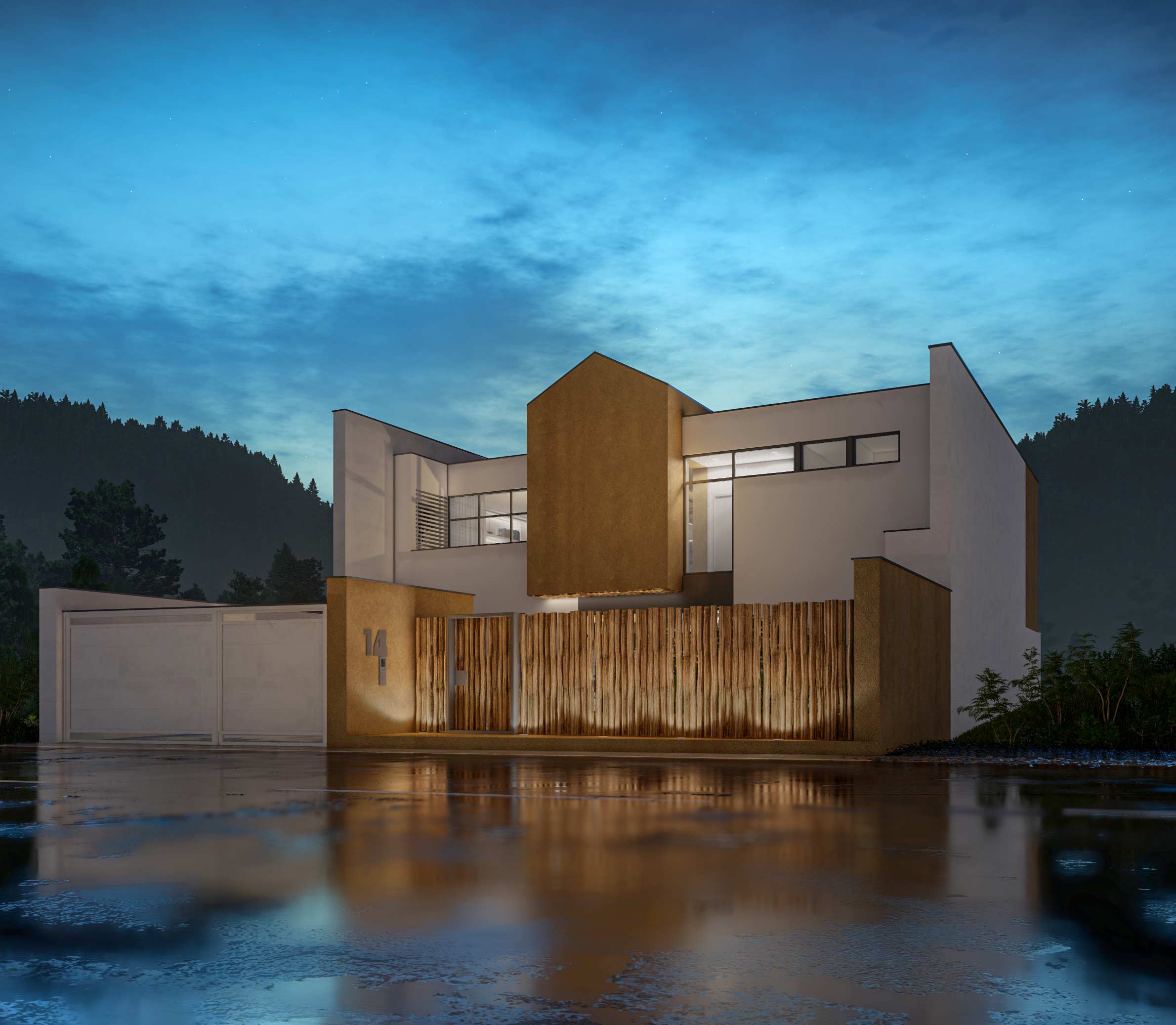

  • facade, view from street, night, villa in Joukoulbandan

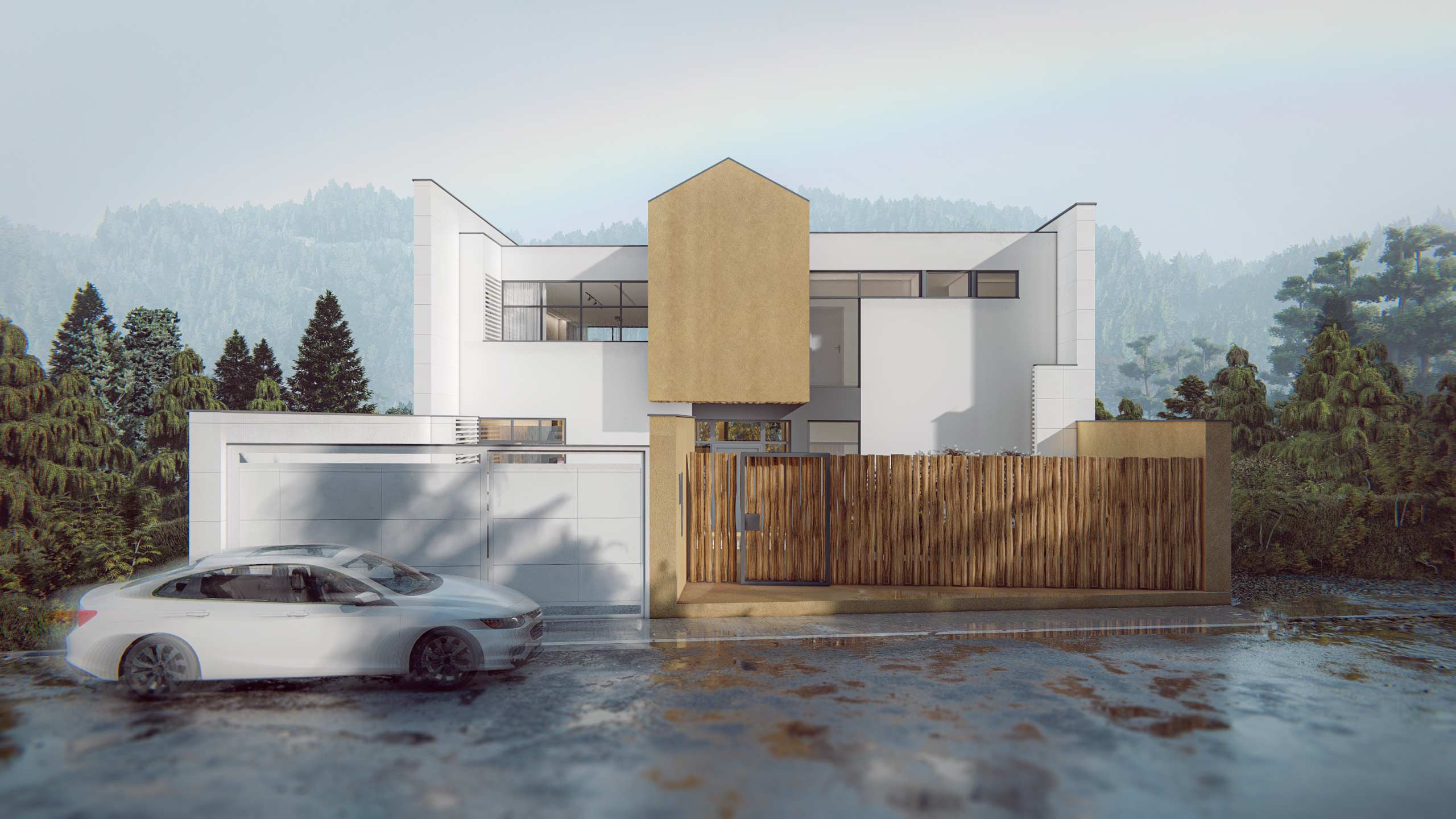

  • facade, view from street, day, villa in Joukoulbandan
  • western facade, villa in Joukoulbandan

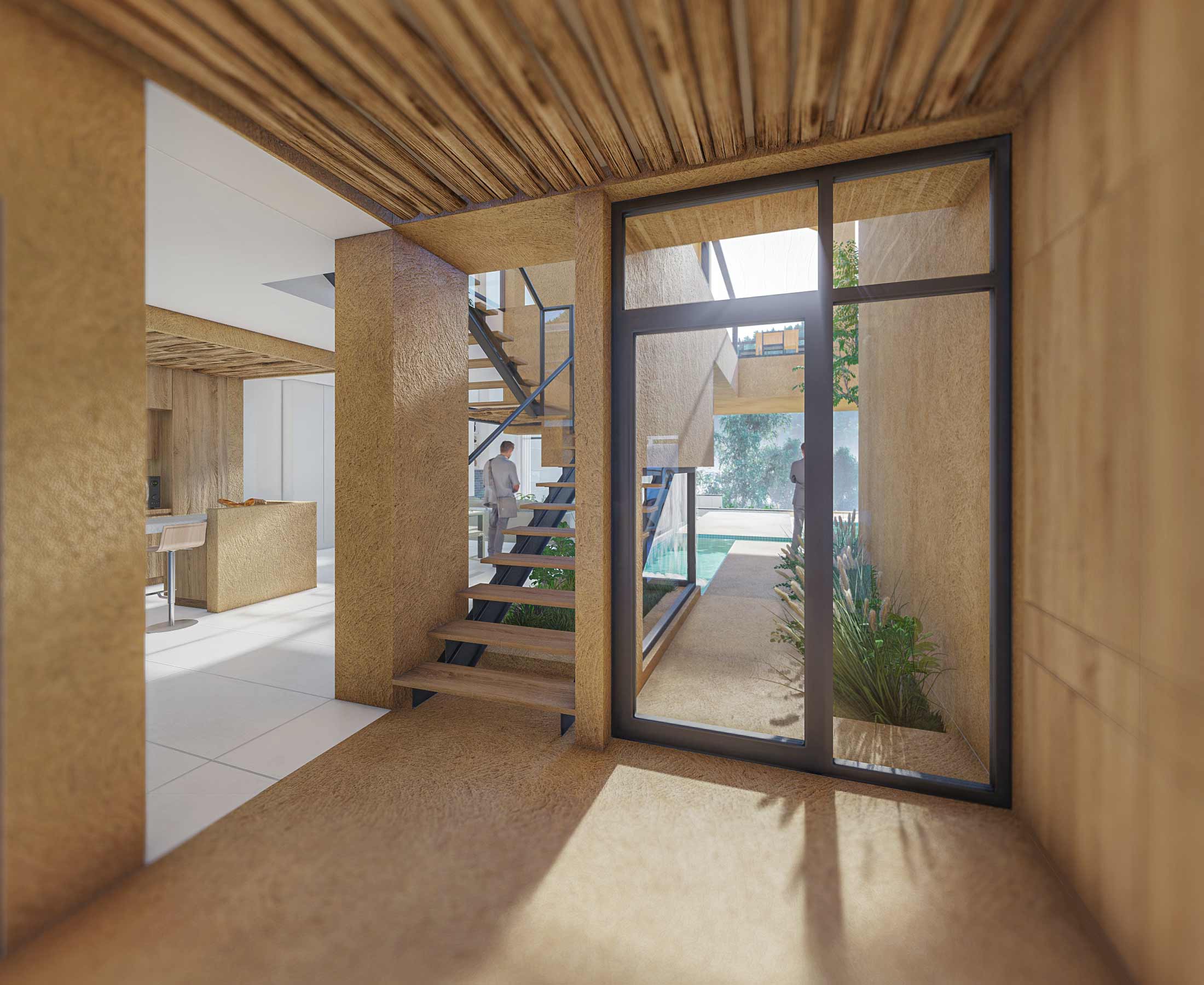

  • the entrance, interior, villa in Joukoulbandan

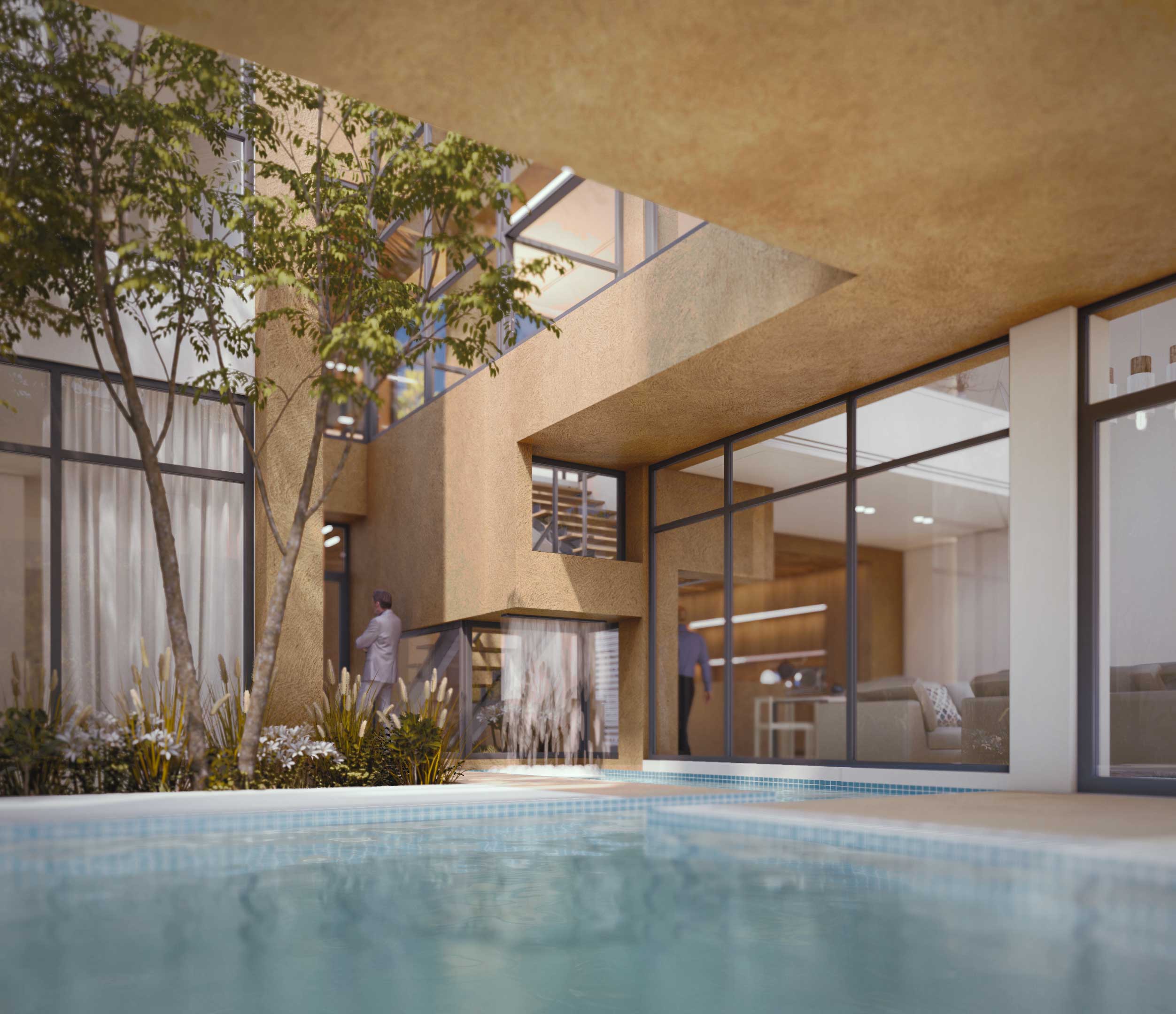

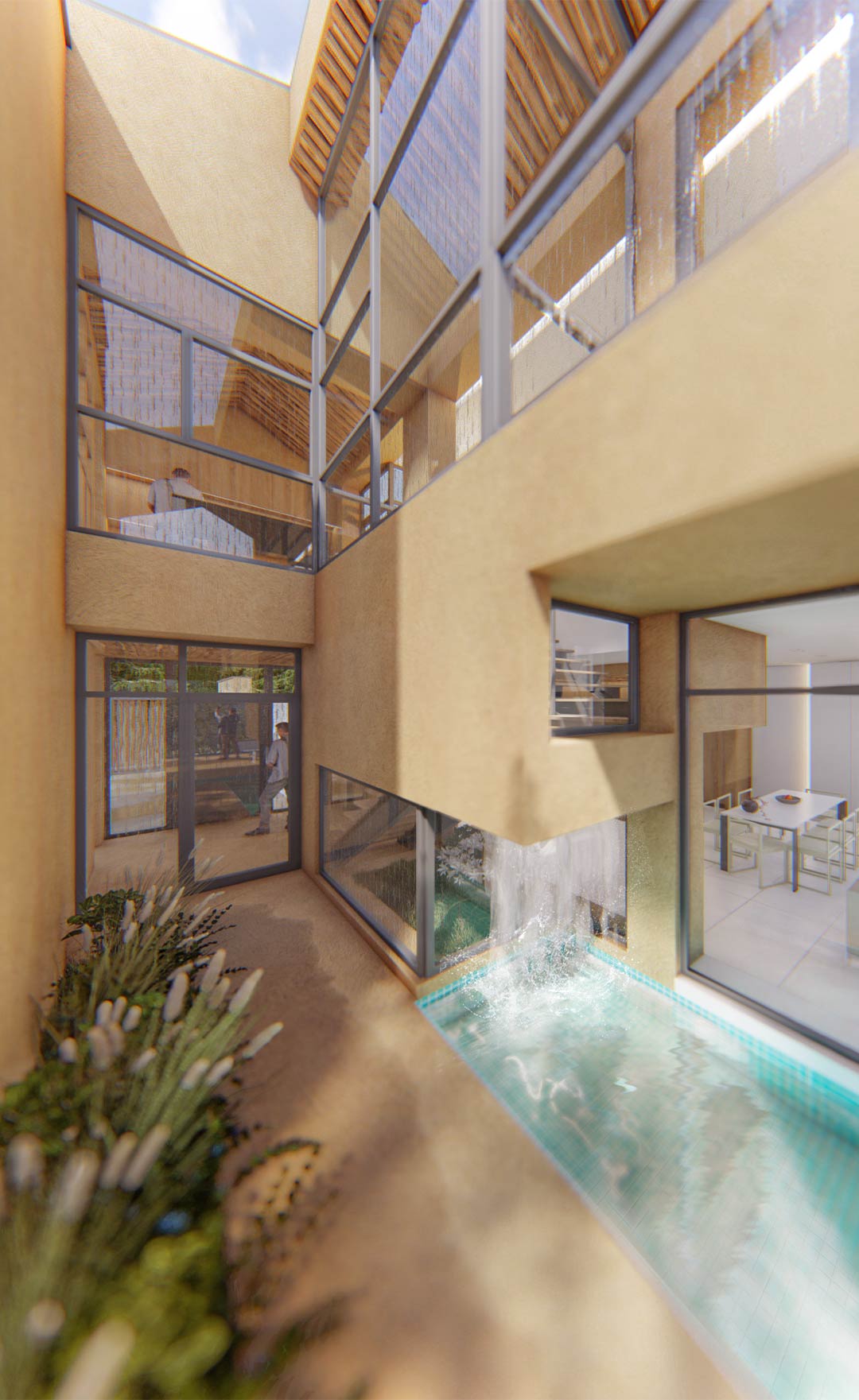

  • the pool, and the space in between, villa in Joukoulbandan

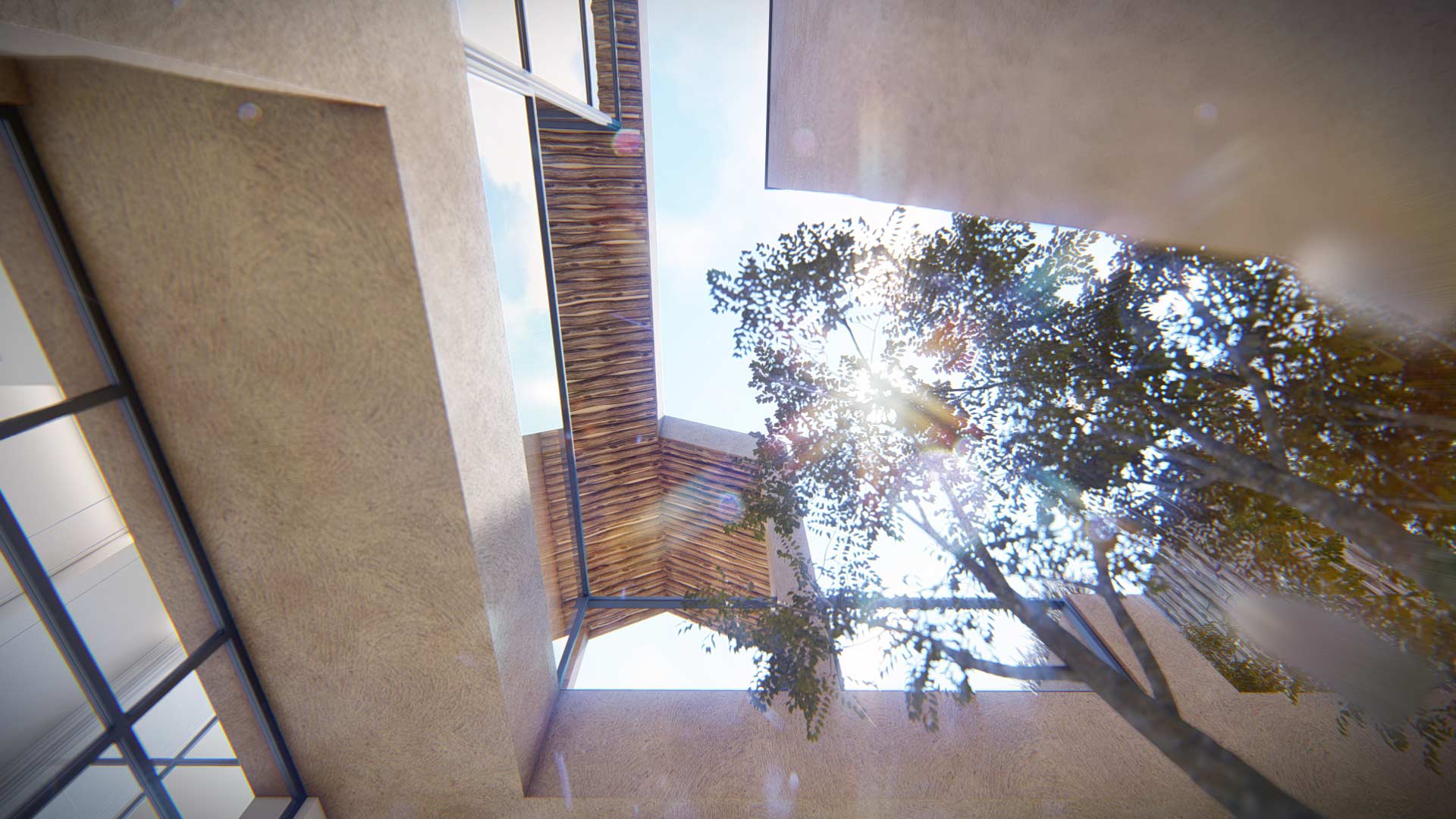

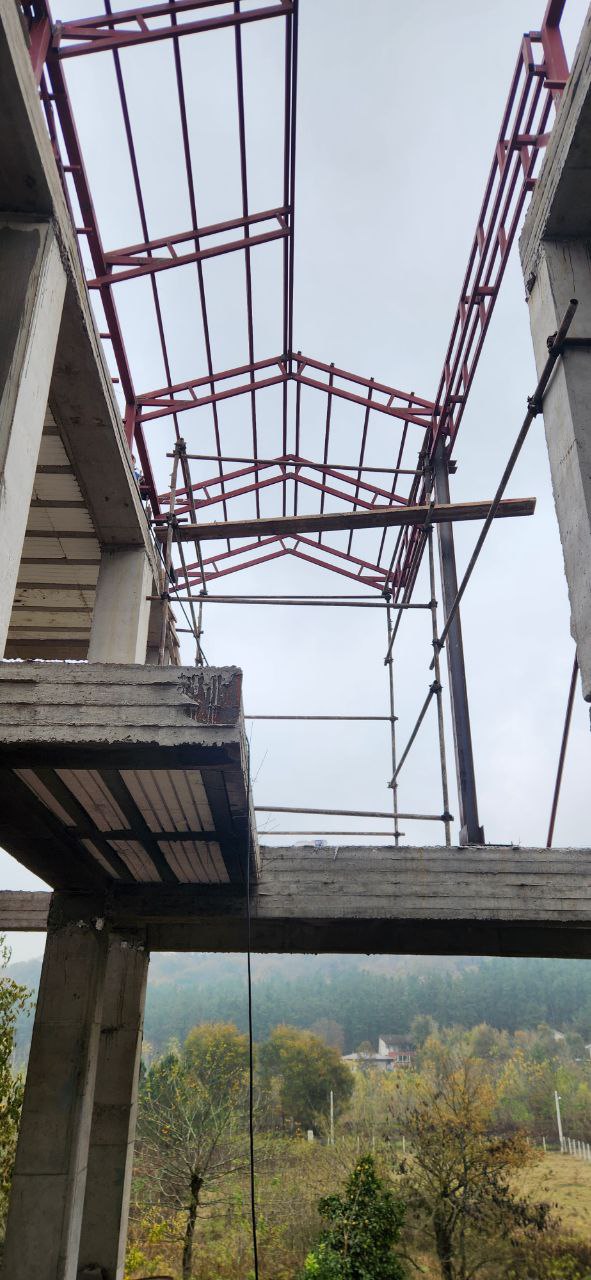

  • roof of the balcony, villa in Joukoulbandan
  • the pool, villa in Joukoulbandan
  • in between space, render of facade, sanjabi villa project

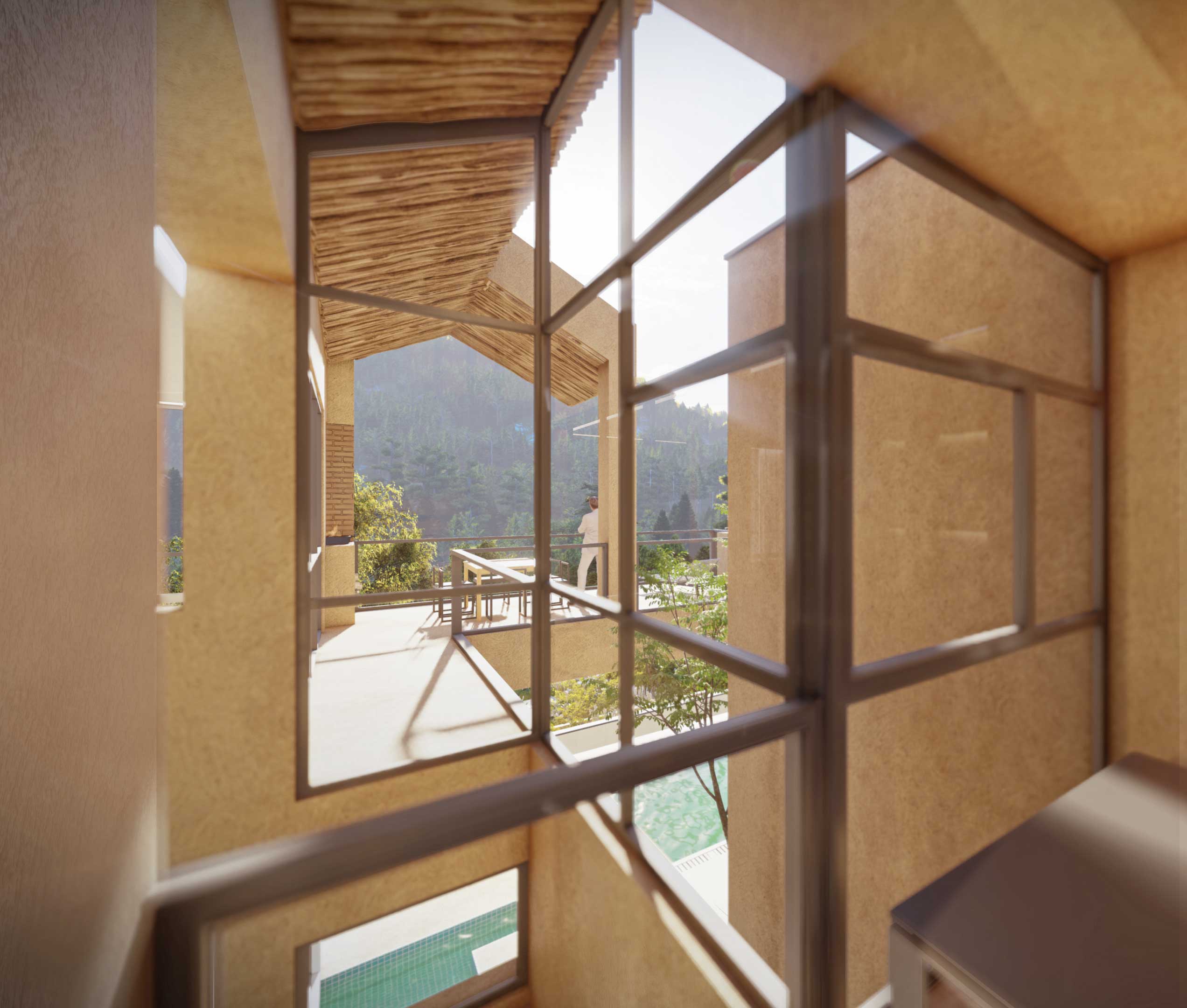

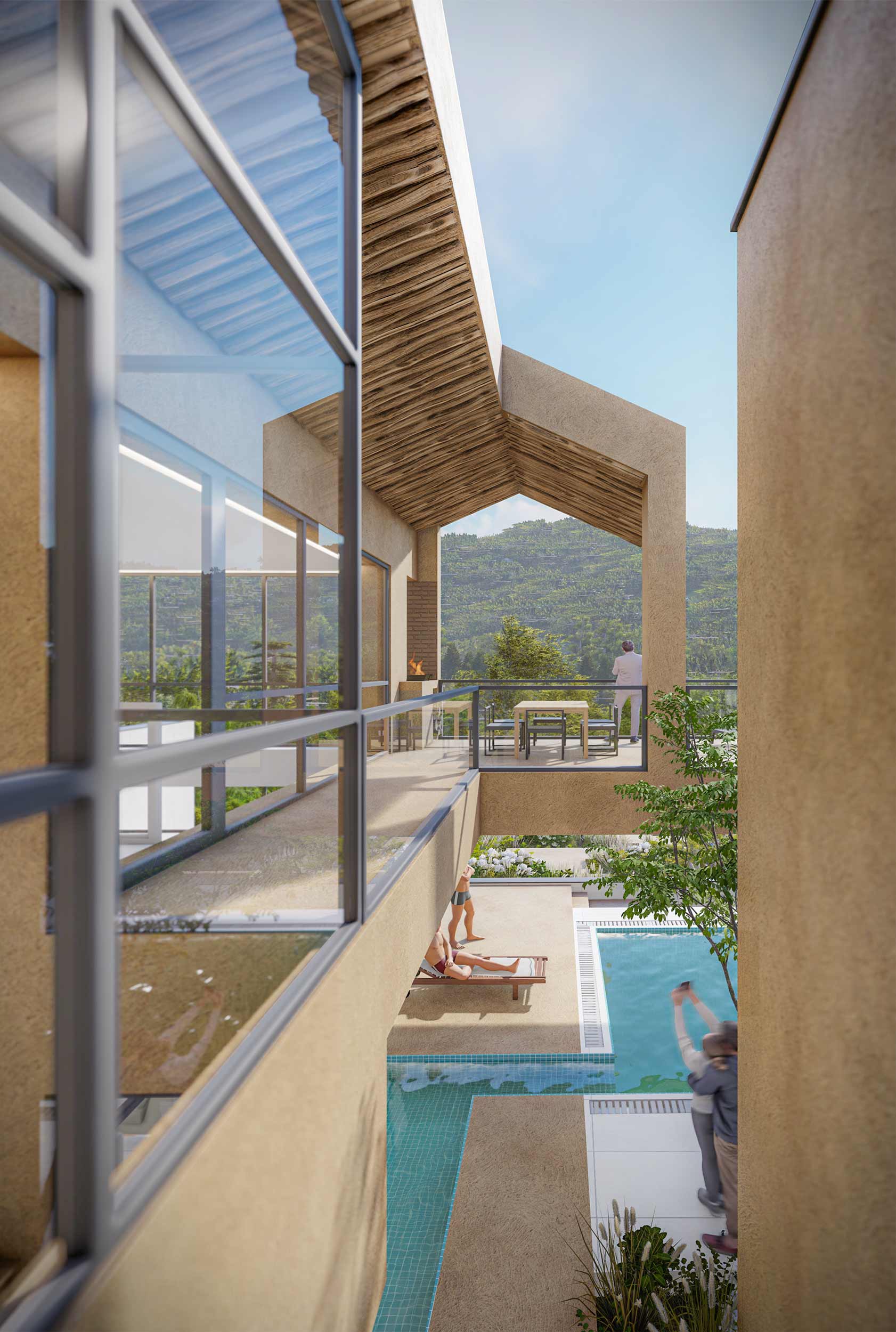

  • in between space , the balcony, villa in Joukoulbandan

  • the balcony, villa in Joukoulbandan
  • view to the nature, villa in Joukoulbandan
  • first floor dining room, villa in Joukoulbandan

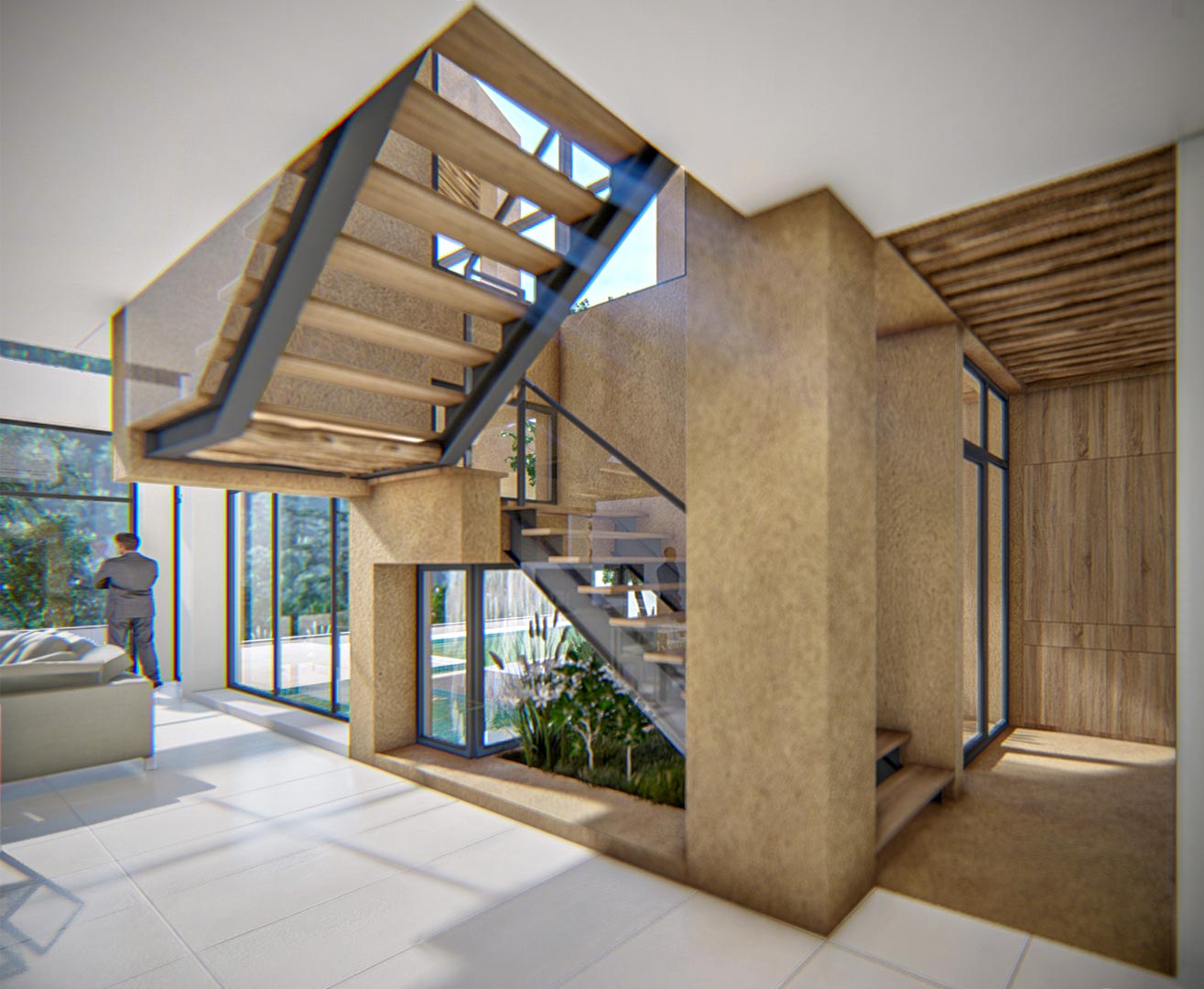

  • stairs, first floor, villa in Joukoulbandan

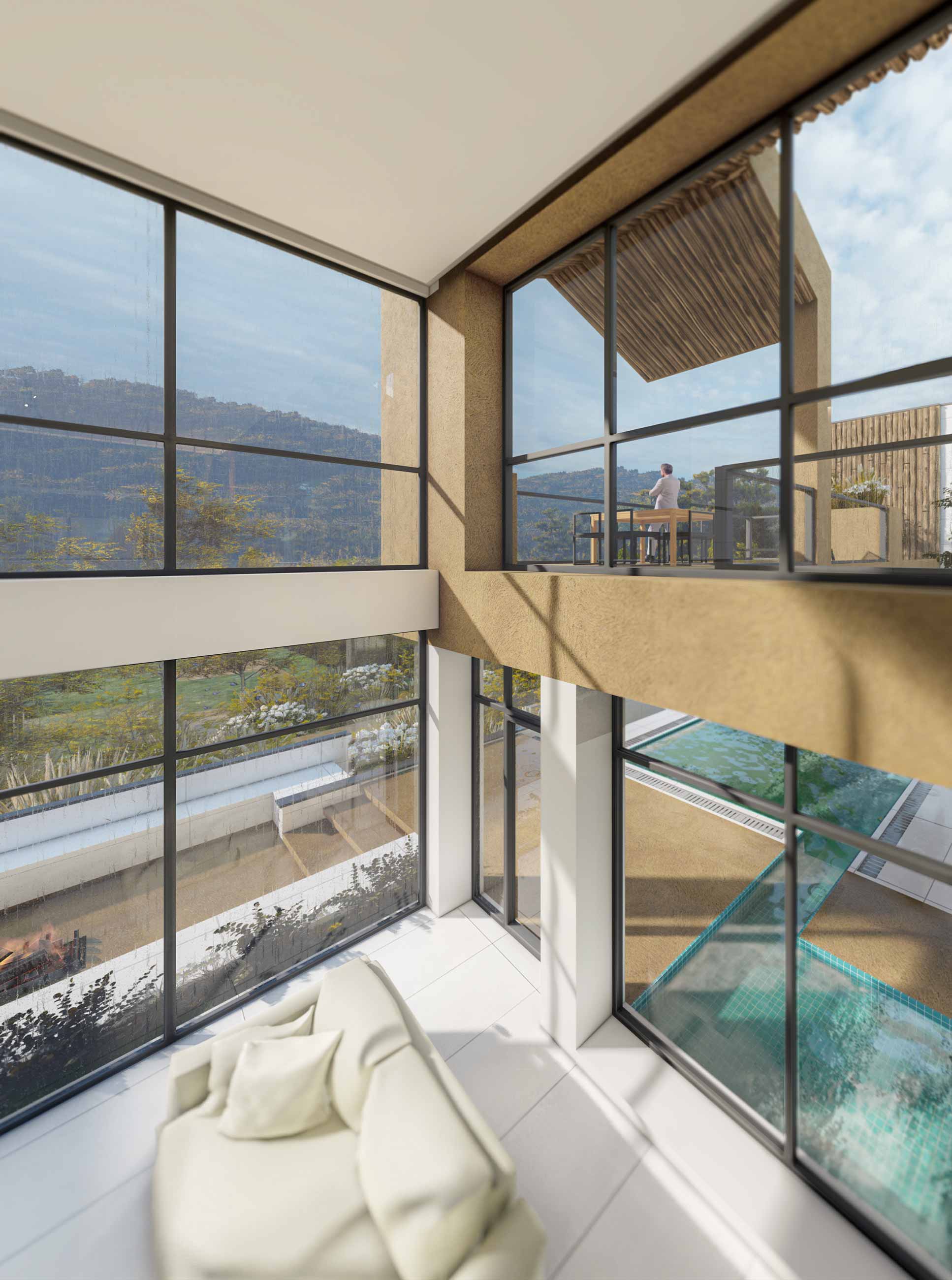

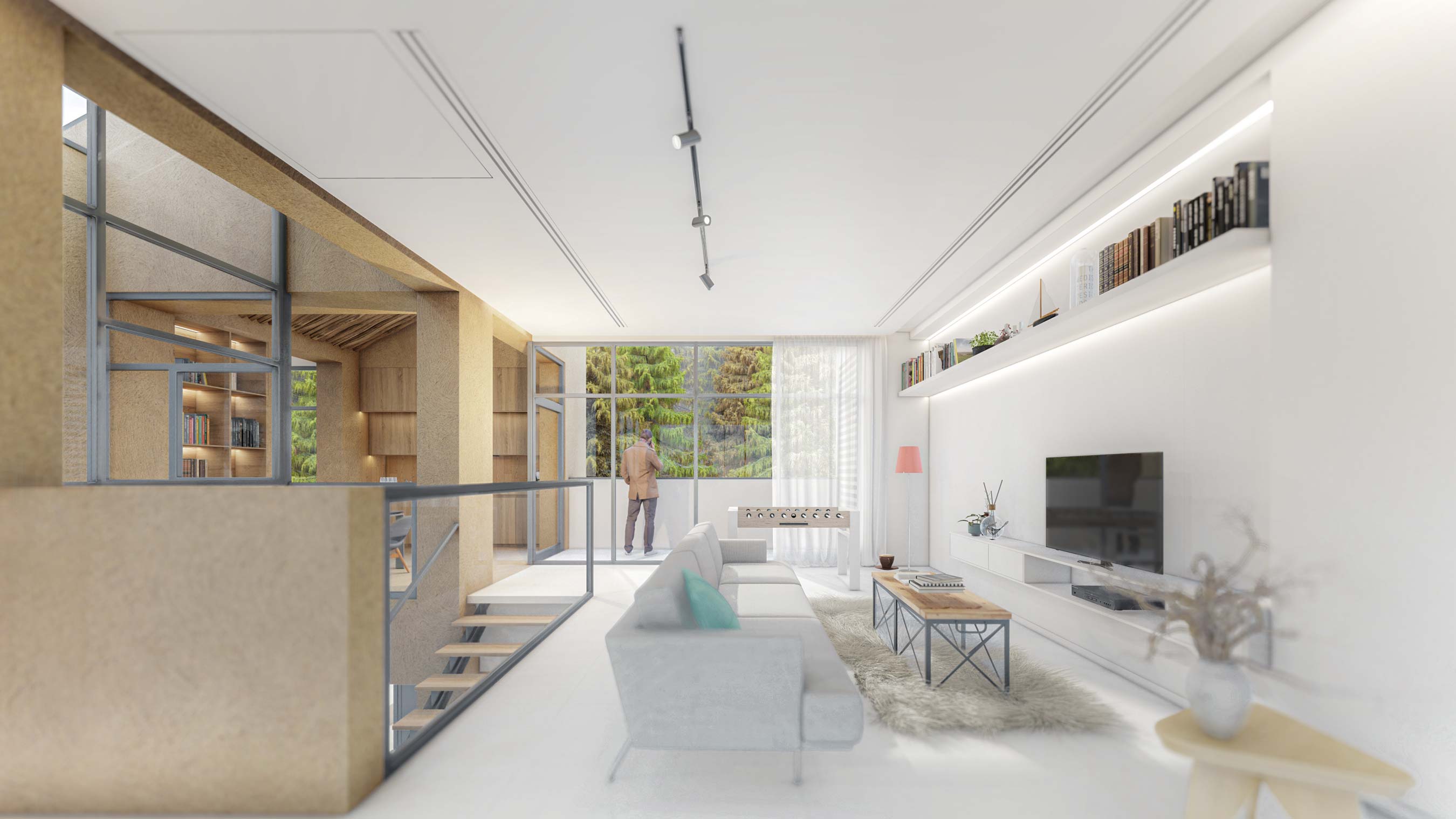

  • the void and living room, villa in Joukoulbandan

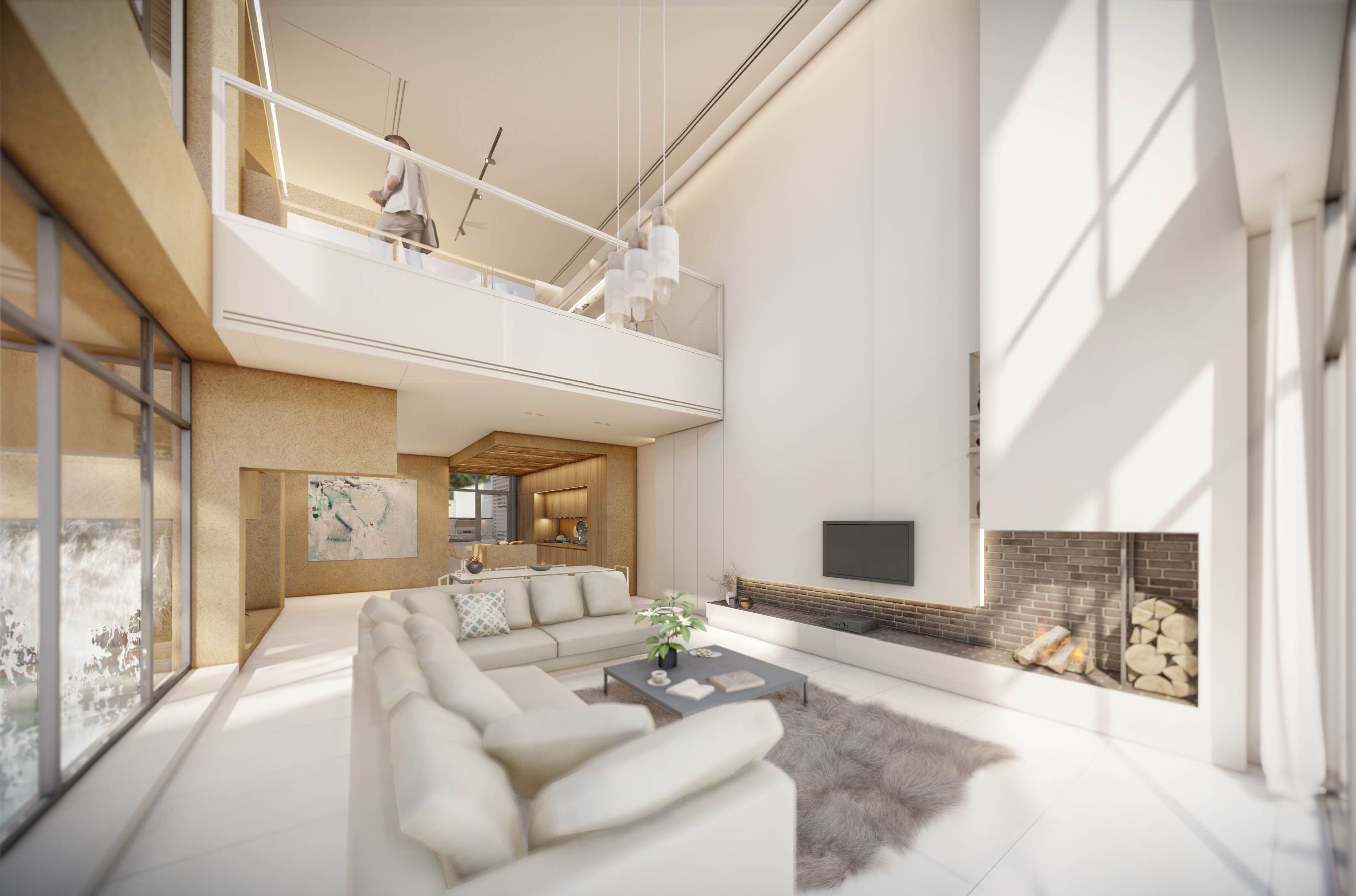

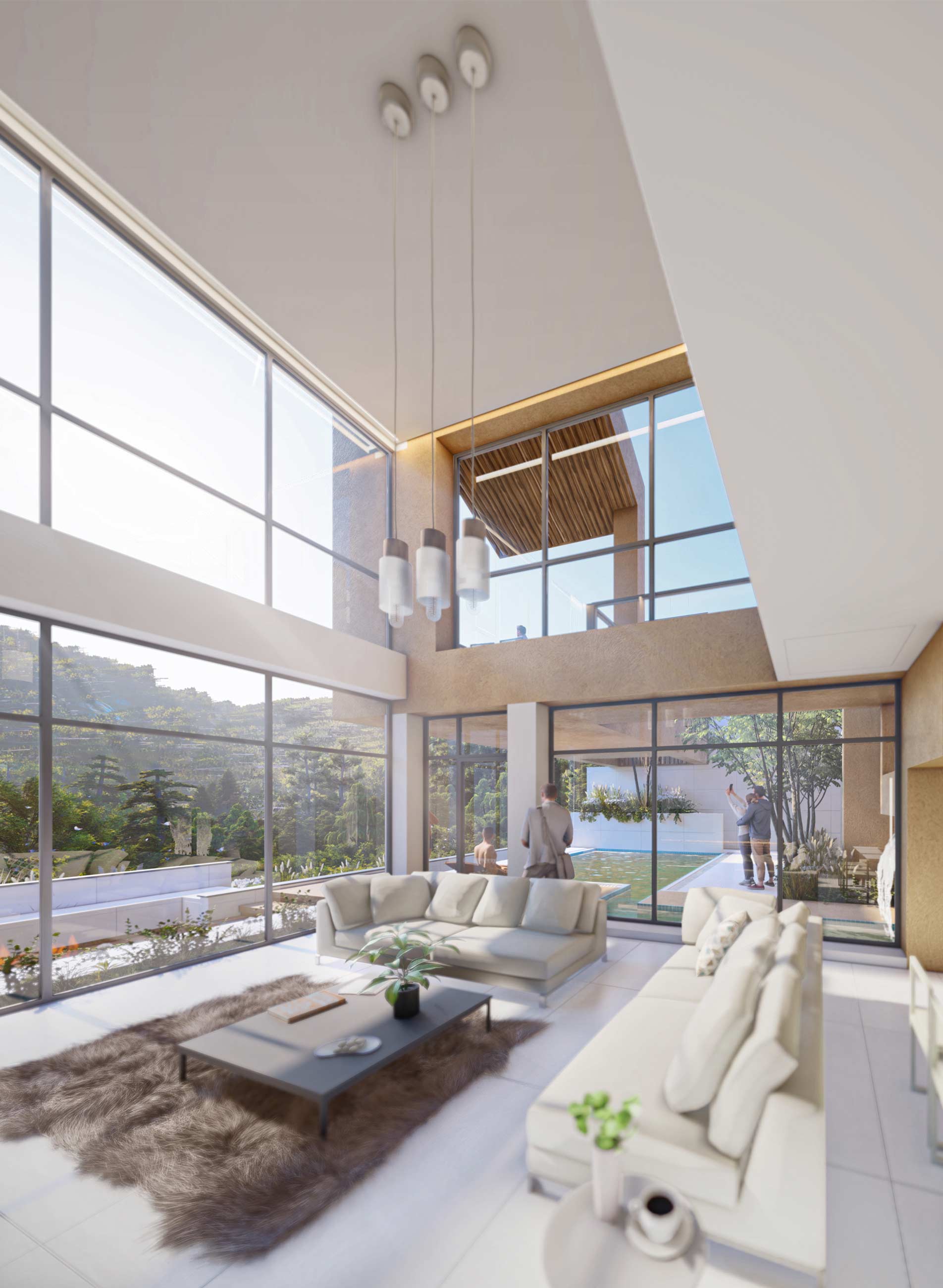

  • main living room, villa in Joukoulbandan

  • main living room interior, villa in Joukoulbandan
  • fire place, villa in Joukoulbandan

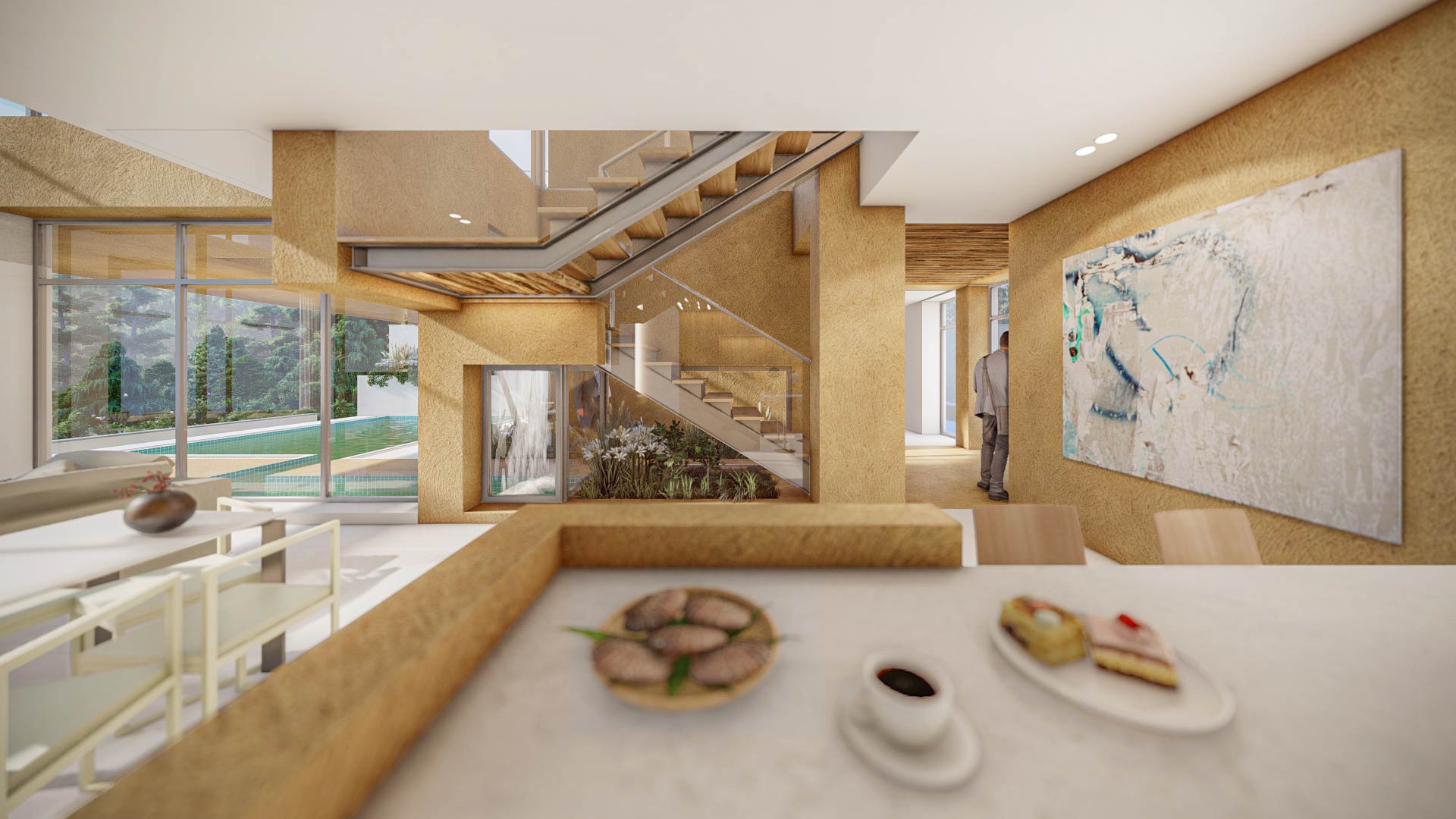

  • stairs, dining room, villa in Joukoulbandan
  • kitchen, villa in Joukoulbandan

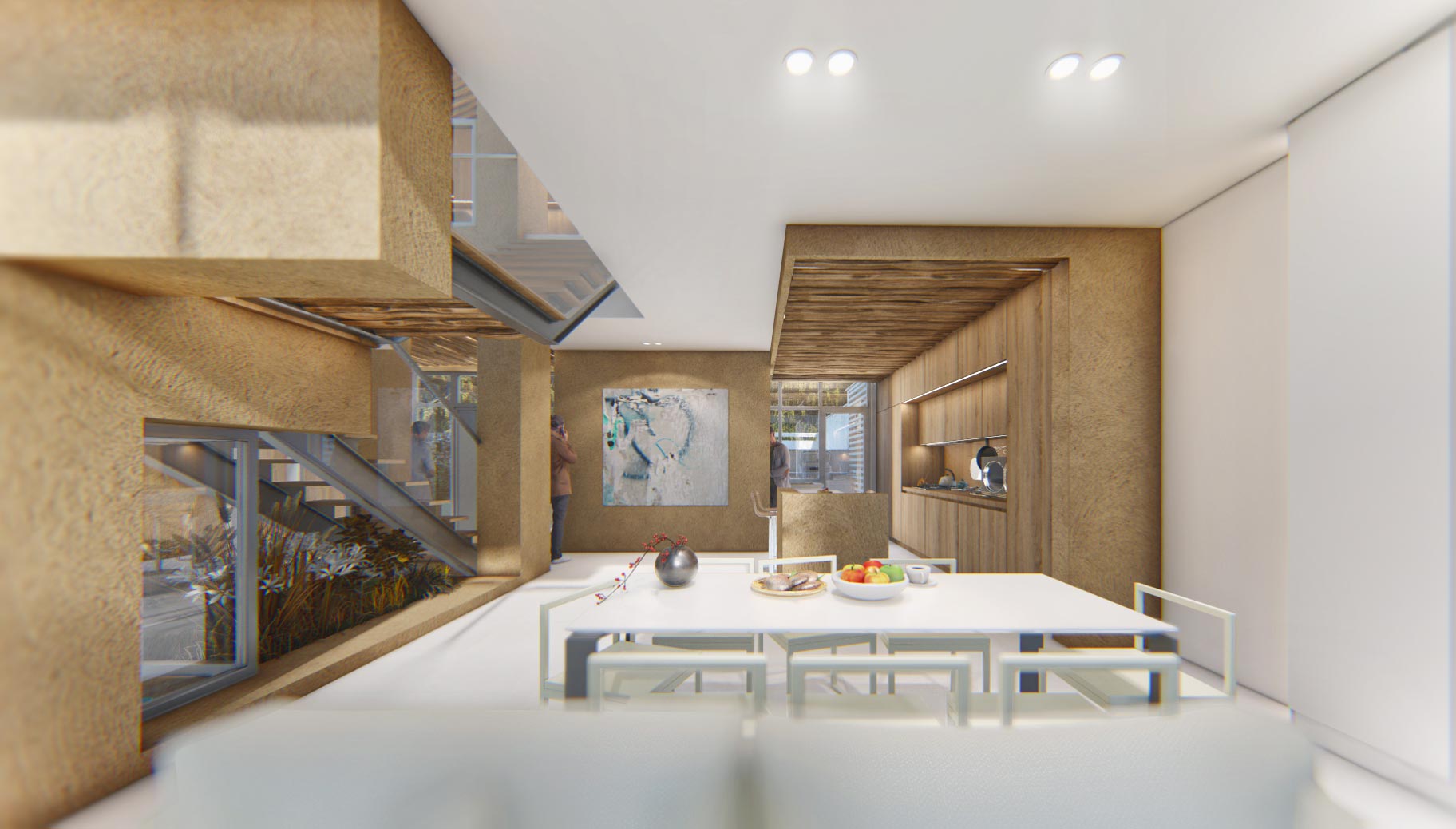

  • dining room, villa in Joukoulbandan
  • stairs, ground floor, villa in Joukoulbandan
  • first floor living room, villa in Joukoulbandan

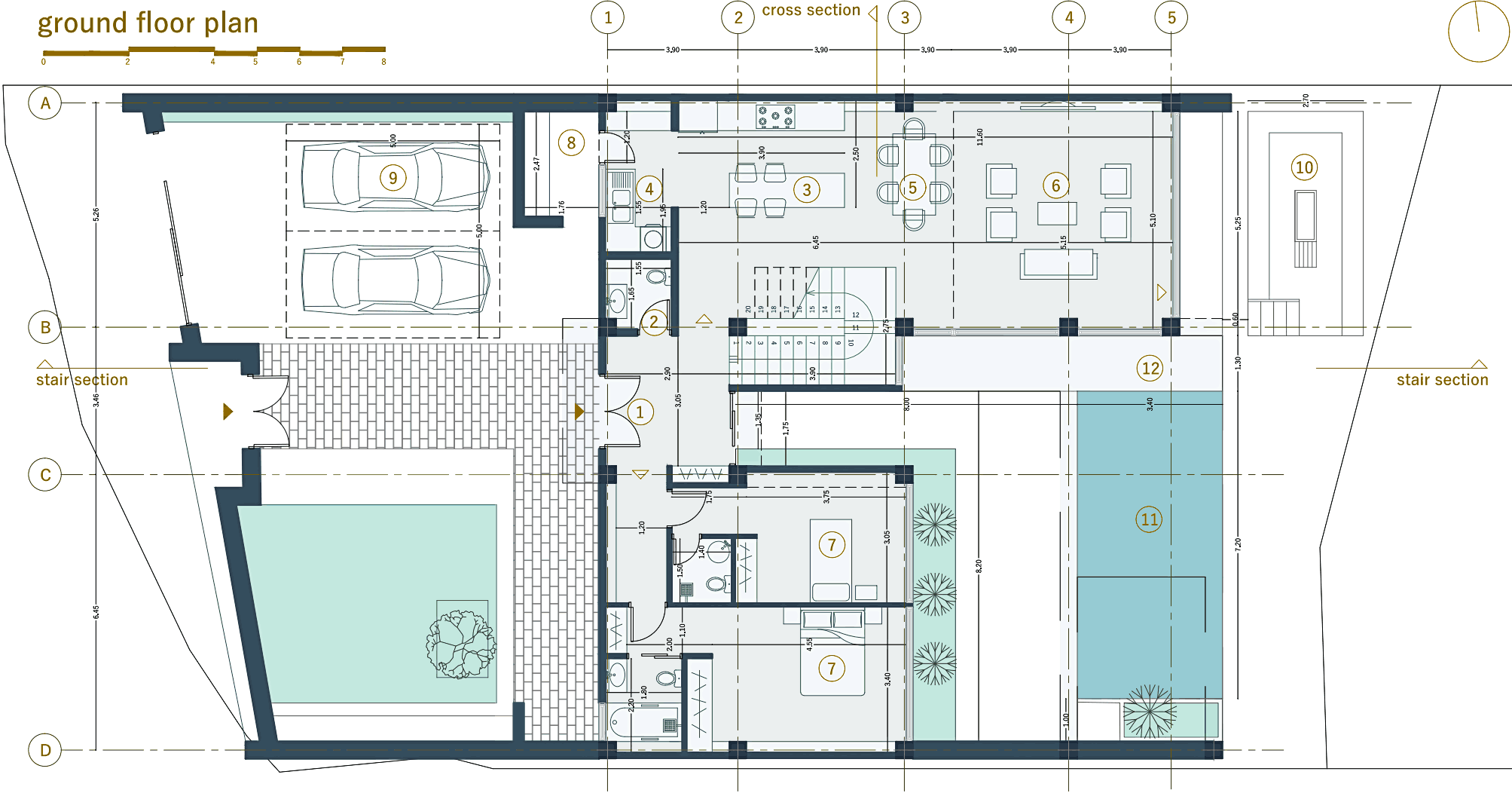

  • ground floor plan, villa in Joukoulbandan

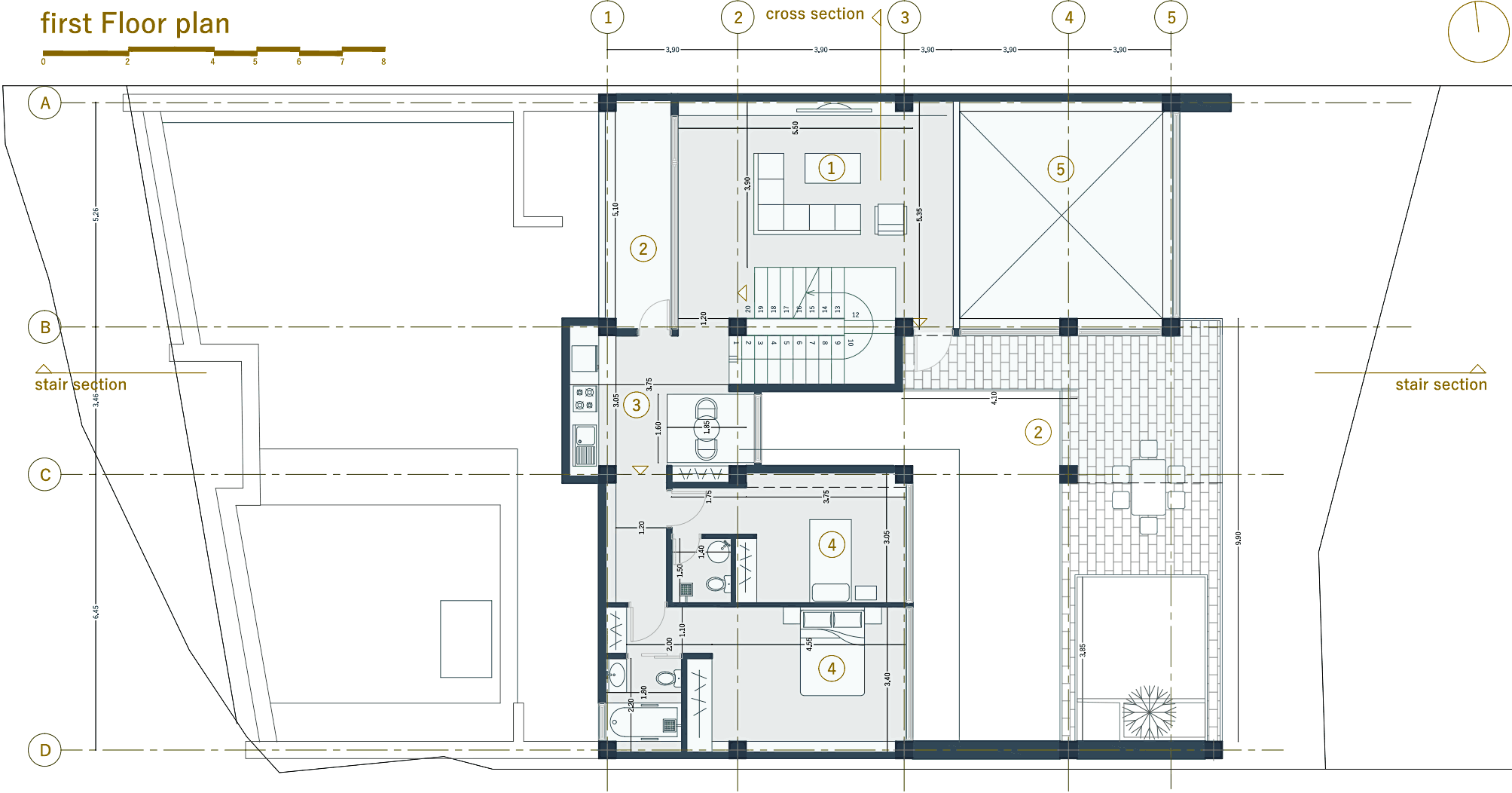

  • first floor plan, villa in Joukoulbandan

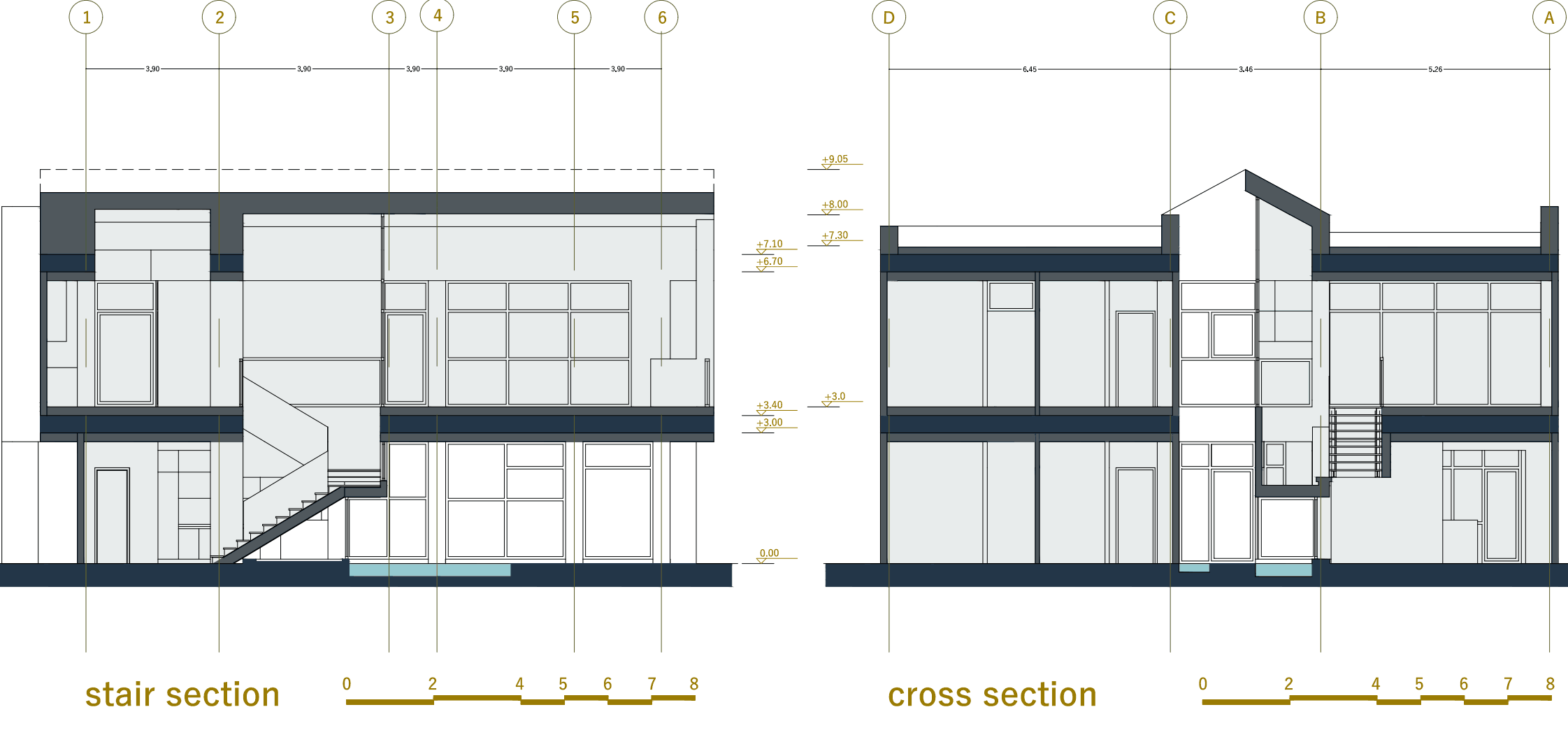

  • sections, villa in Joukoulbandan

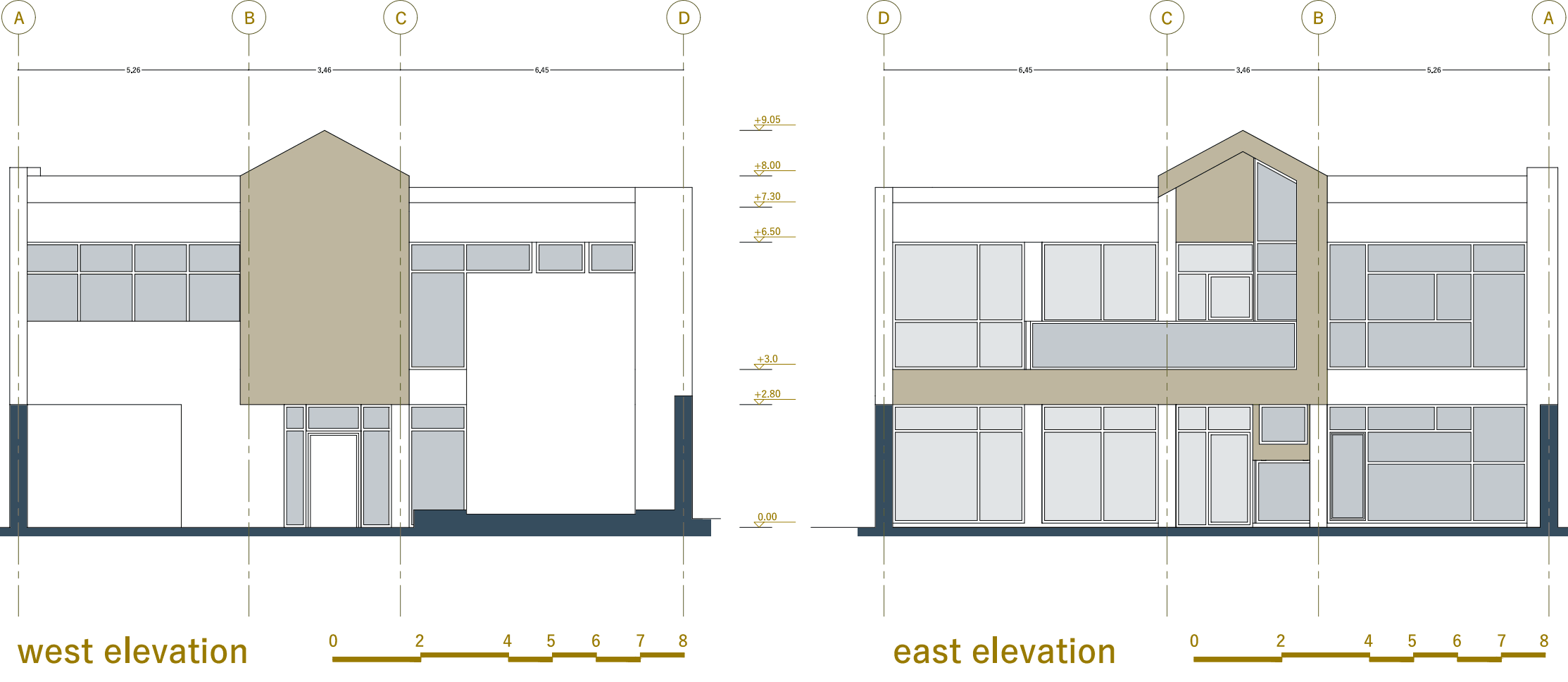

  • elevations, villa in Joukoulbandan
