  • About the Project:

    The project was located on a plot of approximately 240 square meters. Since part of the land belonged to natural resources, the building had to be placed in the middle. Next to it, there was another villa with west-facing windows, which had a full view of the project.

    We had two options: place the building on the eastern part, capturing western light, or place it on the western part, facing the neighbor's windows. We chose the latter. The challenge then was to limit the neighbor's view.

    Trees and plants were considered but not economically viable. Using a wall was another option, but a high wall required a supporting structure, which was costly. Our solution was to integrate the wall's supporting structure with the building's structure, allowing for a wall to control the view and space for planting trees.

    We reversed the common villa layout: public zones on the upper floor for scenic views and private zones on the ground floor for privacy. We created an opening on the ground floor, resulting in a covered balcony on the ground floor and an open balcony on the second floor, connecting the northern and southern yards.

    , a villa near a neighbour

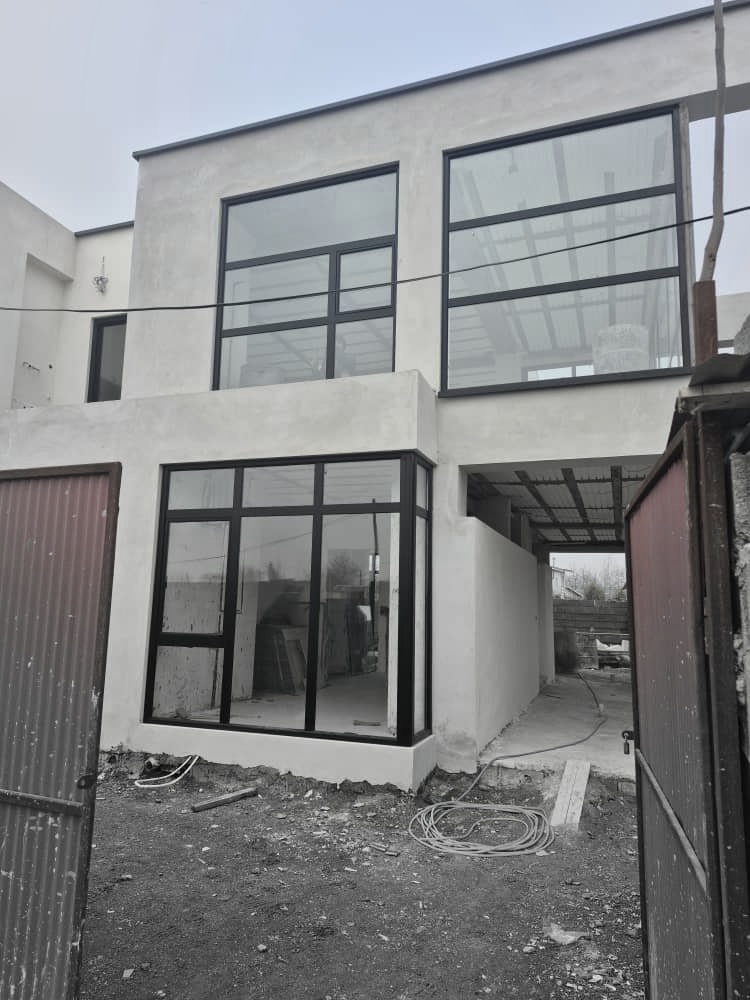

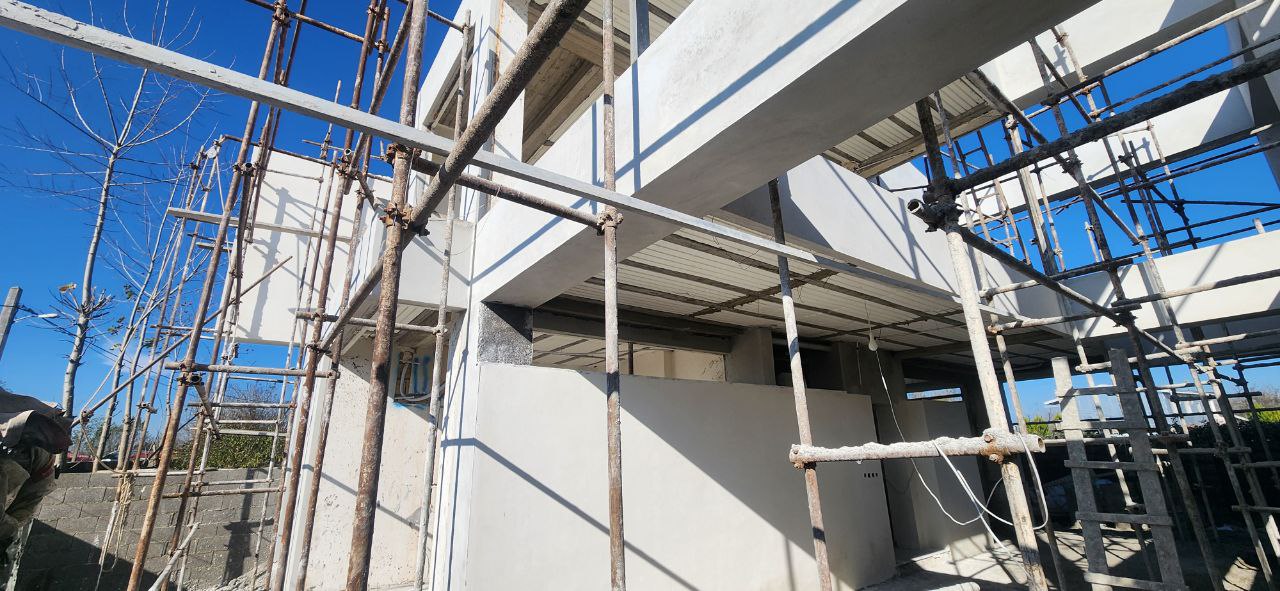

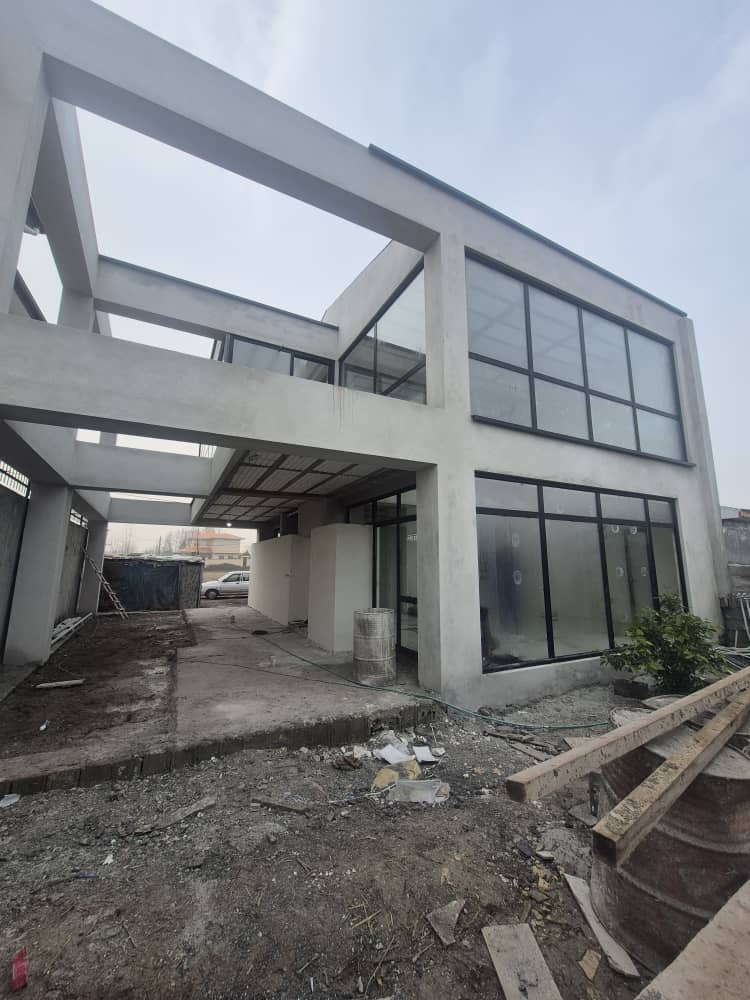

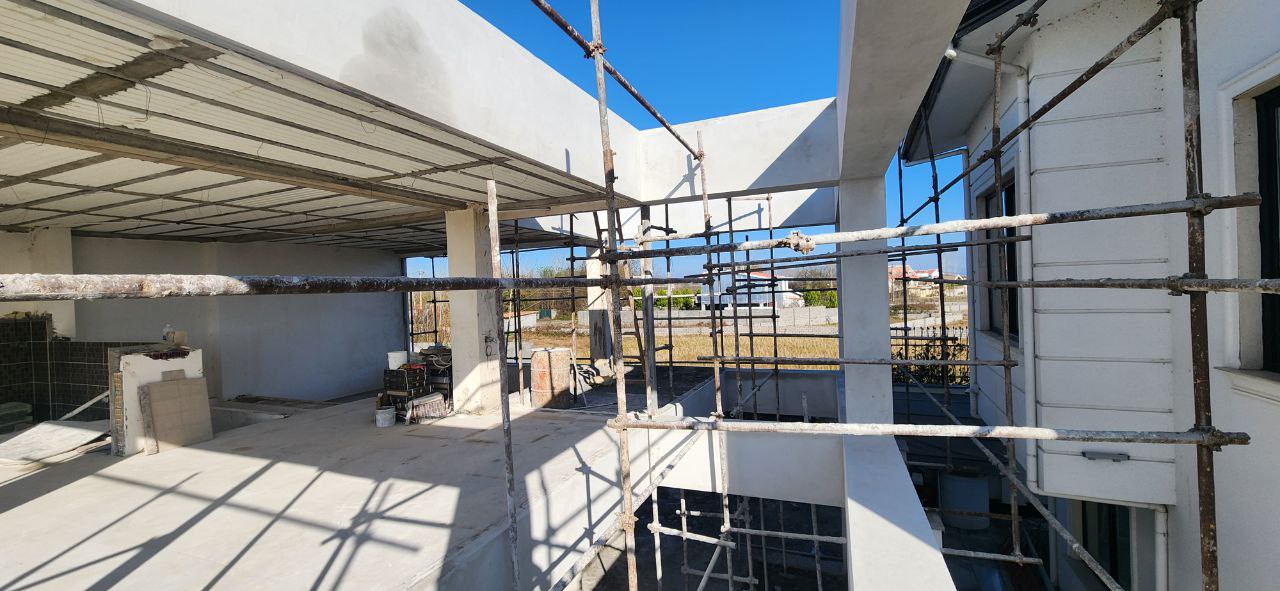

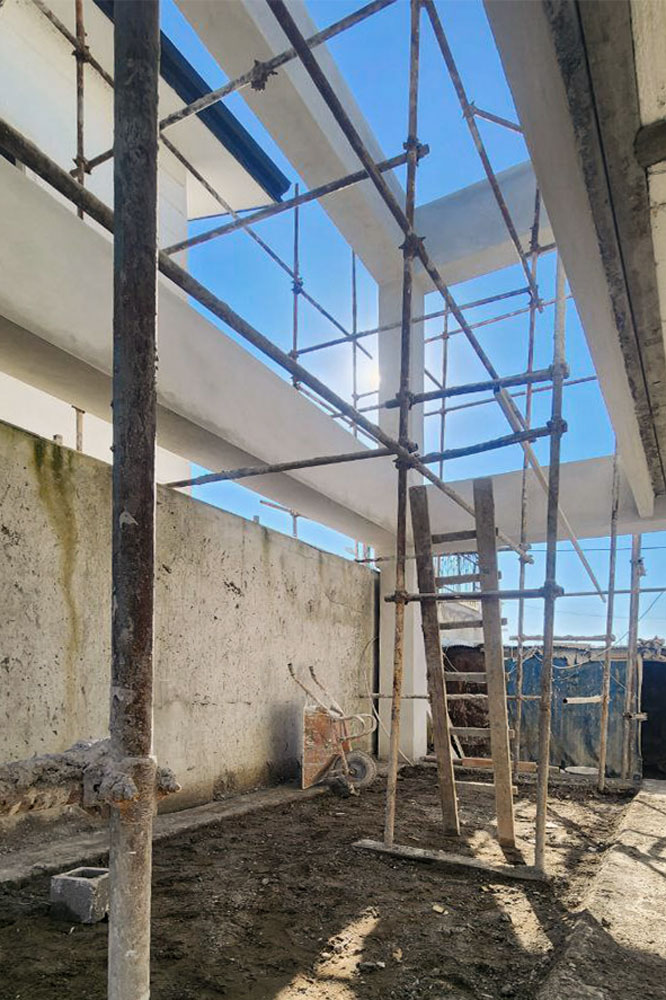

  • under construction, photo 1, a villa near a neighbour

    under construction, photo 2, a villa near a neighbour

  • under construction, photo 3, a villa near a neighbour
    under construction, photo 4, a villa near a neighbour
  • under construction, photo 5, a villa near a neighbour
    under construction, photo 6, a villa near a neighbour

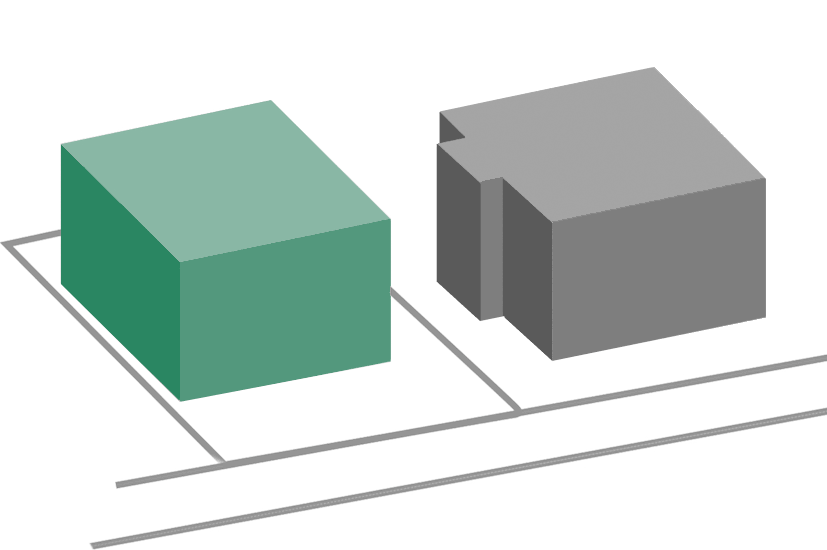

  • diagrm 1, a villa near a neighbour


    context

    the neighbour located near our building

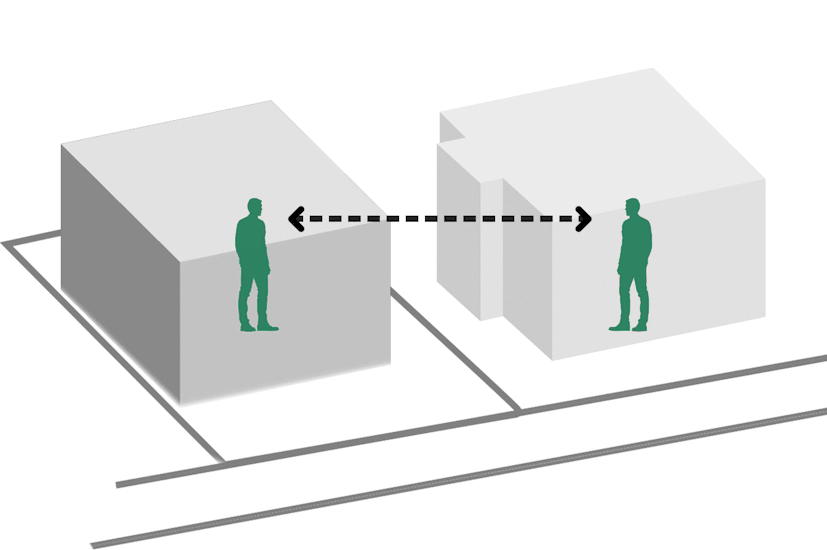

  • diagrm 2, a villa near a neighbour


    viewing each outher

    we should control the view

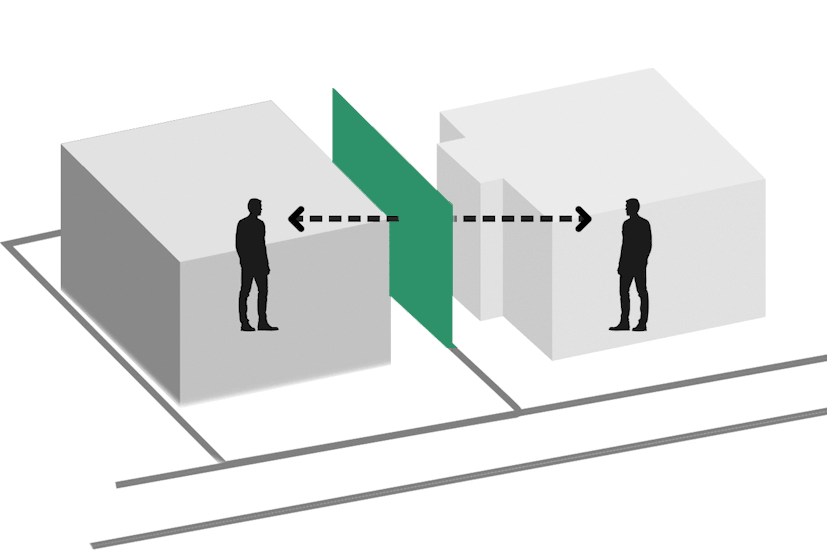

  • diagrm 3, a villa near a neighbour


    step 1 : block the view

    placing a wall between buildings, controlling privacy and view

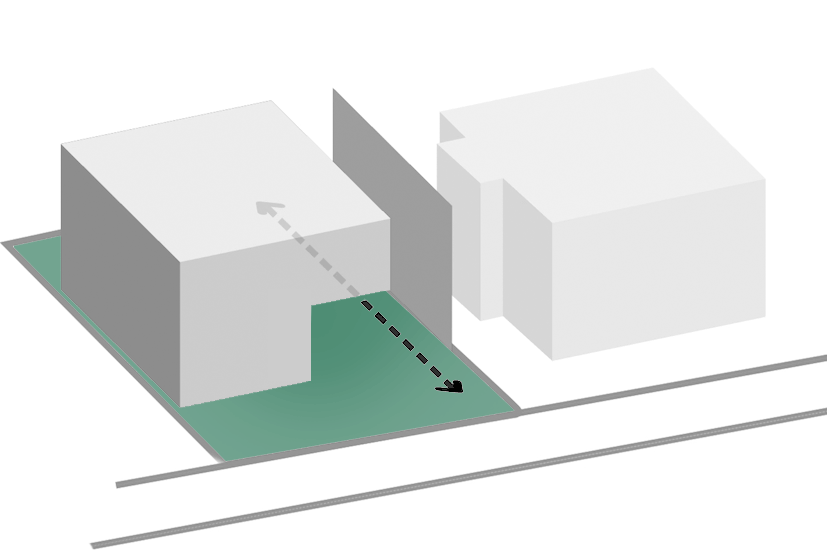

  • diagrm 4, a villa near a neighbour


    step 2: yards

    connecting two yards

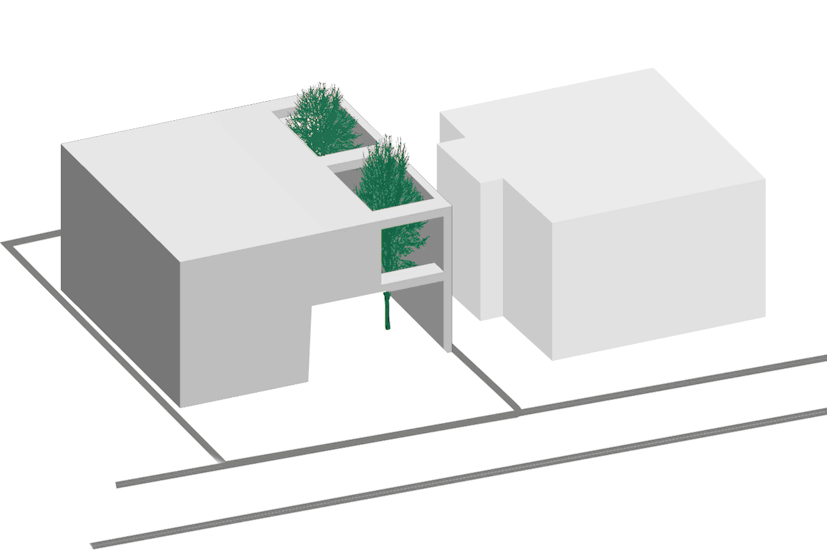

  • diagrm 5, a villa near a neighbour


    step 3 : a place for trees

    converting the wall between buildings into a place for trees, creating suitable atmosphere

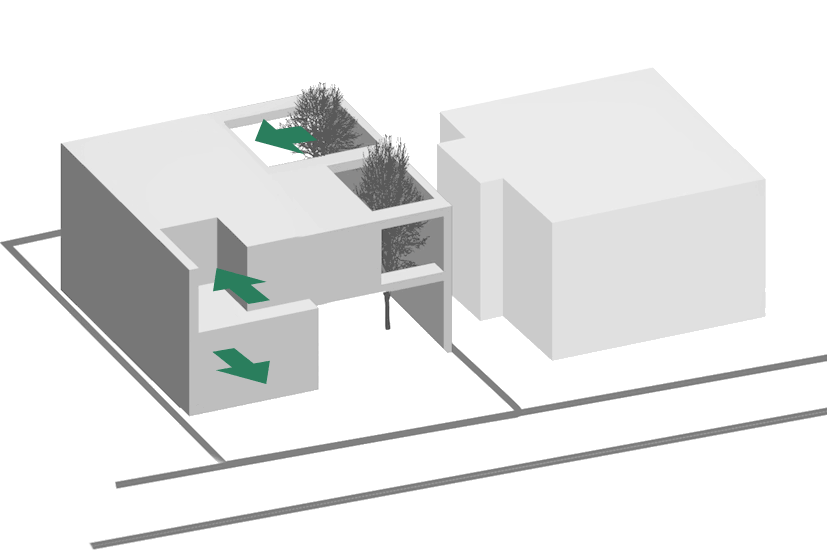

  • diagrm 6, a villa near a neighbour


    step 4 : final form

    shaping the building mass, designing the form

  • render day, a villa near a neighbour
  • render night, a villa near a neighbour
  • render exterior, a villa near a neighbour
  • render exterior, back yard, a villa near a neighbour

  • render fire place, a villa near a neighbour
  • trees, a villa near a neighbour
  • render interior 2, upper floor, a villa near a neighbour
  • render interior, upper floor, a villa near a neighbour

  • render interior 2, ground floor, a villa near a neighbour
  • render interior 3, ground floor, a villa near a neighbour
  • render interior, ground floor, a villa near a neighbour
  • render bed room, a villa near a neighbour

  • render master bed room, a villa near a neighbour
  • render bath room, a villa near a neighbour

  • render wc, a villa near a neighbour

  • render day, a villa near a neighbour

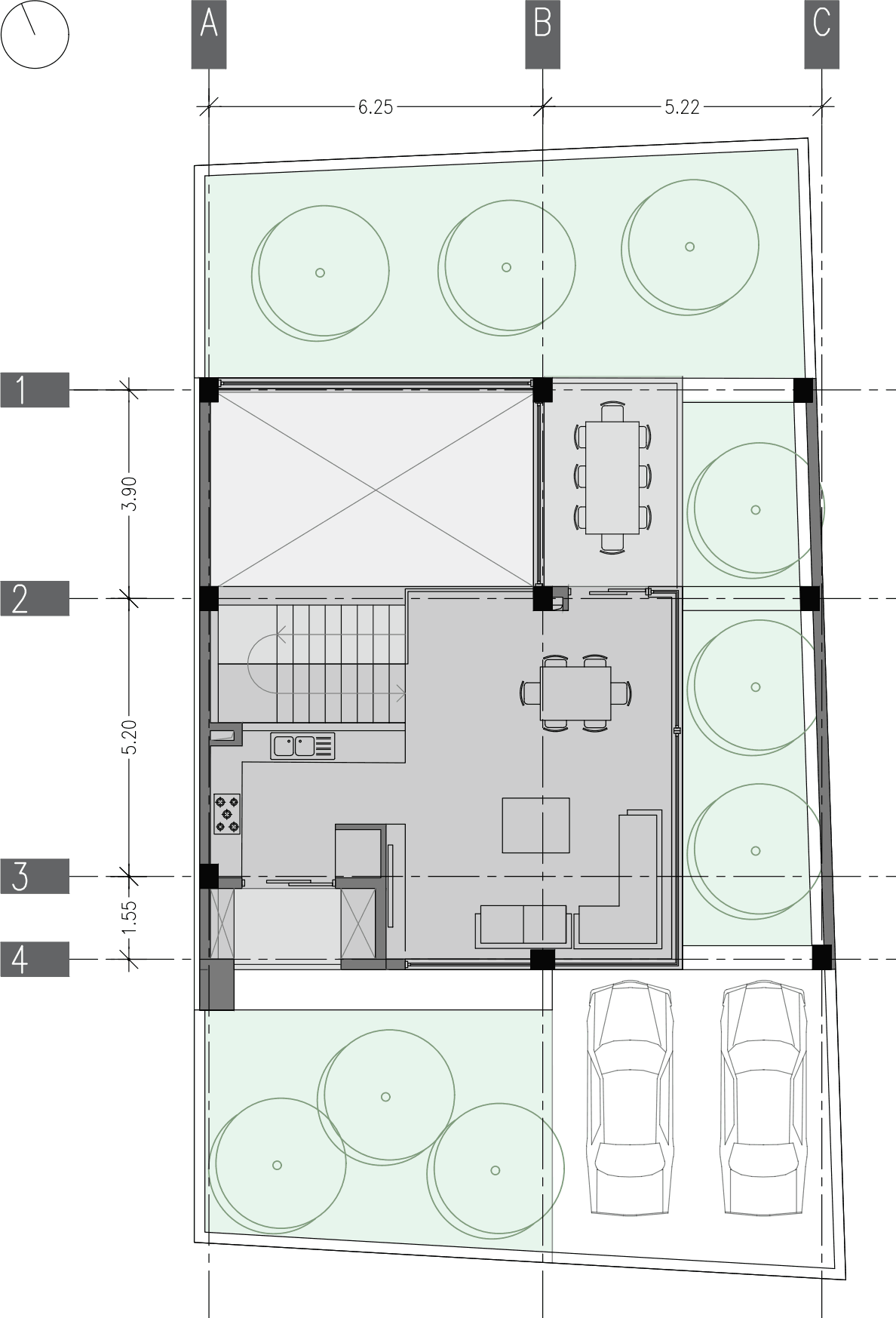

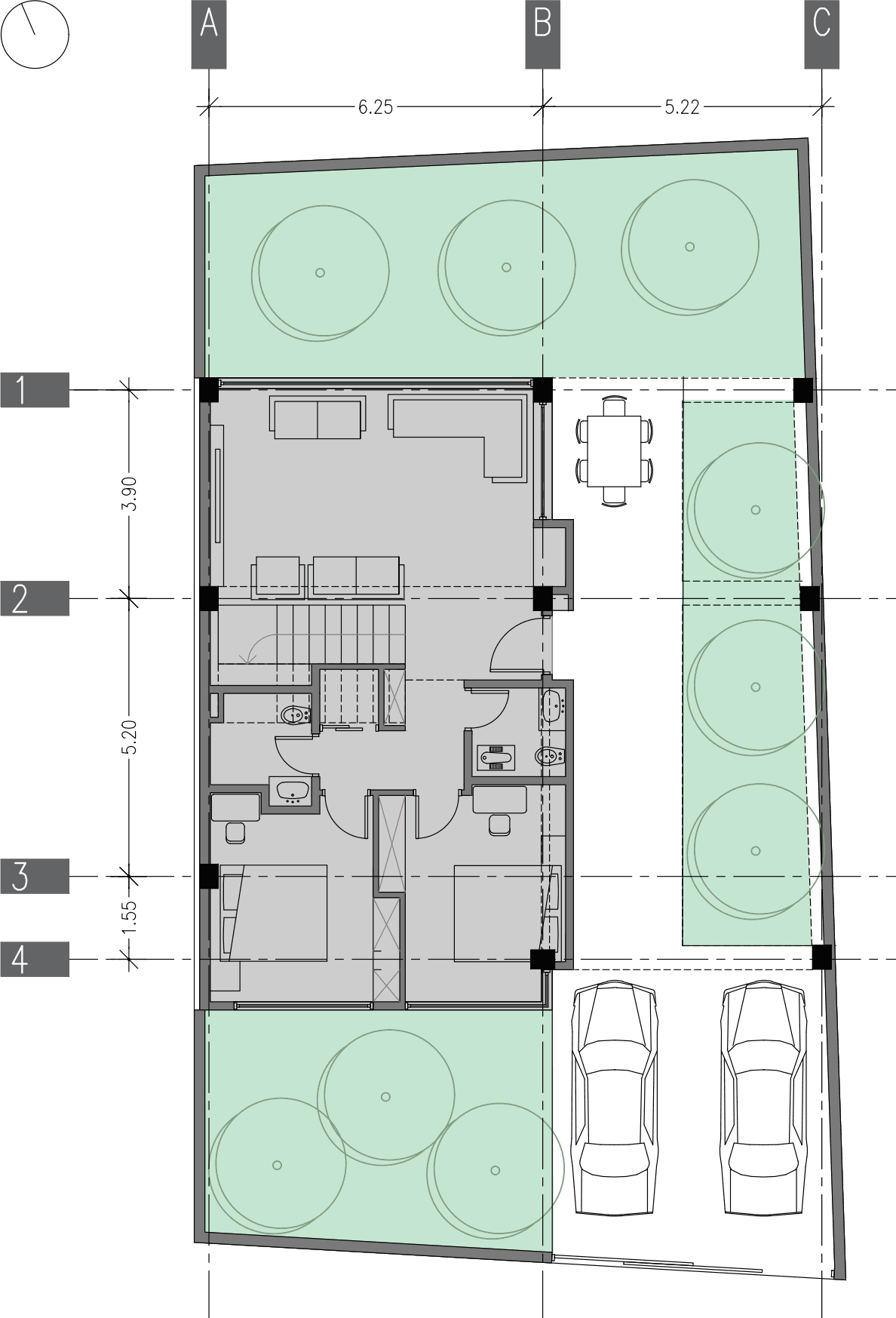

  • ground floor plan , a villa near a neighbour

    ground floor plan
  • first floor plan , a villa near a neighbour

    first floor plan
