Chapel in "Sea trips" parkgo back to all projects

  • What Muslims say about praying is:

    Praying: Gateway to Heaven,
    Liberation from the Dark Pit of the World
    And we wanted to design the project based on that to demonstrate these concepts.

    In the midst of the city's hustle and bustle, humans cannot focus on the authentic and redemptive messages for long. However, on a holiday in the heart of nature, it is the best time to contemplate inner states and the spiritual aspects of life. People in such conditions feel a greater connection with God and see themselves at the center of creation. They touch the nature that God has created. Therefore, when we pray, we can look around and see God as an observer everywhere...

    In the sound of water, in the rustling of leaves, and in the chirping of birds that also praise God. Prophets always chose solitude for their worship, and the cave was an exceptional place that brought this quality; a space of mystical seclusion. Thus, the idea of the "cave" metaphor has been utilized in the interior space.

    pray room in water and fire park

  • water and faire park in tehran water and faire park in tehran

    a Park which is themed by Maritime Journeys

    The approved plan intends to construct prayer rooms aligned with the specific concepts of each thematic park. These prayer rooms will not only provide recreational and tourist spaces but also create spaces to fulfill the spiritual and worship needs of visitors.

    Client's Requirements:

    1- Ensure the designed volumes are consistent with the concept of the Maritime Park.

    2- Adhere to architectural decorum suitable for a worship space.

    3- Evoke a sense of closeness and friendship with nature.

    4- Attract visitors as an urban space.

  • diagram

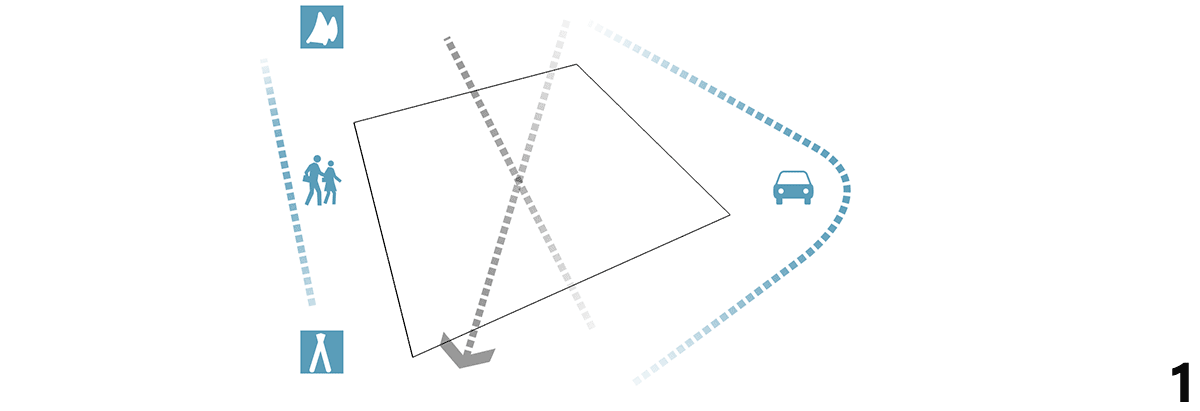

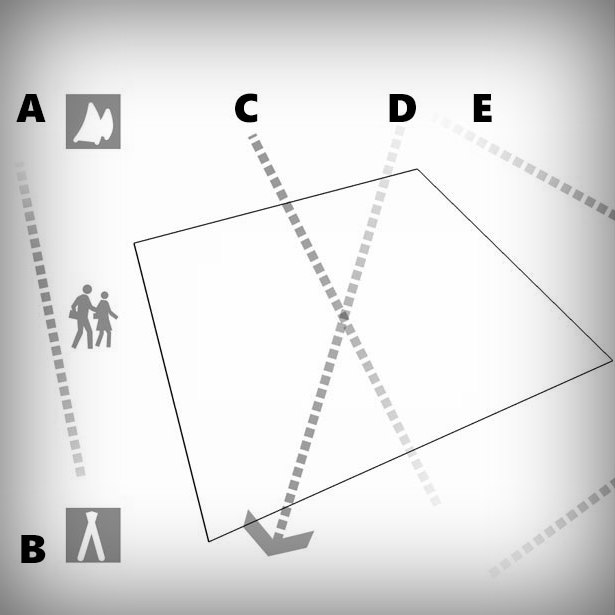

    First Step

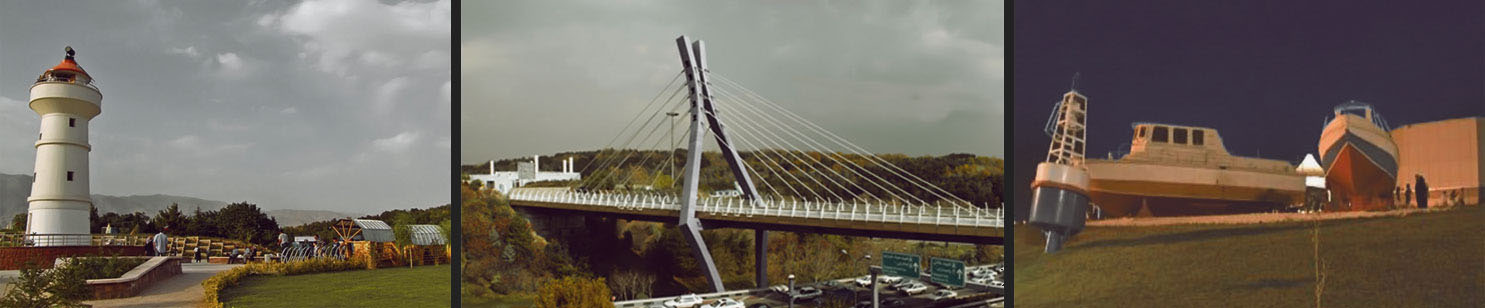

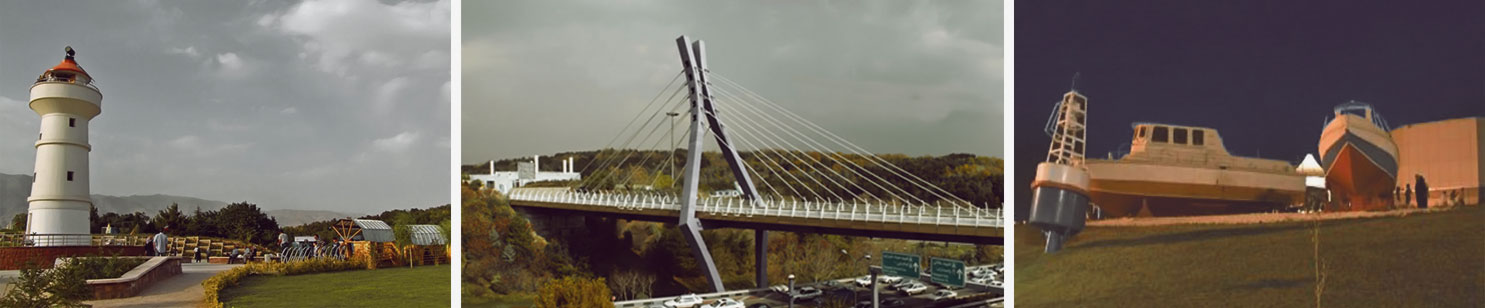

    Important and Influential Buildings and Axes:

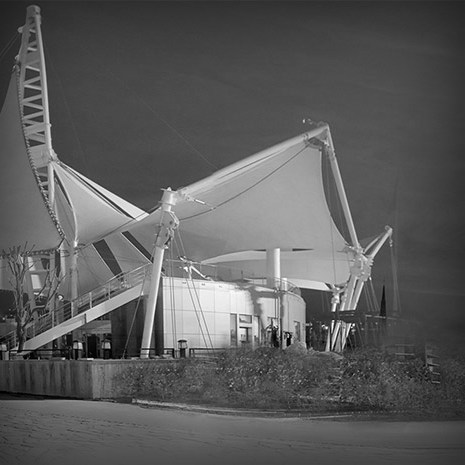

    a. Building with a sail form     , b. Pedestrian bridge (with two symmetrical forms)
    , c. Project site plan axis     , d. Qibla axis     , e. Highway axes

  • diagram

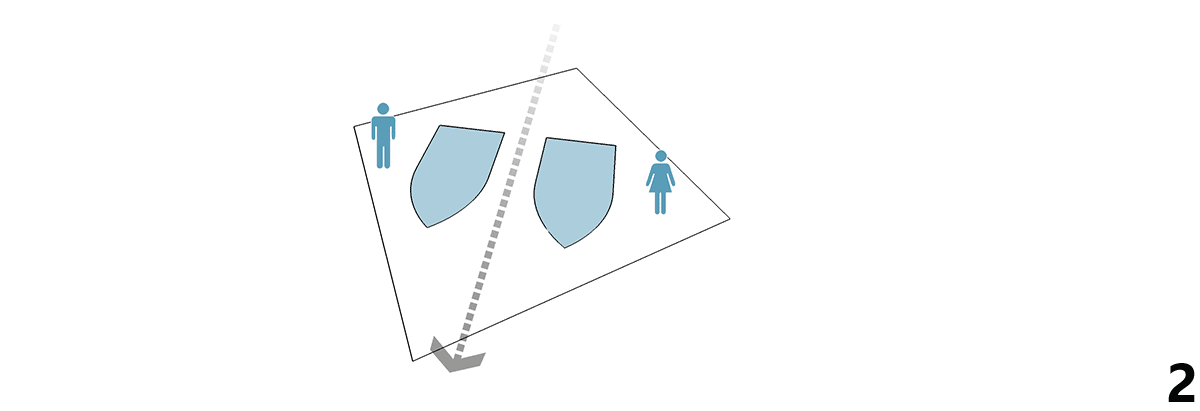

    Second Step

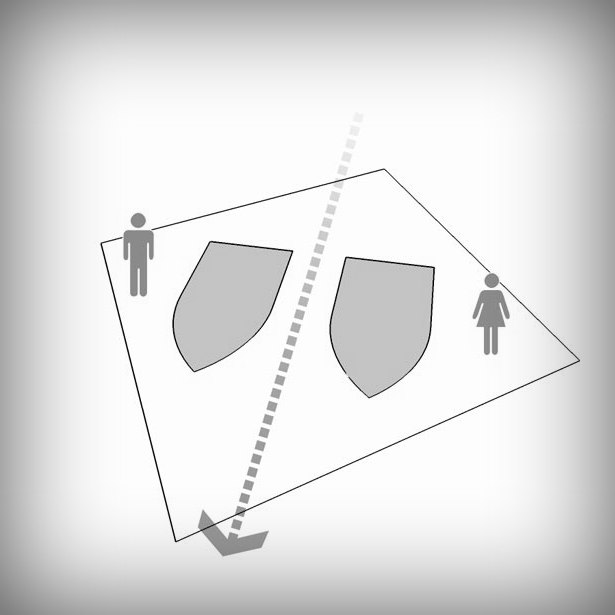

    Placement of two separate prayer spaces for women and men along the Qibla axis.

    Pang-o-haft (Five and seven) arches: Islamic Iranian architecture.

  • diagram

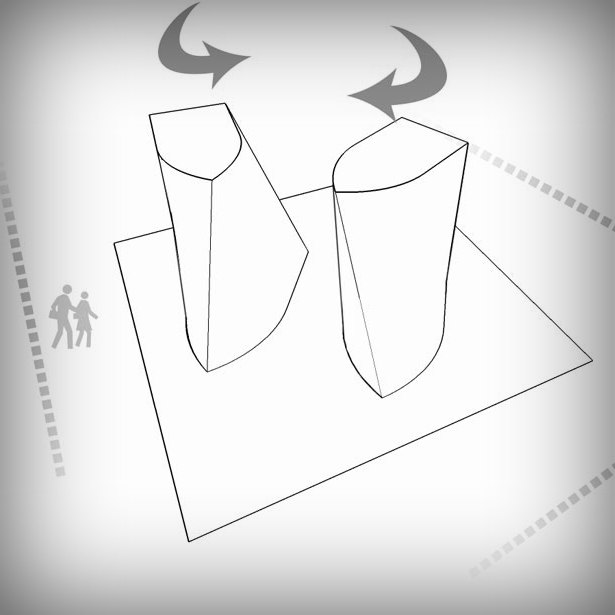

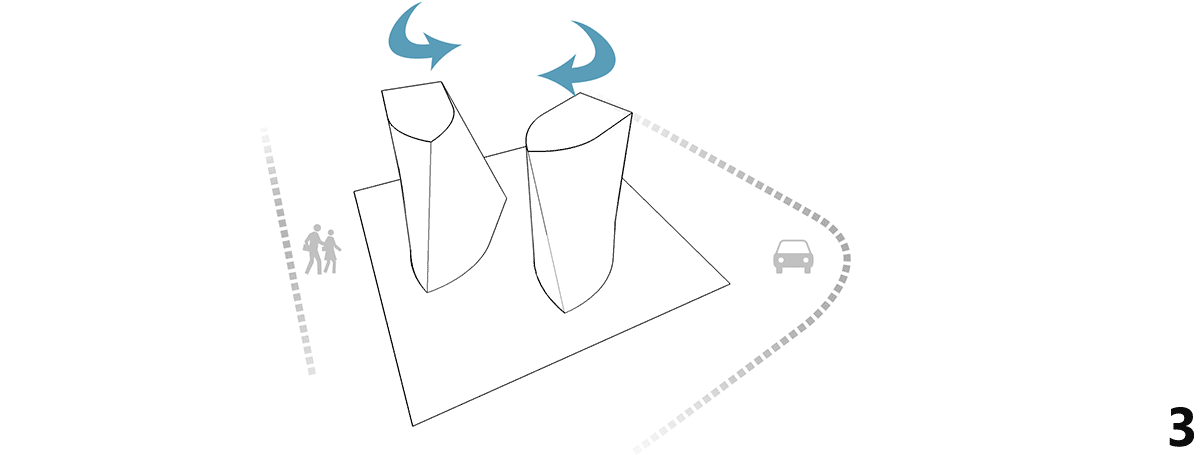

    Third Step

    Transforming the surface into volume and rotating the volumes based on the site's axes.

    Harmonizing with the project's context (pedestrian path and highway).

  • diagram

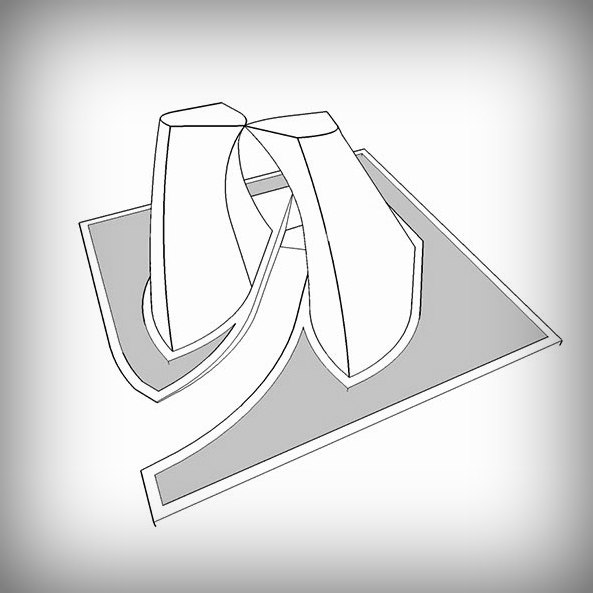

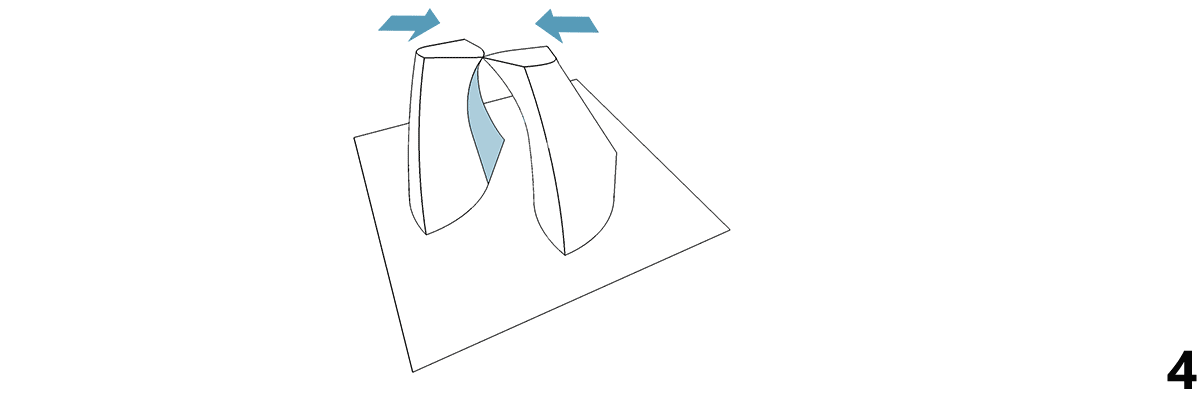

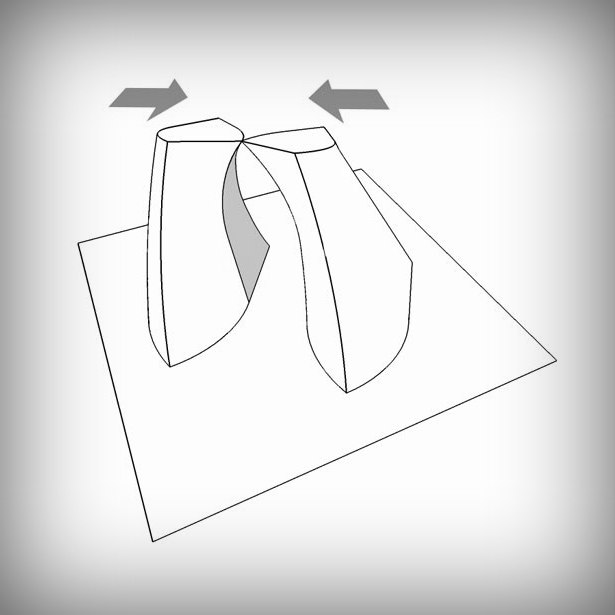

    Fourth Step

    Repositioning the elements and bringing them closer together to form a gate-like shape.

    Worship as a gateway to heaven.

  • diagram
    Fifth Step

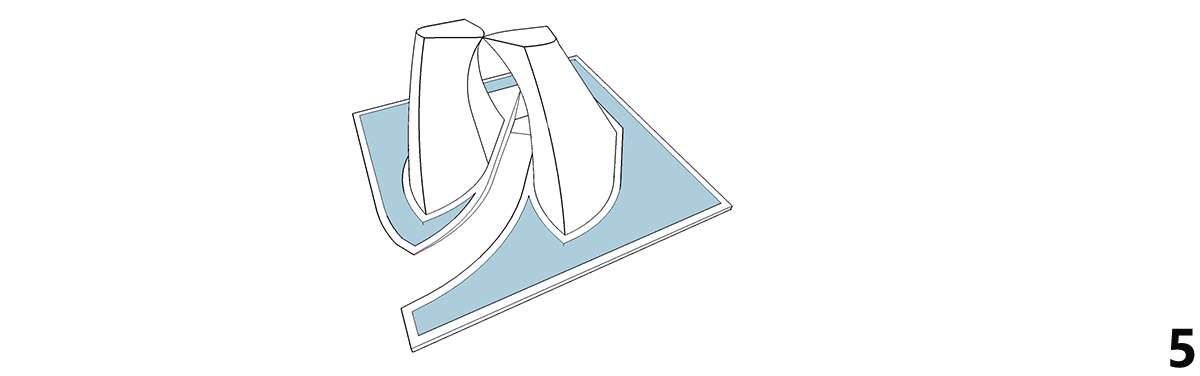

    Positioning the spaces underwater (symbolizing purification and cleanliness).

    Purifying the worshippers using the fluidity and softness of water (In Islam, water is sacred and valuable.).

  • diagram

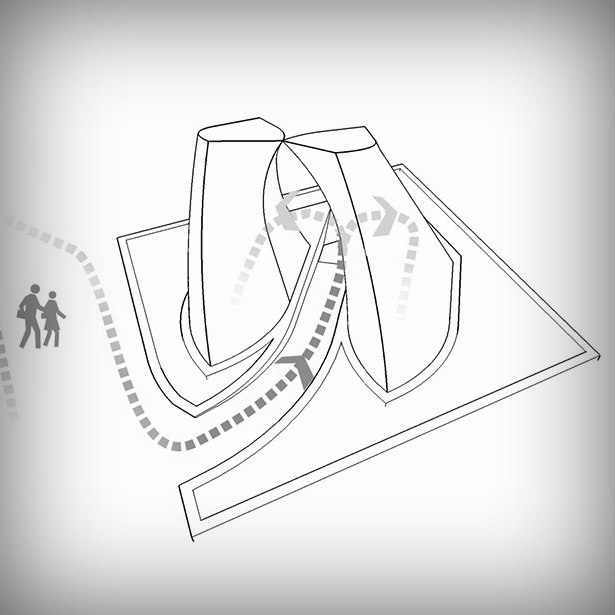

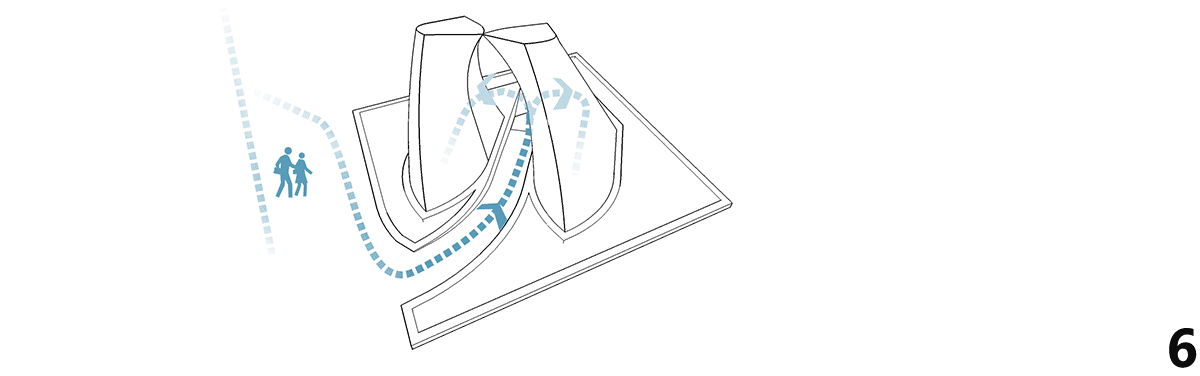

    Sixth Step

    Separating the worshippers' entrance from the park's crowd and noise, creating a hierarchy of perception.

    It was the purity of oblivion that called me By the water's edge I took off my shoes and sat With my feet in the water.

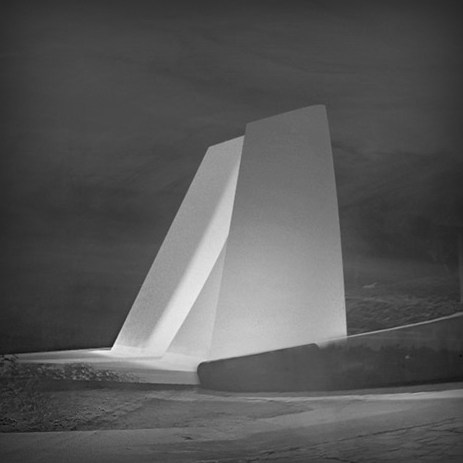

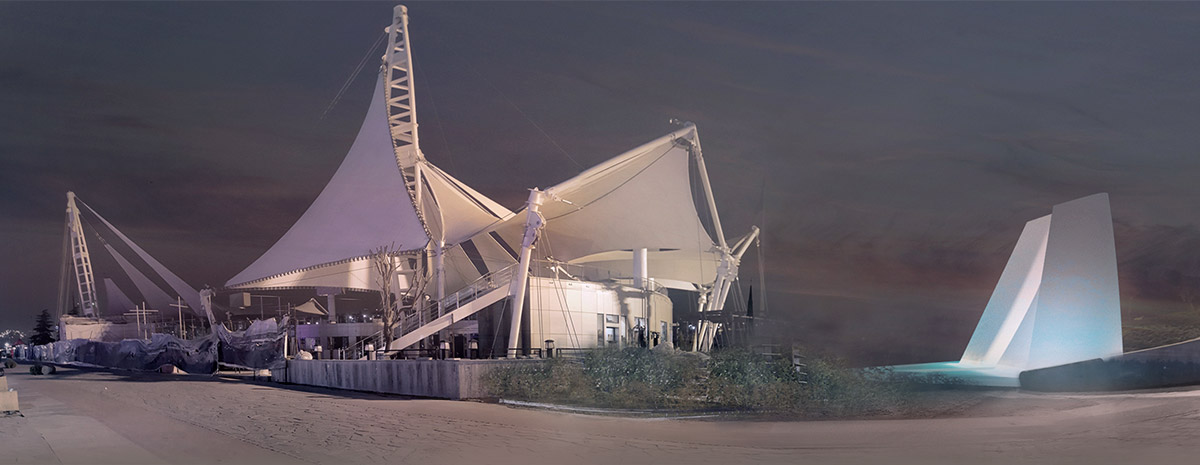

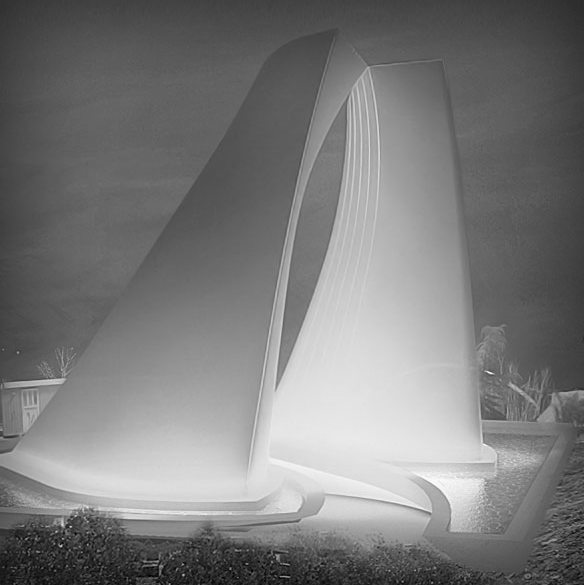

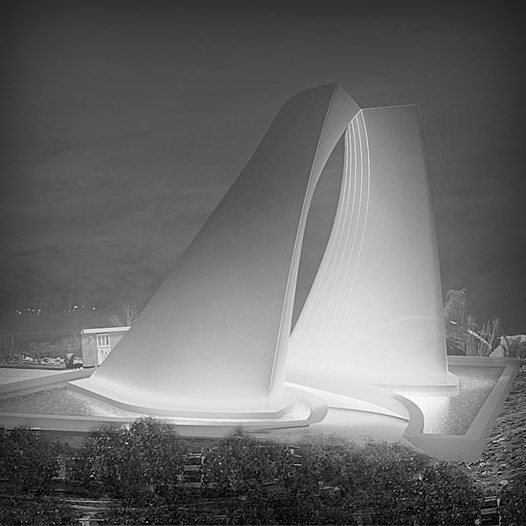

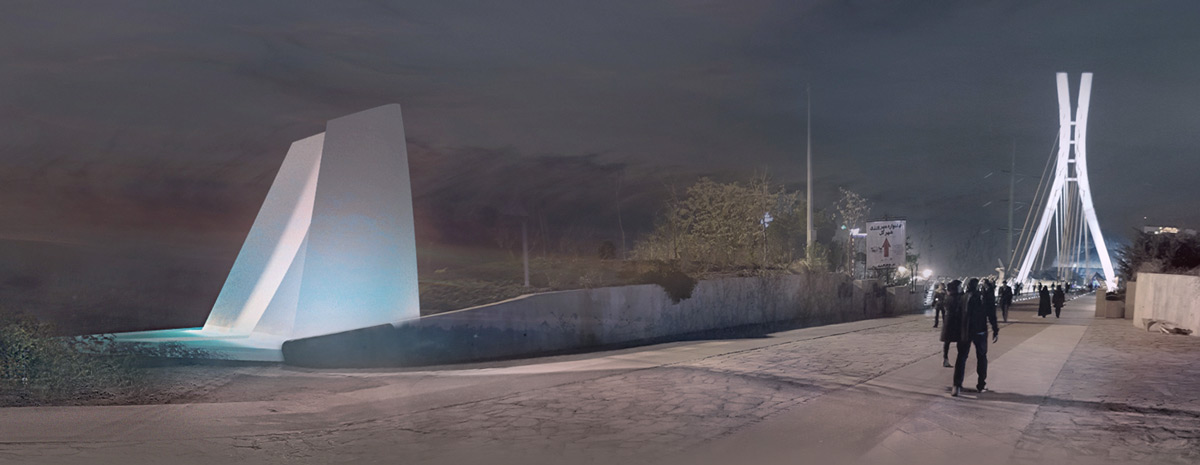

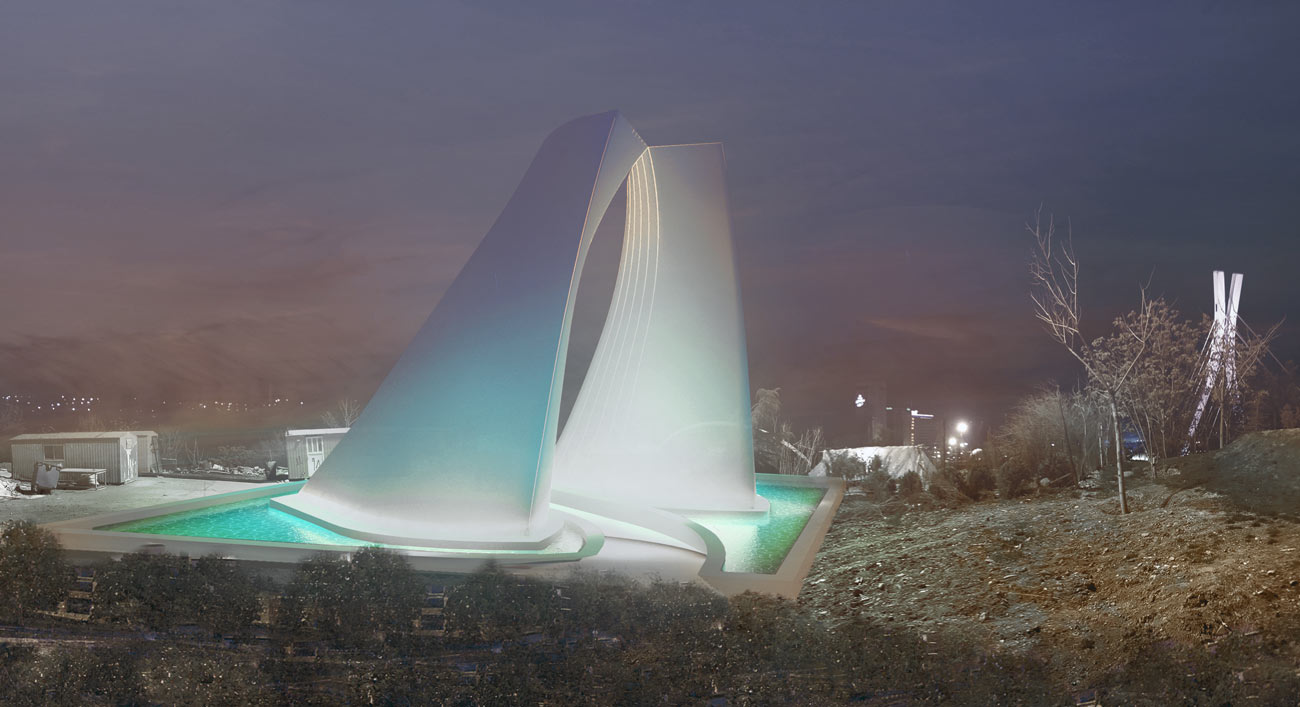

  • render
  • render
  • render
  • render
  • diagram

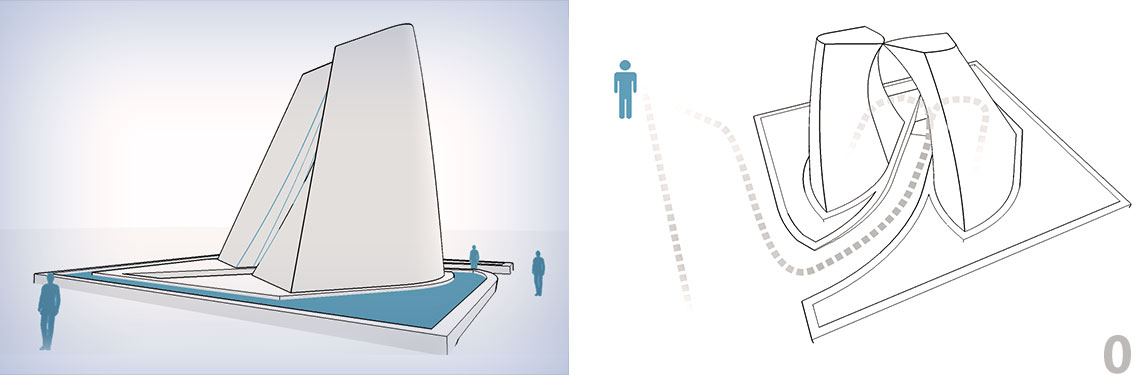

    Stages of Project Interaction with the Audience and Its Perception Process
    Journey to the Realm of Meaning in the Sequences of Experiencing the Space

    In Mysticism, the Universe Rises with a Hierarchical Order from the Existence of a Single Truth

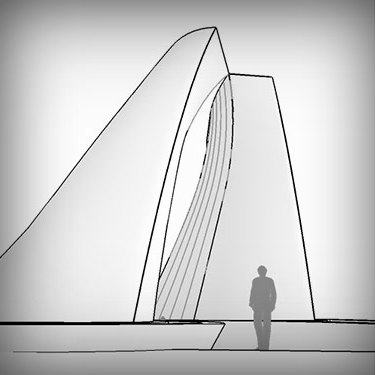

  • diagram

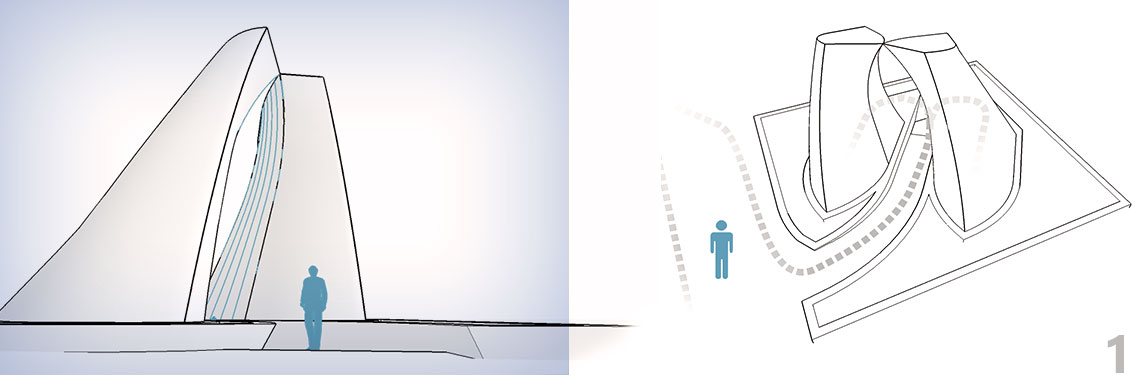

    First Sequence

    Evocation of a boat and its sails

    Encountering the Form of the Prayer Hall as the Ark of Salvation from the Material World

    ou are my comfort and my soul, You are my safe and secure ark
    (A human addressing and feeling this towards God)


  • diagram

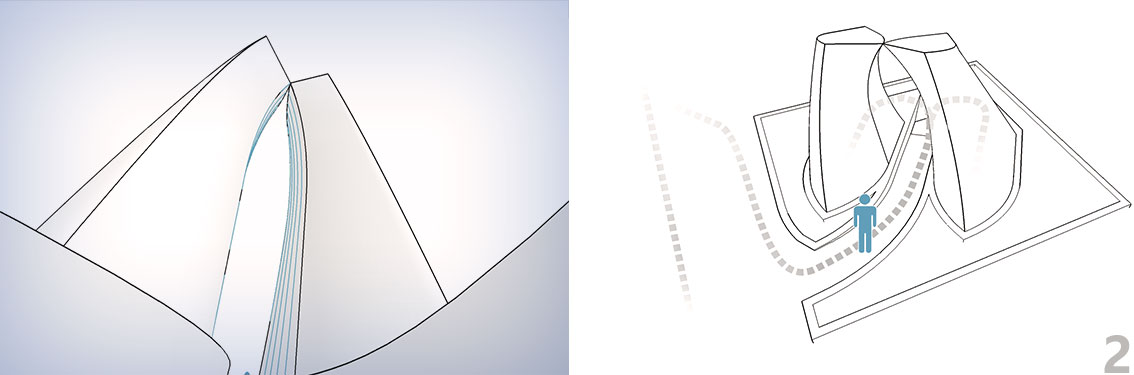

    Second Sequence

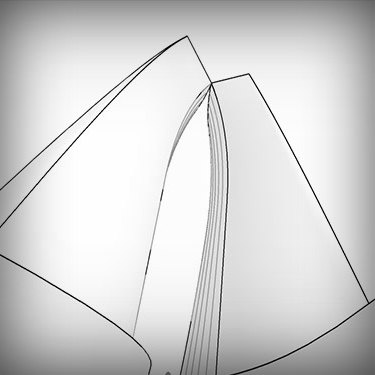

    Gradual Transformation of the Boat into a Gate

    Praying is the gateway to heaven
    (This sentence is one of the famous Muslim slogans.)


  • diagram

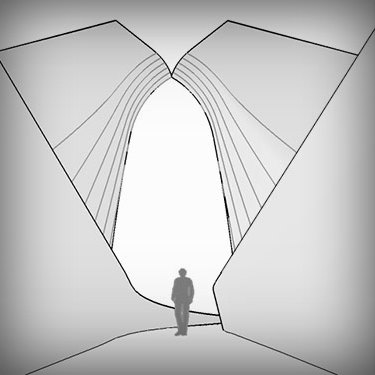

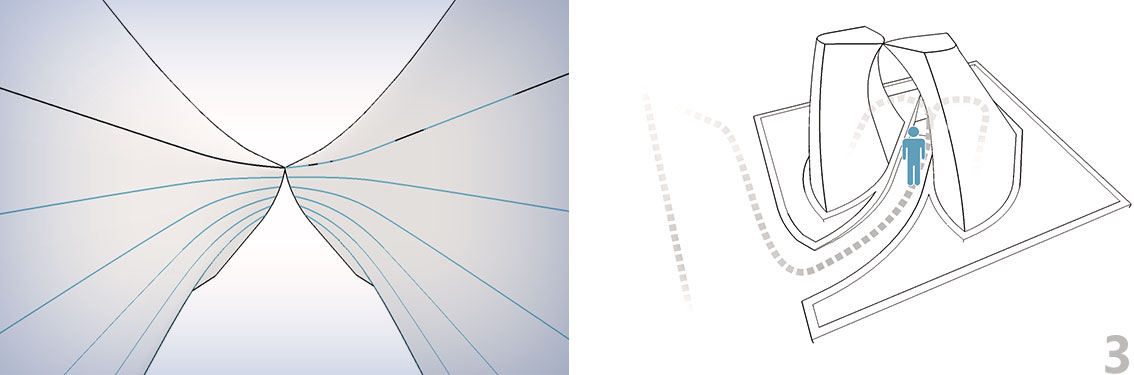

    Third Sequence

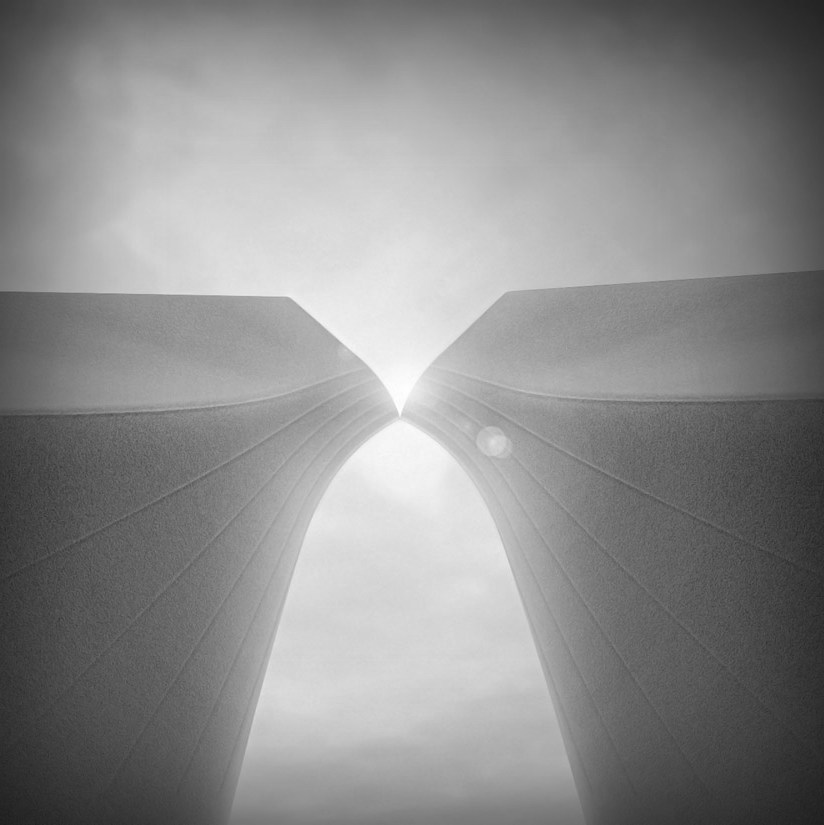

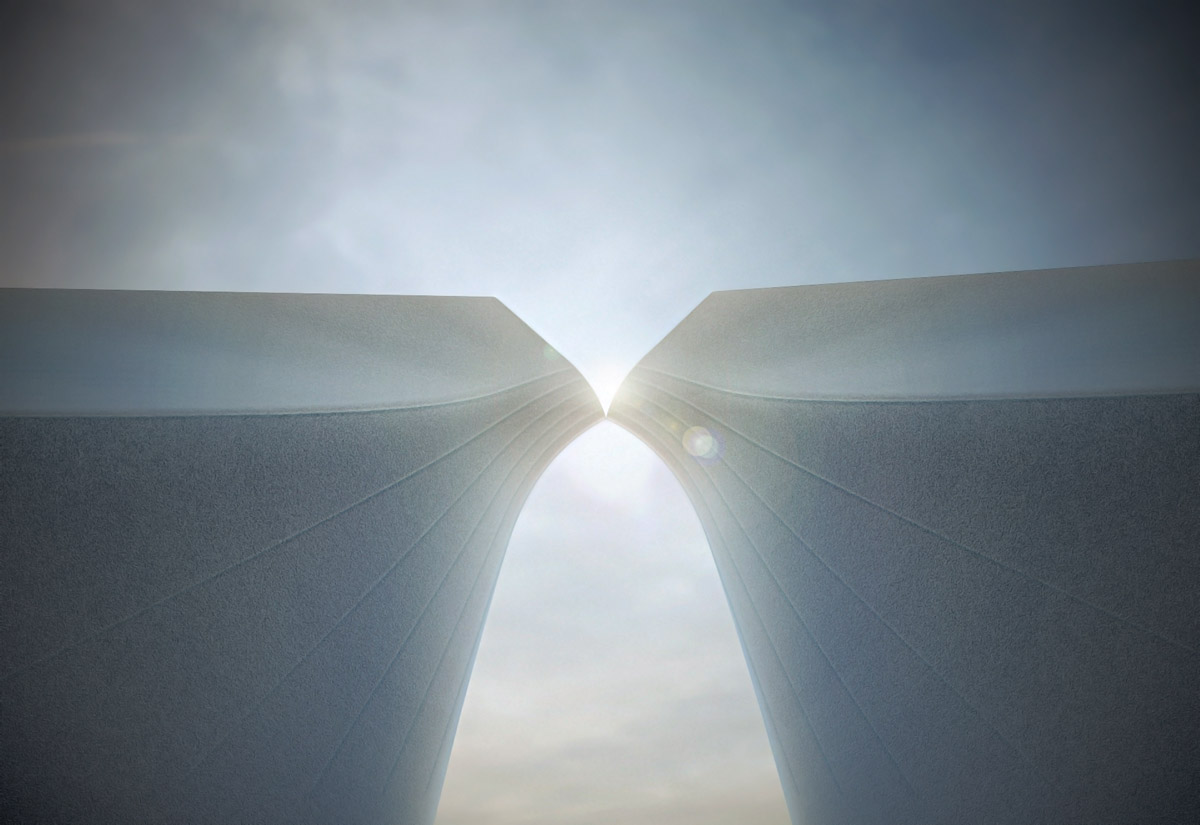

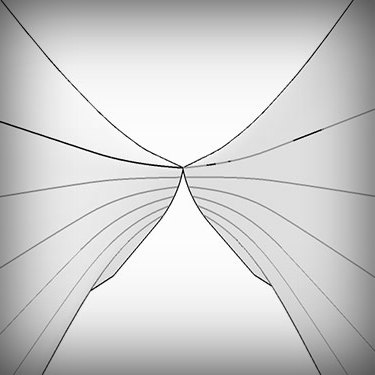

    Passing Under the Gate of Heaven, Forgetting the Busy External Environment

    Feeling the Majesty of the Creator (God)


  • diagram

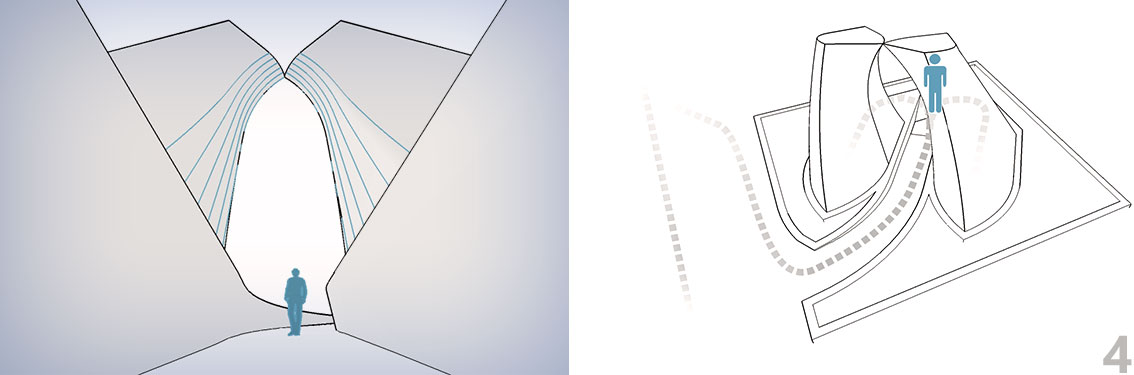

    ّFourth Sequence

    Detaching from the world and cleansing the dust of worldly affairs while moving through the calming waters

    Let's leave behind the desert of good and bad Let's be, like a stream, a flowing mirror Take me back to the childhood joy of waters

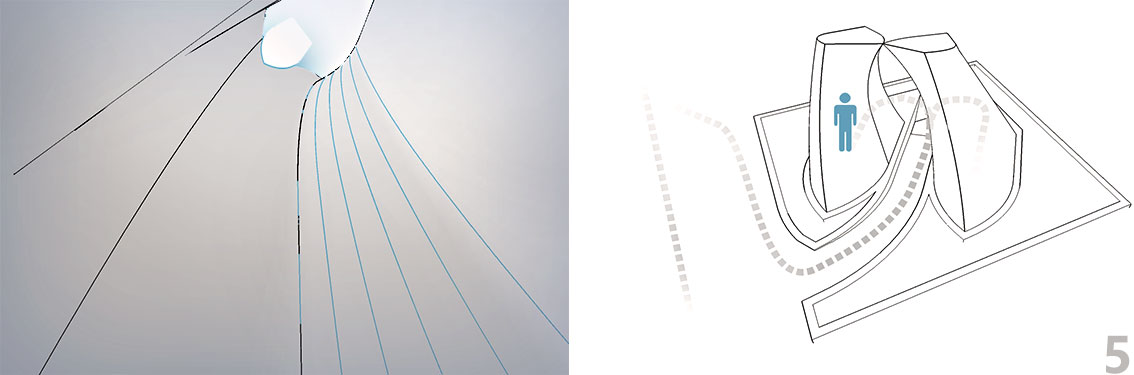

  • diagram
    Fifth Sequence

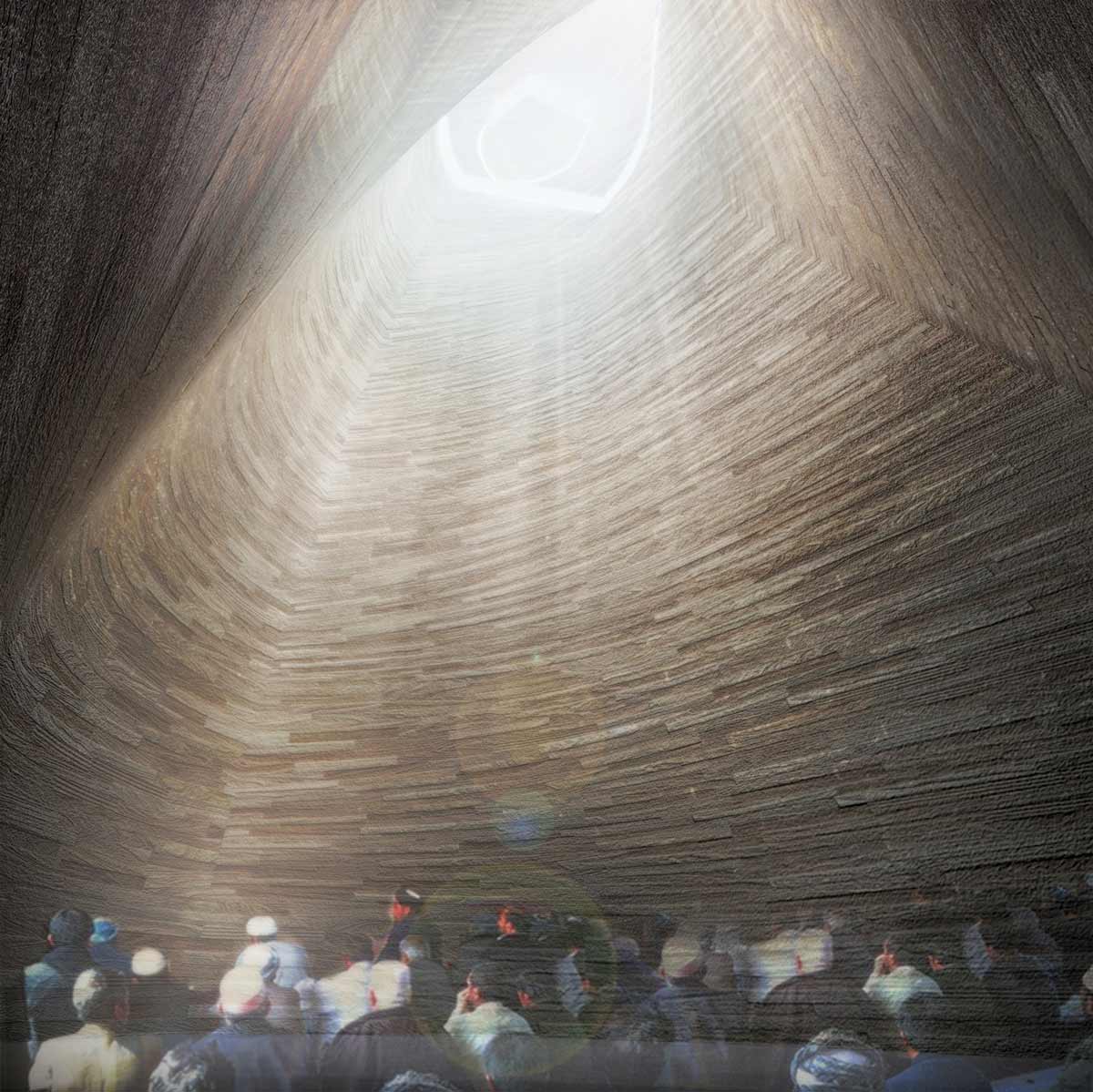

    Entering the Prayer Hall, Feeling the Presence in the Dark Pit of the World, and Seeing the Light of God

    One must rise from this dark pit to see the world (A poem by a famous Iranian poet)

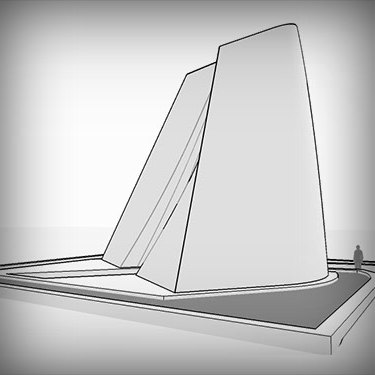

  • render
  • interior render

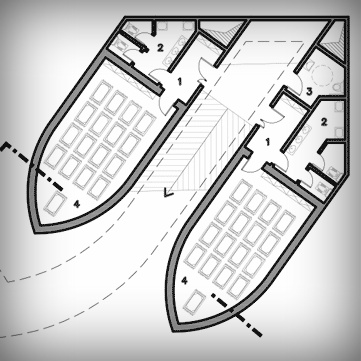

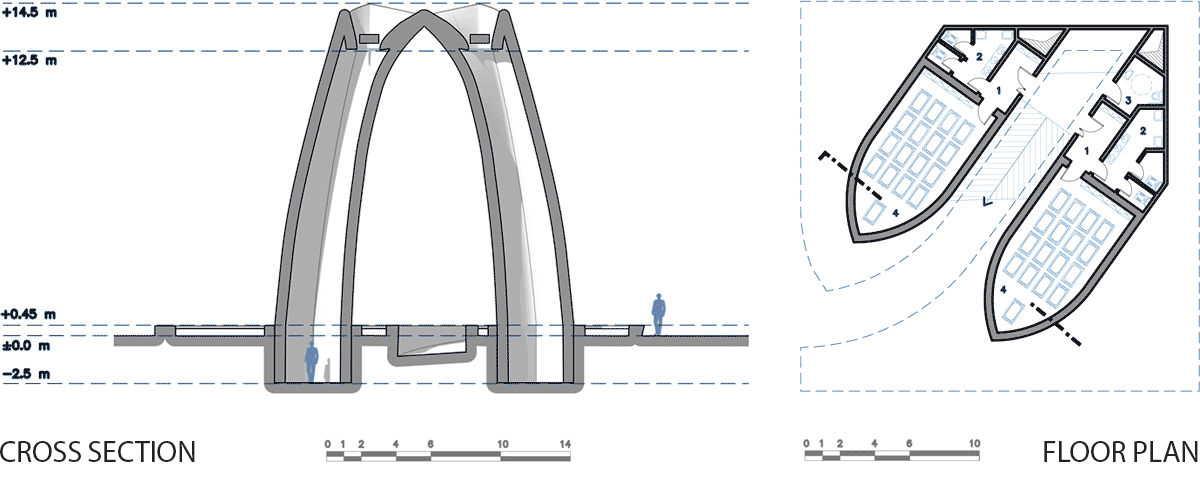

  • plan section

    Floor plan legend: 1.Locker Room Entrance, 2.Restrooms and Wudu Area, 3.Restrooms for Disabled, 4.Prayer Areas(Women, Men should be Separate)
